China filter suppliers of high quality and competitive price,recessed filter press for sale
With the common function of hydraulic closure & opening, add another new design---plate shifter device, when a cycle finish and cake formation. it will help to discharge the cake automatically.
Together with other available automatic device for your choosing.
1. Automatic cloth cleaning system
2. Automatic vibration device
3.Automatic boob door system

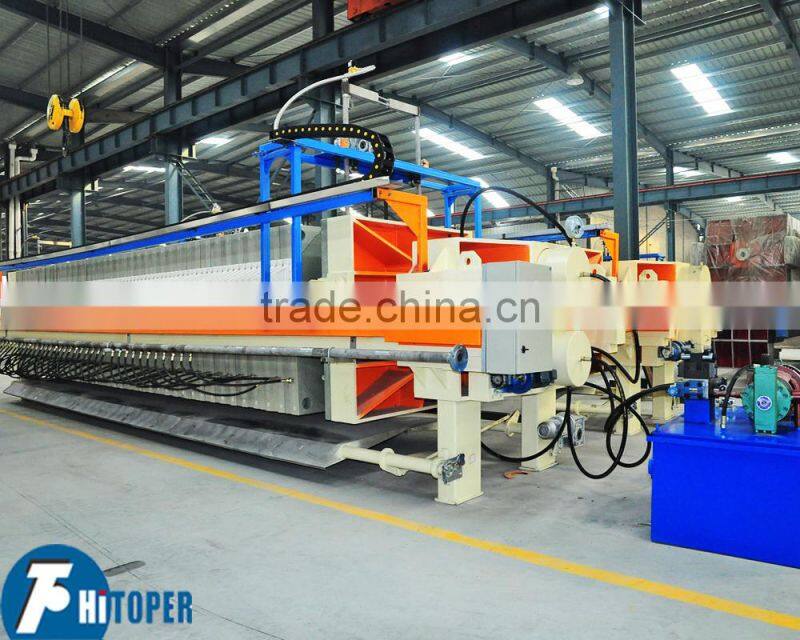

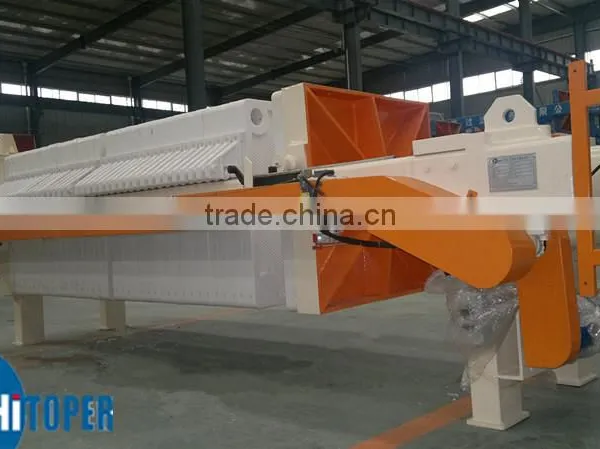

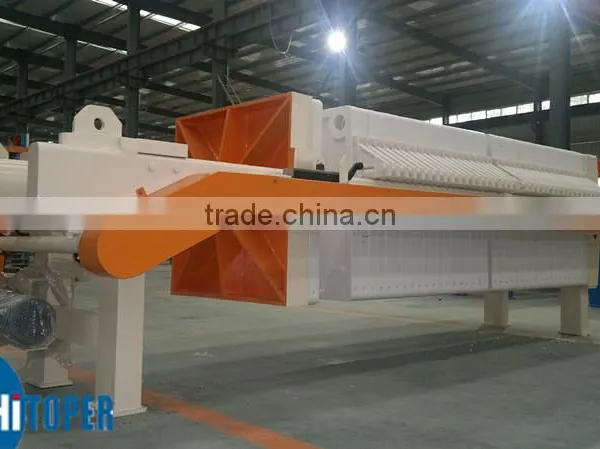

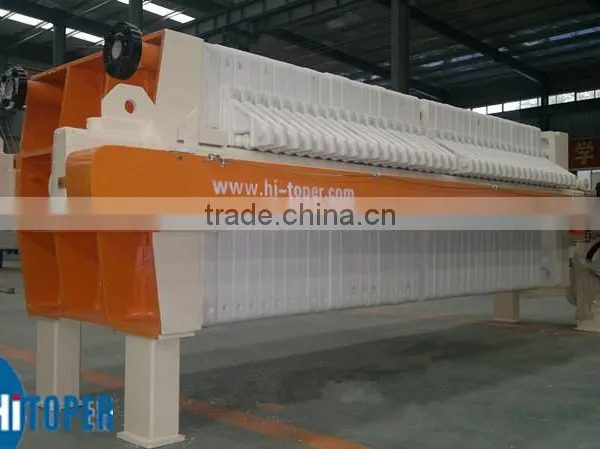

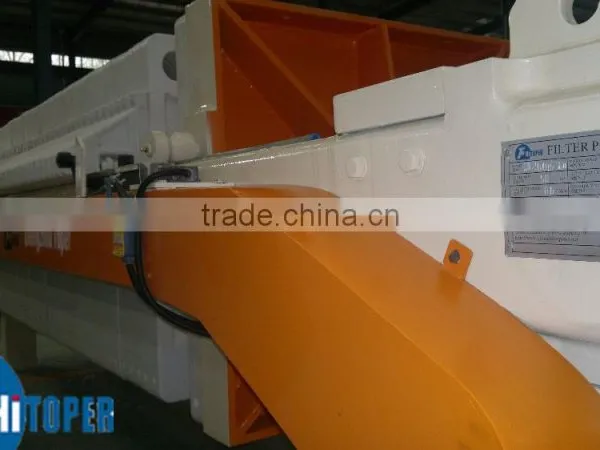

This automatically pull plate filter press is the recessed chamber one with center feeding. It consists of beam,
filter plate, filter cloths, hydraulic unit and electric control cabinet.
1. Beam, High quality carbon steel Q345B and processed with sand blasting to remove rust and oxide skin,
then painted by epoxy primer to get higher intensity and corrosion resistance.
2. Filter plate, Polypropylene(PP) with acid & alkali resistance, anticorrosion, innocuity, tasteless, light weight and high strength.
3. Filter cloths, High quality polypropylene acid and alkali proof or high quality polyester acid.
4. Hydraulic unit, China brand famous pumps and hydraulic valve; Carbon steel bending welding, sealing,
air filtration external oil pump, cooling effect is good, maintenance is convenient; High and low pressure
oil pipe for gb soft connection
5. Electric control cabinet, PLC control cabinet with Siemens brand or schneider brand Electrical
components, Split type or can be fixed on the beam.

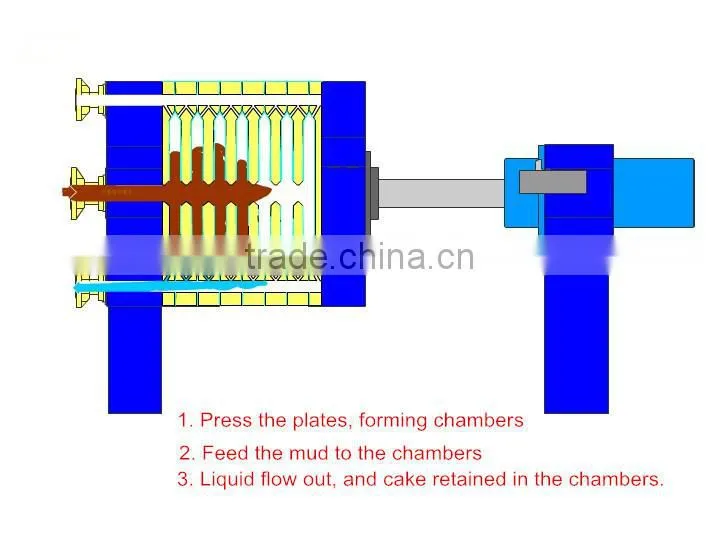

Operation process includes the following,
1. The hydraulic unit drive the head plate to press the middle plates and filter cloth between head plate
and tail plate. And chambers form between every two plates.

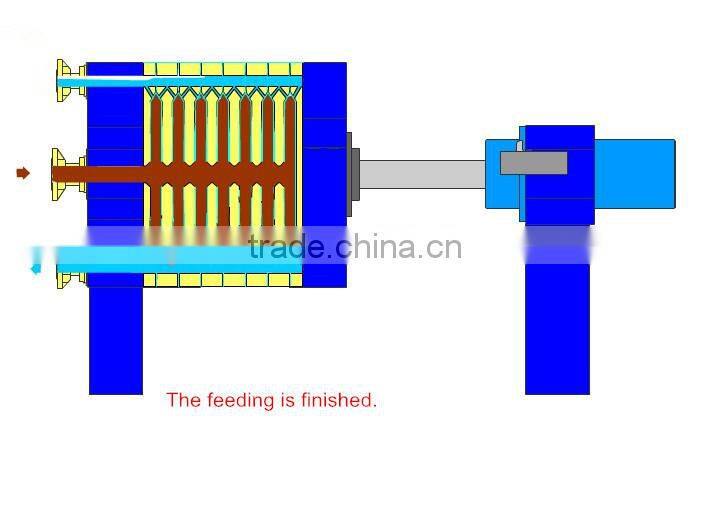

2. The pump will deliver the mud into the chambers. Solids retainled in the chamber to be cake, and
liquid flow out. Until the cakes is full. Then pump stops.
3. With about 10 minutes pressure holding. When you see there is no liquid flow it, the squeezing
process finishs.

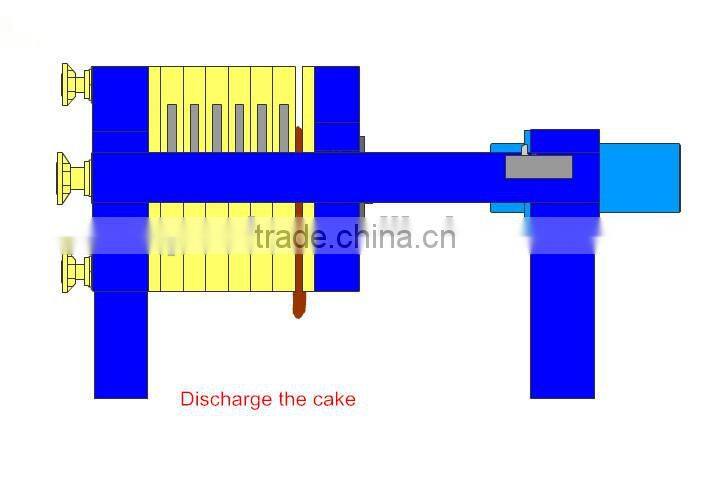

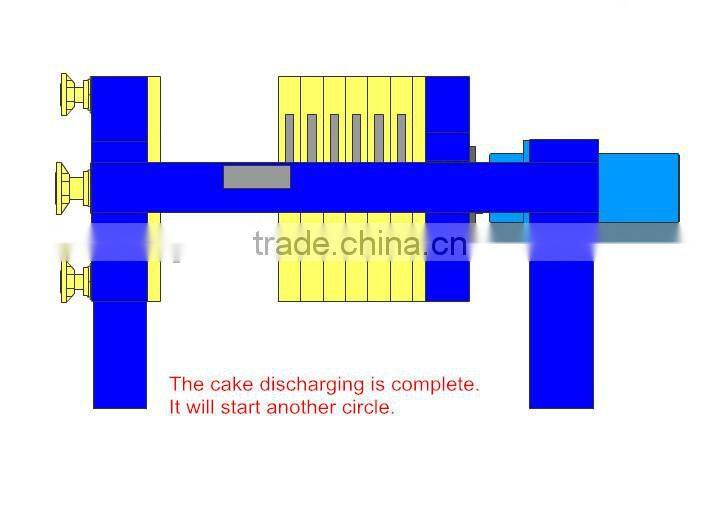

4. The plate shifter device will help to pull the plates one by one, and cake will discharge automatically.
All types technical parameters.

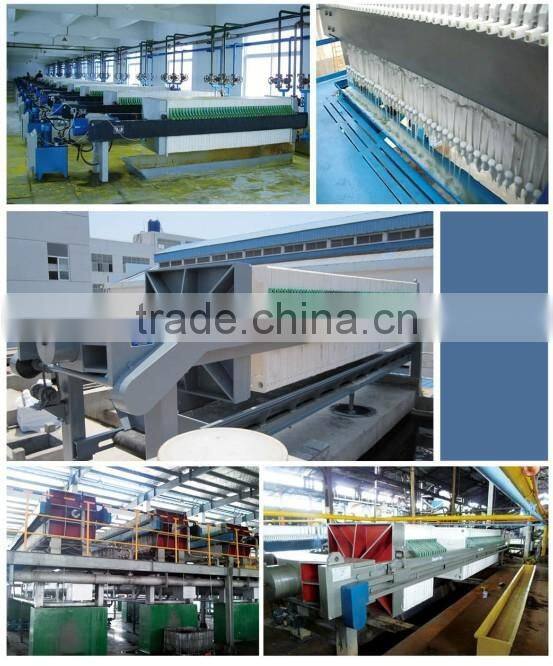

Automatically pull plate filter press is widely used in coal washing, inorganic, mining, alcohol, petroleum,
metallurgy, chemicals, fuel, medicine, food, textile, printing, dyeing, paper making, sewage treatment
and other fields.
Why choose us

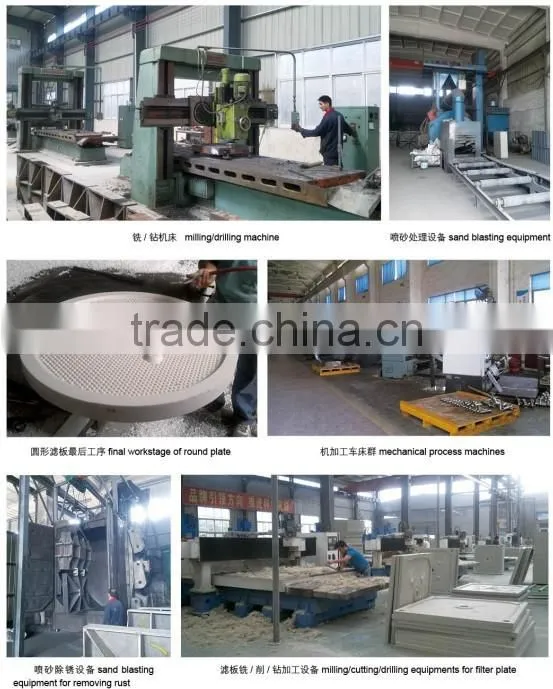

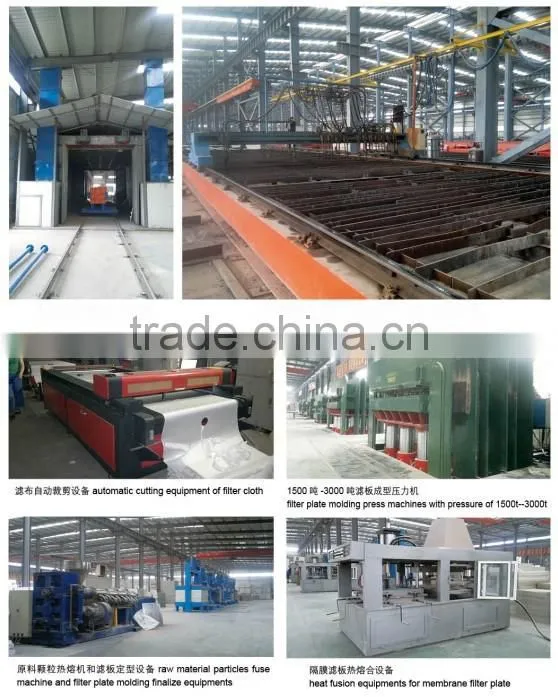

1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation
equipment. We are specialized in design of the filter press according to clients’ requirments, the
delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate,
also they will be tested before delivery.

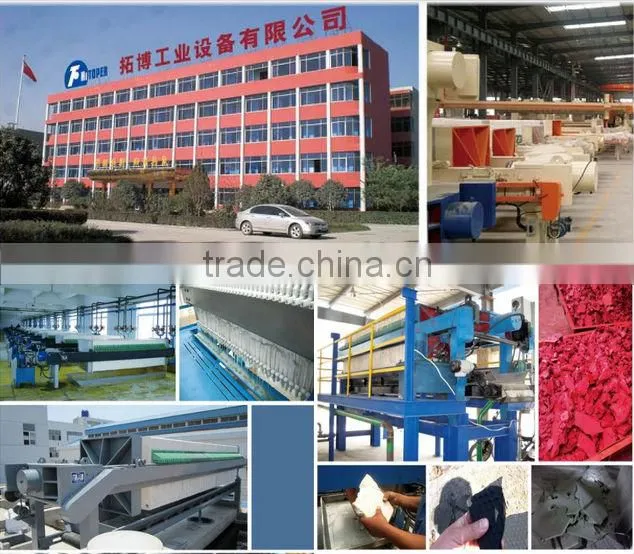

3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue
developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right
type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve
your problems on the basis of no influence of your equipment working.

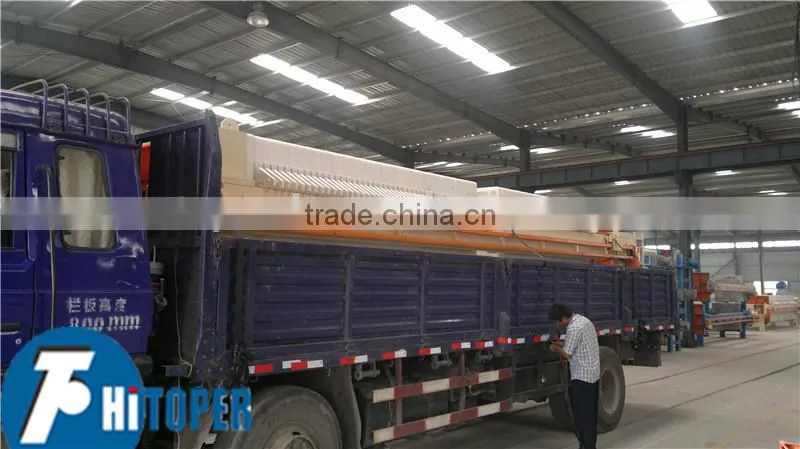

We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory
4.We can also send our technical engineer to your country guide the installation, debugging ,solve problems and so on if required .
All of our products
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
How to order filter press
According to your material property, processing capacity, solid content, we will give you a best suitable
type filter press, like XZ30/870-30U, xz100/1000-30U or others.
2. Together with specific requirments, select a right flow type(open or close), washable or non-washable filter plate, suitable voltage in your country.
3. The feeding pump is not included in the main machine, and if you need, let me know, we can
help you to purchase it from our partner company.
