membrane filter press

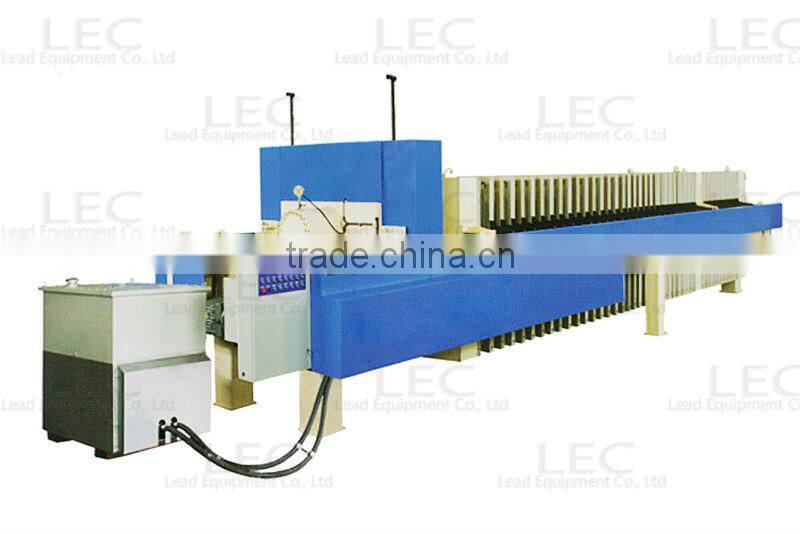

1600mm quick-operating PLC automatic high pressure membrane filter press
Features of membrane filter press :
Automatic high-pressure membrane squeezing
- Automatic filter cloth washing
- Automatic filtrate collecting and plate-reversing
- Multiple material feeding
- Plate drawing by grouping
- Automatic open and close of valves
- Automatic startup and stop the pumps
- Multiple pressure detection and temperature controlling
- Safety Light Curtains
- Over temperature alarm.
- Over pressure alarm
Data sheet.
1600mm quick-operating PLC automatic high pressure membrane filter press | |
Model | KMZG/1600-40U |
Filtrate area | 150-300 m2 |
Plate size | 1600 mm |
Cake thickness | 40 mm |
Plate No.(Plate) | 15-33 pcs |
Plate No.(membrane) | 17-35 pcs |
Chamber vol. | 1980-6200 L |
Filtrate pressure | 0.6 Mpa |
Charge pressure | 0.8 Mpa |
Oil cylinder pressure | 20 Mpa |
Stroke | 650 mm |
Dimension | 14500*3200*2960 mm3 |
Weight | 40000 kg |

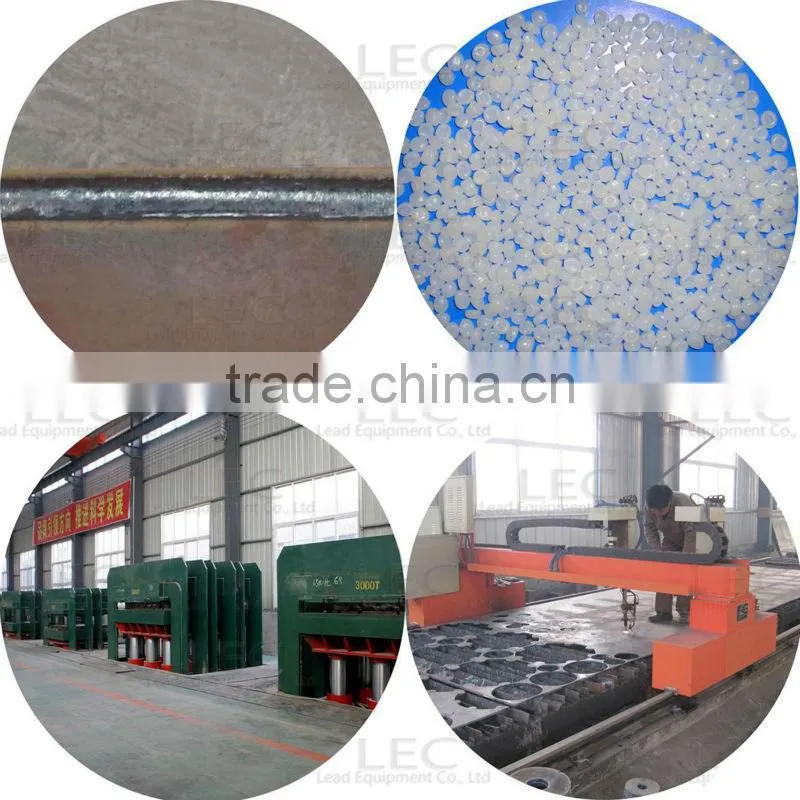

Process details of automatic membrane filter press

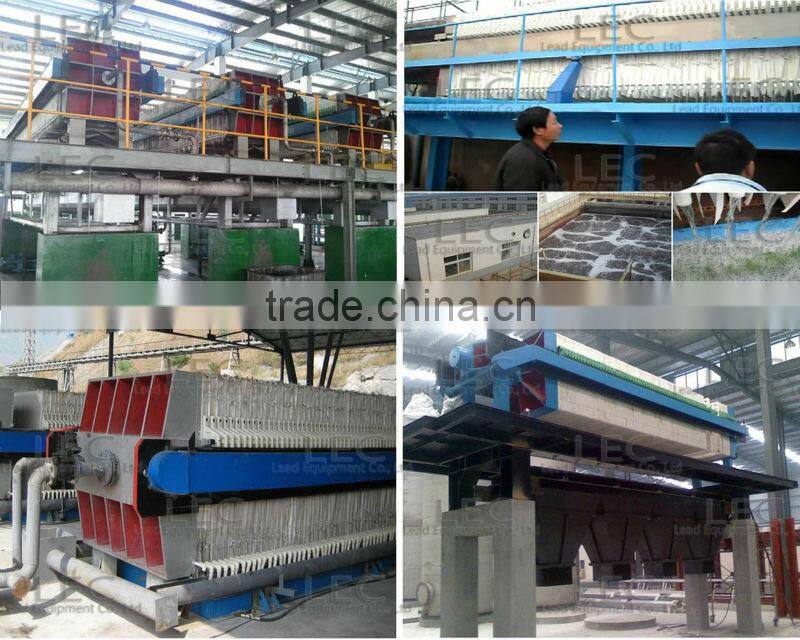

Application of automatic membrane filter press

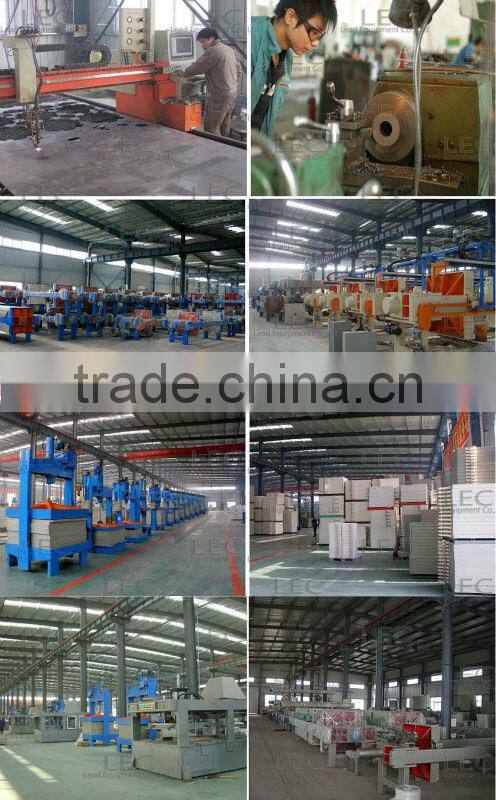

Factory

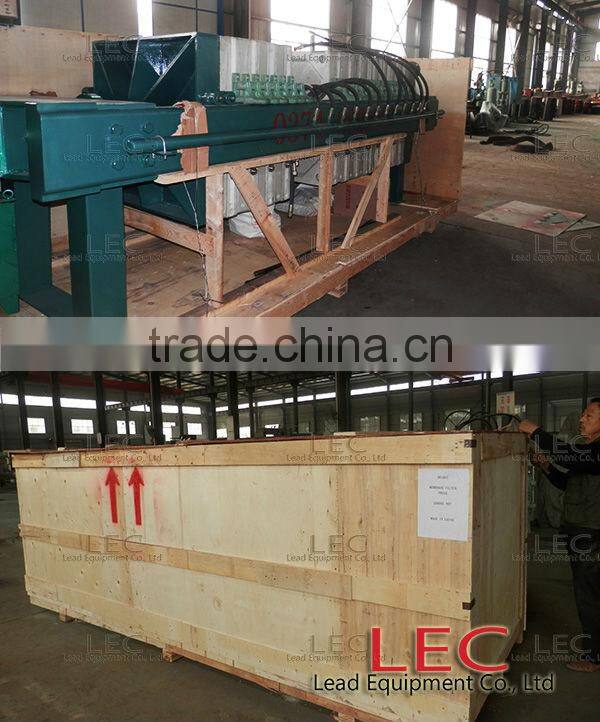

Export Packaging of automatic membrane filter press

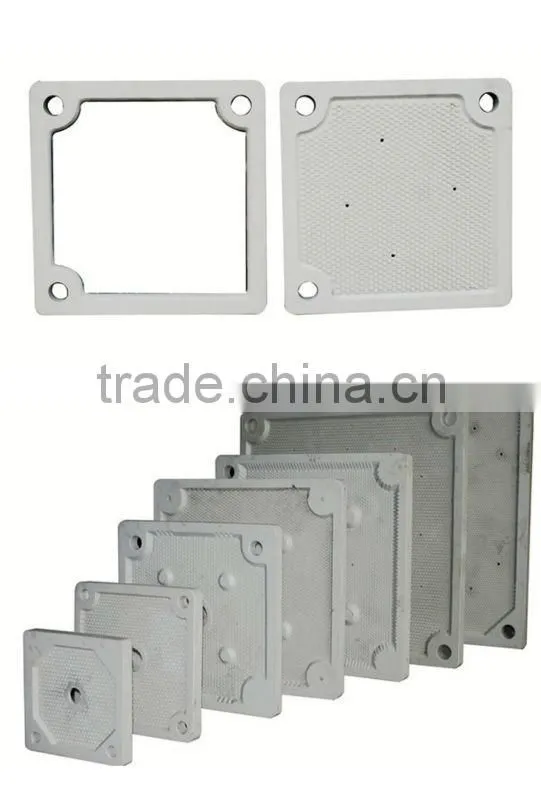

membrane filter plate

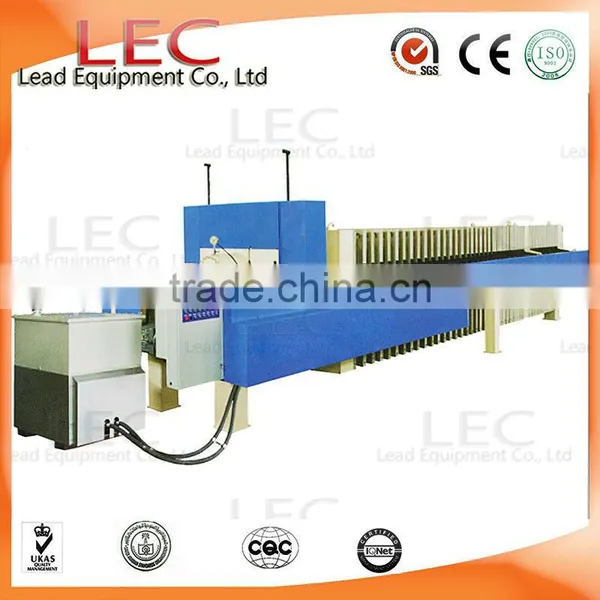

our certification
