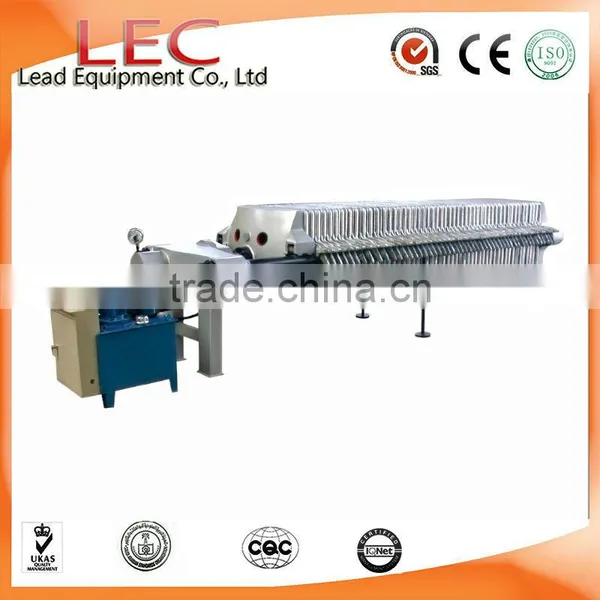

oil hydraulic filter press machine
PLC hydraulic oil hydraulic filter press machine
♦Simple mechanical construction:
The automatic dewatering filter press is a heavy duty machine, developed for filtration of
• metallic minerals
• industrial minerals
• coal and tailings.
♦Smart fully automatic contrl system
♦High unit capacity
♦Low dewatering cost with the membrane technology
♦Low maintenance cost
♣Main benefits:
• Lightweight polypropylene filter plates are mounted on a bolted steel frame and are moved by hydraulic cylinders.
• Adjacent "filter and compression" plates form a filtration chamber, the filter cloths hang between each pair of plates.
• By mounting the filter on a load cell system the filtration cycle is monitored and controlled.
• Chamber are center feeding for optimum filling.
• Openings for pulp, water and air are generously dimensioned to reduce energy losses and wear
• Service and maintenance requirements are low, the design facilitates easy cloth changing.
• Air blow pressure 5~8bar(73~116psi)
• Membrane pressure 6~9 bar (87~131psi)

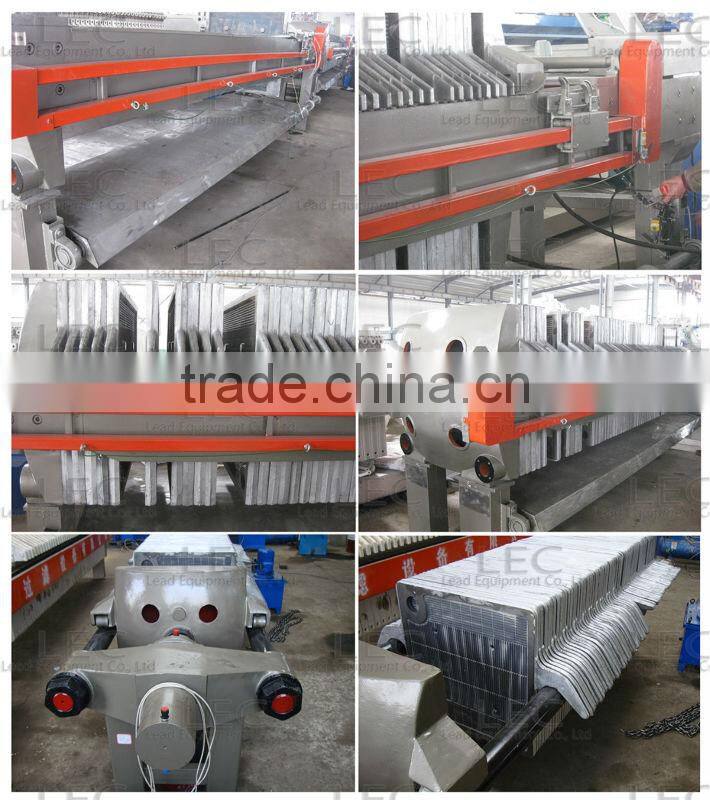

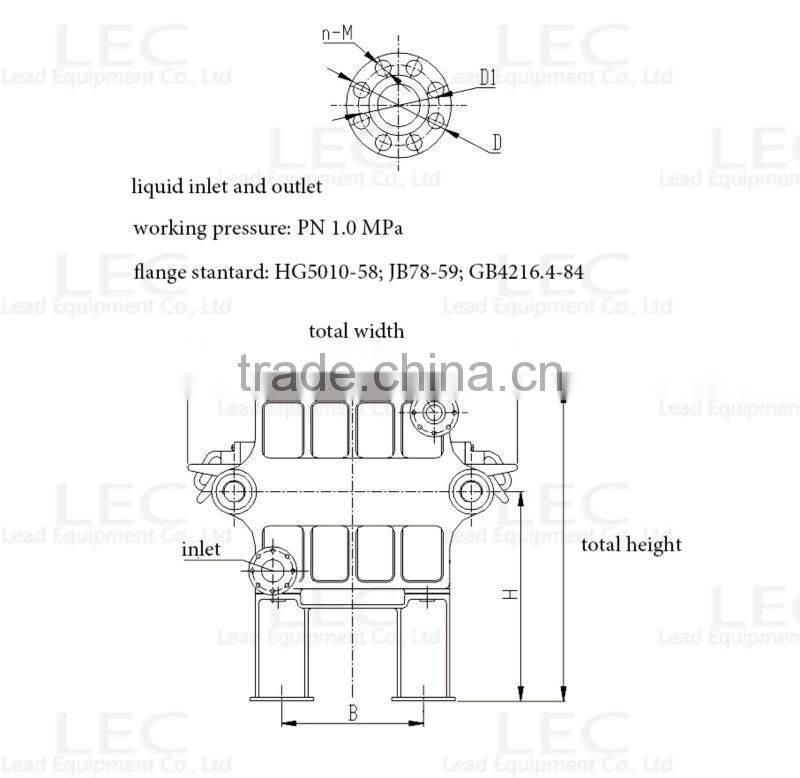

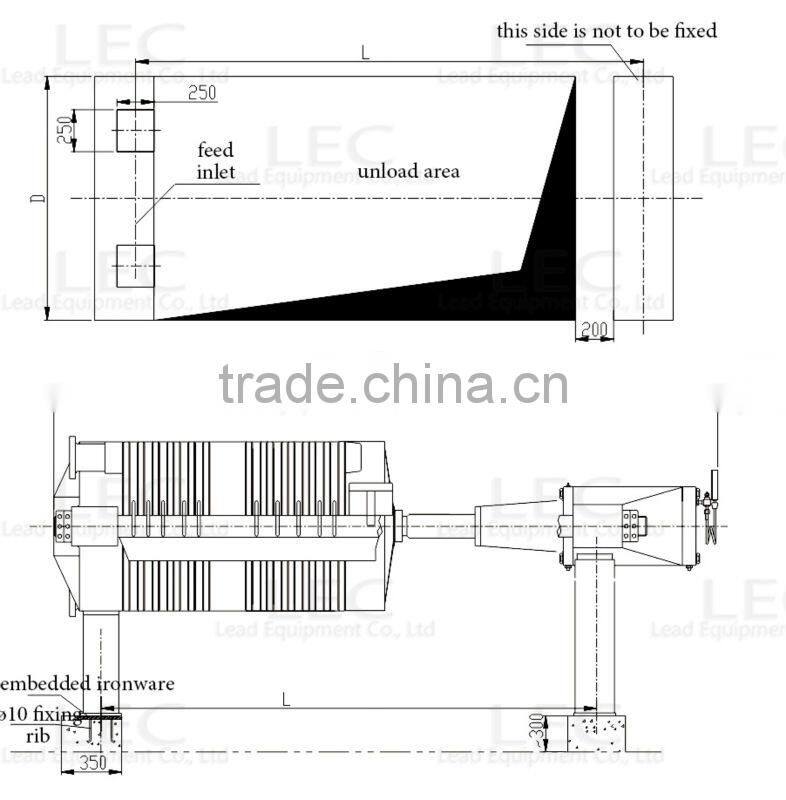

structure of oil hydraulic filter press machine

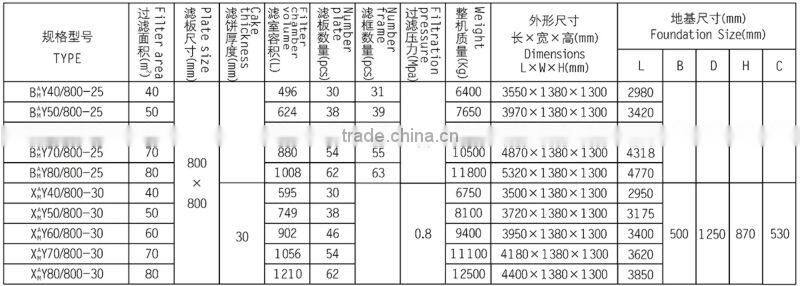

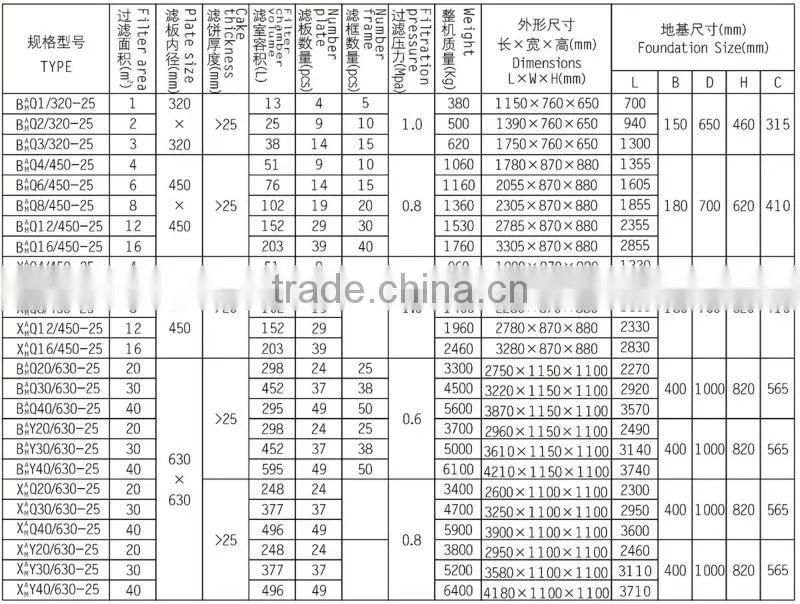

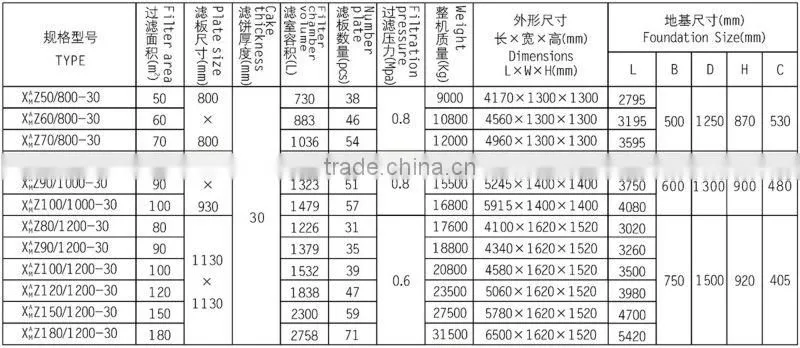

technical data of oil hydraulic filter press machine
800-1200 Fully Automatic Van type
320/450/630 Plate type, Van type
800 Plate type, Van type

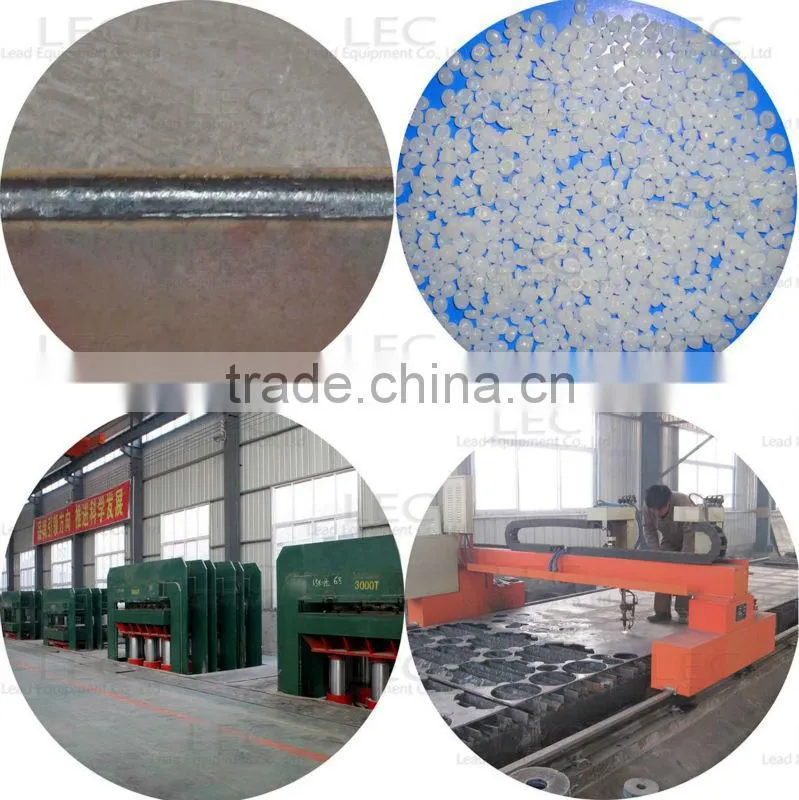

our factory

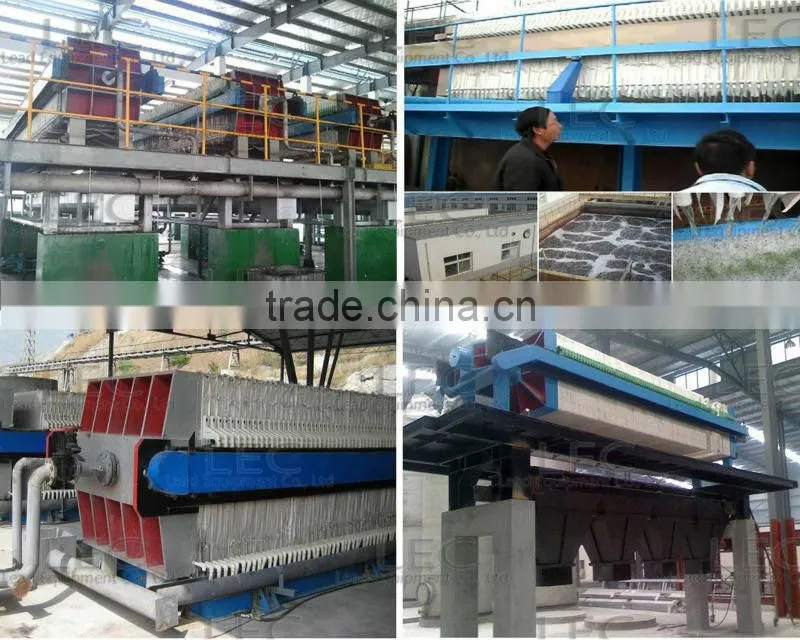

working occasion
export packaging
our certification
