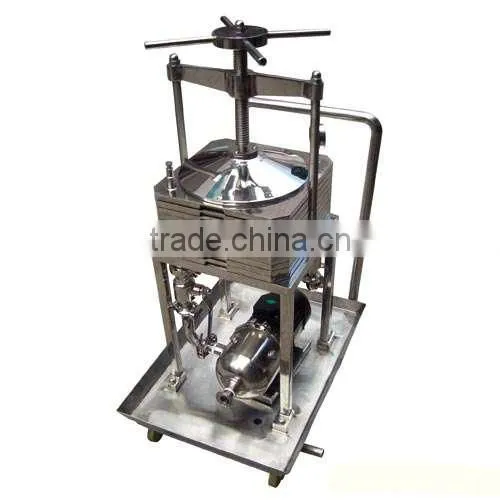

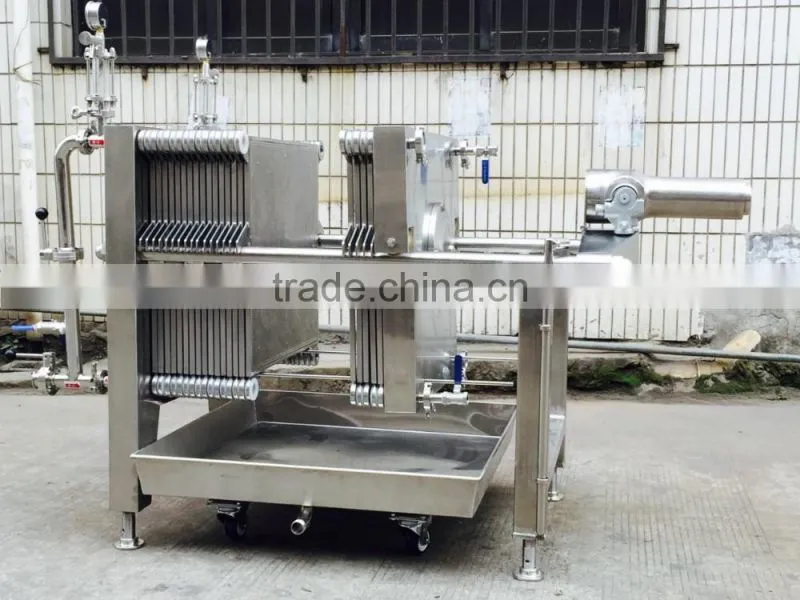

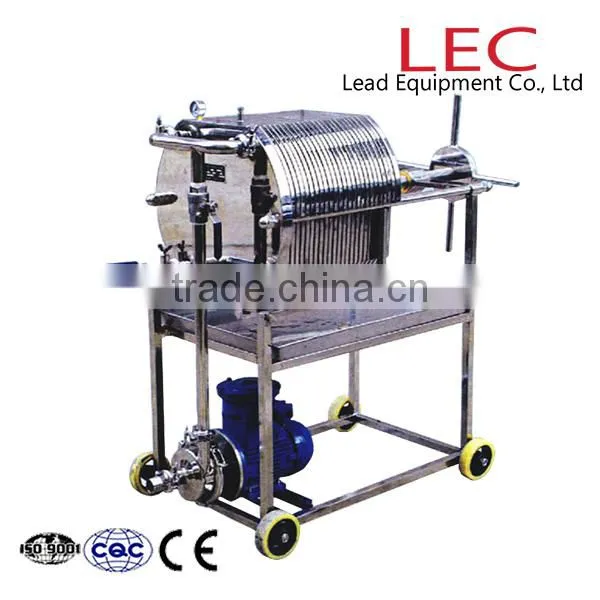

Help CenterSmall Multi-Layer Stainless Steel Filter Press
Related Products
-
PLC Hydraulic Oil Hydraulic Filter Press MachineUS$ 12,000 - 35,200MOQ: 1 Set -
Small Multi-Layer Stainless Steel Wine Electroplating Filter PressUS$ 1,300 - 1,900MOQ: 1 Set
-
Good Performance High Precision Filter Press/filtro Prensa/Solid and Liquid Separation MachineUS$ 8,000 - 20,000MOQ: 1 Set
-
Chamber Hydraulic Membrane Filter PressUS$ 8,625 - 9,681MOQ: 1 Set
-
Slaughter House Sludge Dewatering Filter Press EquipmentUS$ 25,600 - 36,596MOQ: 1 Set
Advantages:
1. full stainless steel
2. corrosion-resistant durability
3. Flexible application
4. high temperature, non-toxic, no leakage, good sealing performance
Design feature
S.S. Multilayer filter is for fine filtering. Its surface is polished, has seals, and normally used together with S.S. feeding pump, so it’s normally used for following industries: laboratory, fine chemicals, medicine, food, chemical, etc..
Working principle
The suspended solution is pumped into filter chamber, under the feeding pressure, the filter pass through the filter media and then discharged from the outlet. The solid will becomes to filter cakes. Thus realize solid liquid separation.
Features:
The filter is made of S.S. 304 or S.S. 316L, which are features of corrosion-resistant and long life-span. The filter plates use screw thread structure. It can change filtering media (if uses filter membrane, it can even remove the bacteria.) according to your material and your technical requirements (primary filtration/medial fine filtration/ fine filtration). The layers can be added or decreased to your actual capacity. the filter works under pressure without leakage and the filtrate is very clean. It can be used ad multilevel filtering devices: the first level uses rough filtering media. The second level can use fine media, so that it can improve the filtering effect and efficiency. All seals are made of silica rubber, which can endure high temperature and no toxicity, no leakage. The automatic flow returning device also can be customized according to your needs. When pump stops, open the return valve, all sediment will be discharged automatically (beside have the air discharging function), and at the same time, it will be backwashed by clean water via the return pipe. It’s very easy for operation.
Technical Data electroplating filter :
Item |
Description |
Layer |
10 |
Filtering area |
0.34 m² |
Filter size |
200 mm |
Filter media |
0.8 um |
Filter pressure |
0.15 Mpa |
Water flow |
2 t/h |
Motor power |
1.1 kw |
Weight |
25 kg |
Dimensions |
650x400x700 mm³ |
