BK5032E Price of Slotting Machine CNC Control Slotter Price High Quality

FOB Price

US$ 2,000 - 30,000 / Set

1 Set(Min. Order)

Port shenzhen
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangxi, China
Brand Name	xiashi	Model Number	BK5032E
Voltage	380V/50Hz	Power(W)	3KW
Dimension(LWH)	200015002500mm	Weight	2700KG
Certification	ISO CE	Warranty	1year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.Rated cutting force: 8KN

2.Max. Travel: 320mm

3.Taiwan ballscrew

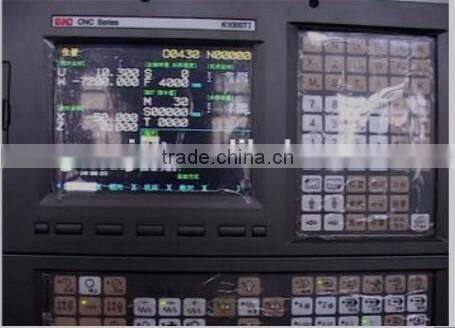

4.KND K2000 CNC system

Machine main function

1. It adopt mechanical transmission and stable working.

2. It’s easy operation with circulatory and adjustable working mode.

3. It adopt Taiwan ballscrew and KND K2000 CNC system to realize longitudinal,horizontal and rotary numerical control

Technical parameter

Specification	BK5032E	unit
CNC system	K2000
RAM travel	320	mm
Worktable longitudinal movement distance (X axis travel)	560	mm
Worktable horizontal movement distance	540	mm
Y axis rotation angle	0-360	°
Max. cutting force	8	KN
Distance from tool head support surface to front wall of machine bed	600	mm
Worktable diameter	630	mm
RAM angle of inclination	0-8	°
RAM vertical adjustable distance	370	mm
Distance from worktable surface to carriage bottom	455	mm
Install cutter edge size	25*40	mm
Worktable max. load capacity	500	kg
Worktable center T-slot width	18H8	mm
Main motor power	3	KW
Rapid motor power (about)	0.75	KW
Machine weight (about)	2700	kg
Overall dimension	2000×1500×2500	mm

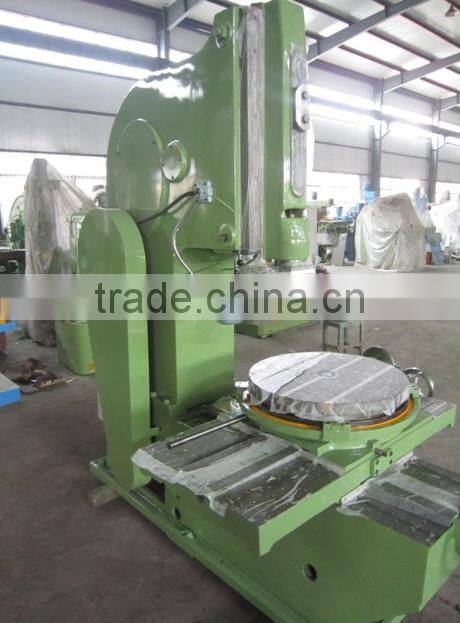

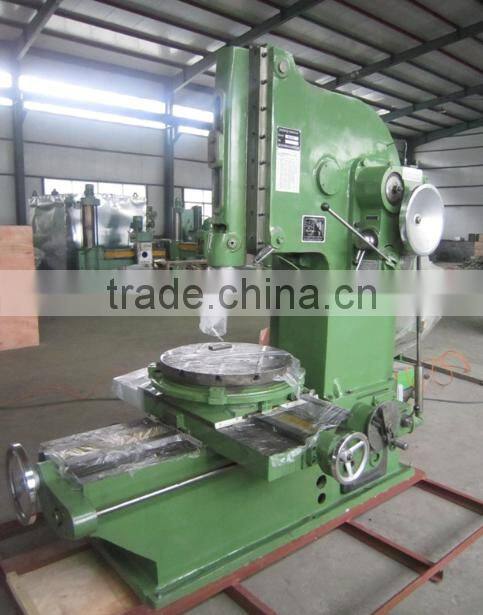

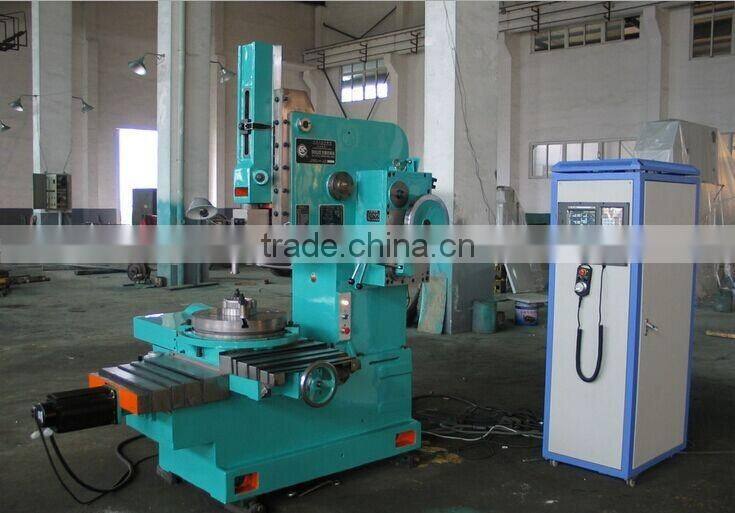

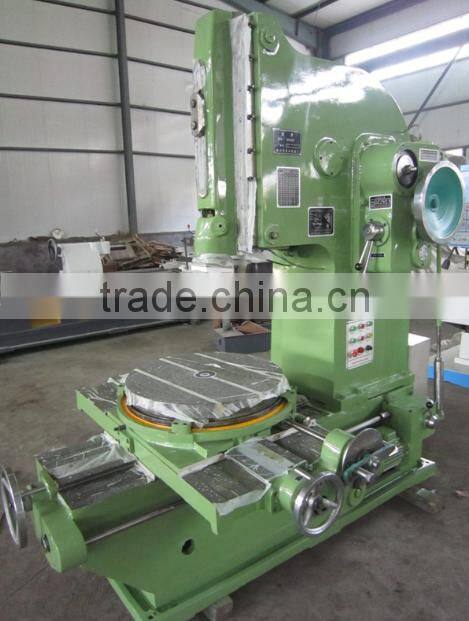

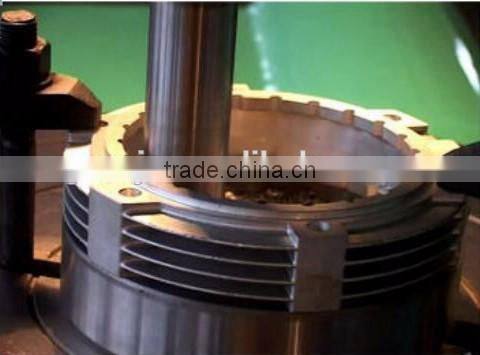

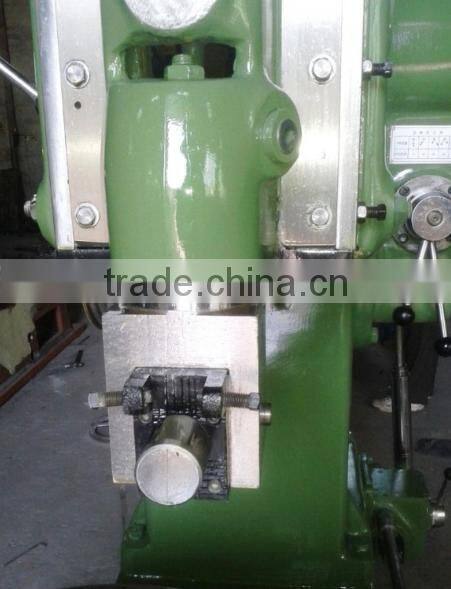

Detailed pictures for your reference

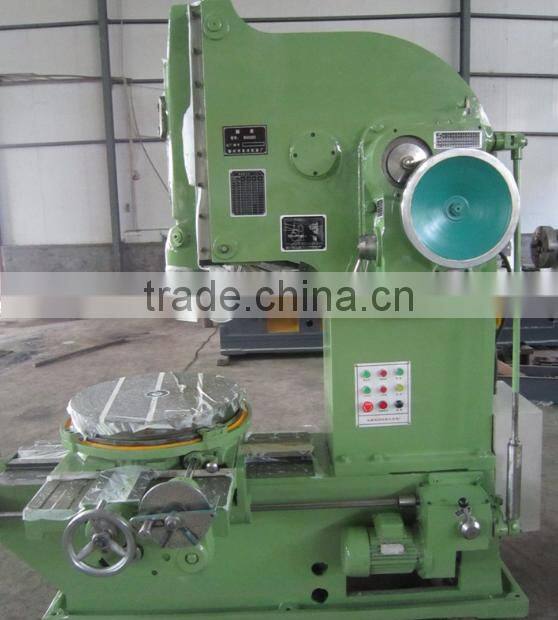

Other type Non-CNC Slotting machine

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
