Product Details
| Condition | New | Place of Origin | Guangxi, China | |
| Brand Name | xiashi | Model Number | L6102 | |
| Voltage | 380v | Power(W) | 5.5kw | |
| Dimension(L*W*H) | 3600*850*1200mm | Weight | 2000kg | |
| Certification | ISO | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Dependable Performance Horizontal internal broaching machines,broaching machine L6102 With low price
Introduction
This series machine is used broaching inner holes of various geometries shapes, high production efficiency, suitable for mass production and mass production.
This machine tools adopts hydraulic drive,works smoothly,is capable of stepless speed
regulations and is with overload protector.
It has functions of automatic cycling and separate jogging of main ntrolled by a chief button station,it is easy to operate.
Technical parameter
Model | L6102 | L6104 | L6106 |
Rated tension (KN) | 20 | 40 | 63 |
Max. Stroke (mm) | 200 | 600 | 800 |
Dimensions of disc chuck (mm) | Φ20 | Φ40 | Φ60 |
Work stroke speed(stepless speed regulation )(m/min) | 3-8 | 3-8 | 3-8 |
Returned stroke speed (stepless speed regulation )(m/min) | 3-9 | 3-9 | 3-16 |
Displacement (cm²/rev) | 22 | 22 | 62 |
Rated work pressure (Mpa) | 12 | 10 | 9 |
Main motor power (KW) | 5.5 | 7.5 | 11 |
overall dimensions(L×W×H)(mm) | 3600×850×1200 | 3800×850×1200 | 4200×850×1200 |
Net wight(Approx.) (KG) | 2000 | 2200 | 2500 |
Verticality of rear aoerture central line of test piece broaching to basic surface(mm) | 0.06/200mm | 0.06/200mm | 0.06/200mm |
Surface roughness of test piece broaching(Ra) | 1.6 ~3.2 | 1.6 ~3.2 | 1.6 ~3.2 |

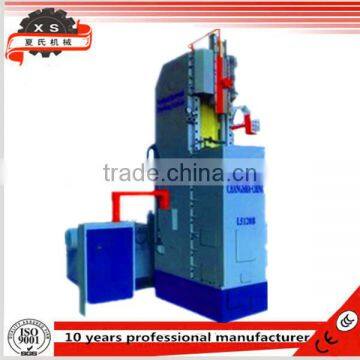

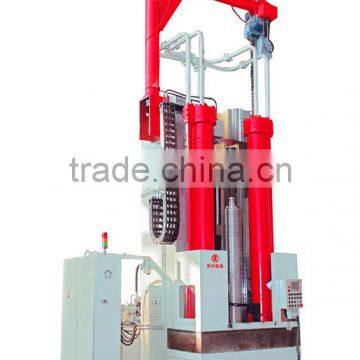

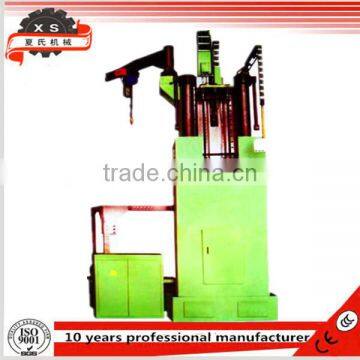

Detailed pictures for your reference
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
