BK5032E China Cnc Slotting Machine With High Quality
- shenzhen
- T/T D/P D/A Money Gram Credit Card
You May Like
-
BK5032E Slotting Machine From China Good Supplier Hot Sale Products
-
BK5032E Semi-automatic Slot Machine KND CNC Type High Precision Slotter Metal Machining
-
BK5032E Metal Slot Machines Price of Metal Working CNC Control Slotting
-
BK5032E High Precision Slotter Machine CNC Control for Cylinder Metal Processing CNC Slotting Machine
-
Dependable Performance Horizontal Internal Broaching Machines,broaching Machine FY840-A
-
High Precision Internal Broaching Machines,broaching Machine FY840-A For Sale
Product Details
| Condition | New | Place of Origin | Guangxi, China | |
| Brand Name | xiashi | Model Number | BK5032E | |
| Voltage | 380V/50Hz | Power(W) | 3KW | |
| Dimension(L*W*H) | 2000*1500*2500mm | Weight | 2700KG | |
| Certification | ISO CE | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Rated cutting force: 8KN
2.Max. Travel: 320mm
3.Taiwan ballscrew

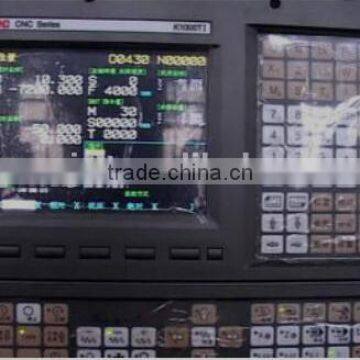

4.KND K2000 CNC system
Machine main function
1. It adopt mechanical transmission and stable working.
2. It’s easy operation with circulatory and adjustable working mode.
3. It adopt Taiwan ballscrew and KND K2000 CNC system to realize longitudinal,horizontal and rotary numerical control
Technical parameter
Specification | BK5032E | unit |
CNC system | K2000 |
|
RAM travel | 320 | mm |
Worktable longitudinal movement distance (X axis travel) | 560 | mm |
Worktable horizontal movement distance | 540 | mm |
Y axis rotation angle | 0-360 | ° |
Max. cutting force | 8 | KN |
Distance from tool head support surface to front wall of machine bed | 600 | mm |
Worktable diameter | 630 | mm |
RAM angle of inclination | 0-8 | ° |
RAM vertical adjustable distance | 370 | mm |
Distance from worktable surface to carriage bottom | 455 | mm |
Install cutter edge size | 25*40 | mm |
Worktable max. load capacity | 500 | kg |
Worktable center T-slot width | 18H8 | mm |
Main motor power | 3 | KW |
Rapid motor power (about) | 0.75 | KW |
Machine weight (about) | 2700 | kg |
Overall dimension | 2000×1500×2500 | mm |

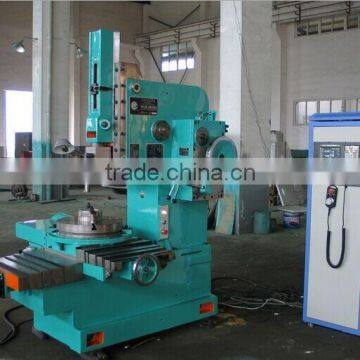

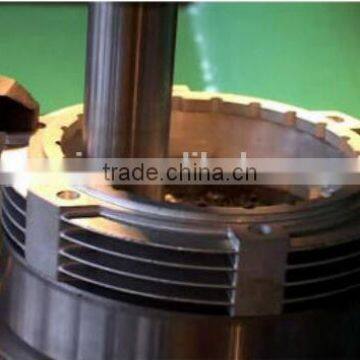

Detailed pictures for your reference
Other type Non-CNC Slotting machine
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
