Help CenterShaping Machine B6050
US$ 5,000 - 6,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
TIMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Henan, China
Brand Name
TIMAC
Model Number
B6050
Voltage
As Buyer's Request
Power(W)
3KW
Weight
1950KG
Warranty
12 months
Specifications
1. Shaping Machine;2. Max. plane length 500mm;
3. Table size: 480x360mm;

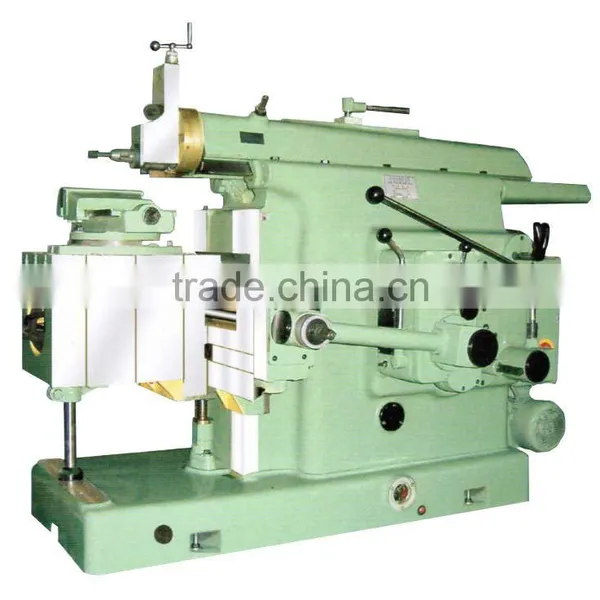

SHAPPING MACHINE B6050
Features:
1. This machine is designed for shaping plane and formed surfaces.
2. If used for shaping plane surfaces, T-slots and dovetail slots, etc.
3. On narrow and long workpieces, the machine will obtain much higher productivity.
4. With the equipment of a special vice or a dividing head, the machine can be send for processing the end surfaces and slots with equal distance on cylindrical or rectangular workpieces.
| Specification | B6050 | |
| Max. Shaping length | 500 mm | |
| Max. distance from lower edge of ram to table | 370 mm | |
| Max. travel of table | Horizontal | 500 mm |
| Vertical | 300 mm | |
| Max. swivel angle of table | Without vice | ±90° |
| With vice | ±50° | |
| Max. vertical travel of tool head | 110 mm | |
| Frequency of ram stroke | 15, 24, 37, 51, 64, 80, 102, 126, 158 times/min | |
| Table feed per ram stroke | ||
| Pawl riding over 1 ratchet tooth | Vertical | 0.0845 mm |
| Horizontal | 0.133 mm | |
| Pawl riding over 10 ratchet teeth | Vertical | 0.845 mm |
| Horizontal | 1.33 mm | |
| Motor | 3 kw, 1420 r/min | |
| Vice measurements (Width xDepth x Max. Opening) | 240x64x215 mm | |
| Overall dimensions (LXWXH) | 1943x1160x1533 mm | |
| Packing size (LXWXH) | 2150x1340x1470 mm | |
| Net weight | 1800 kg | |
| Gross weight | 2100 kg | |
