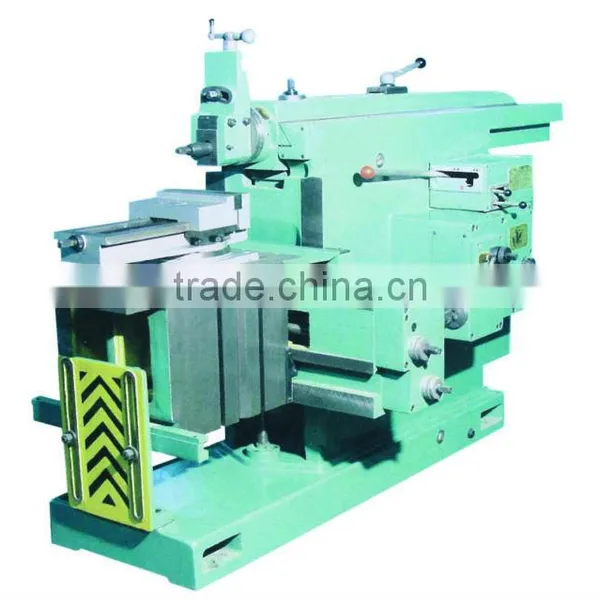

Help CenterSM-630 SHAPING MACHINE
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
TIMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
China port.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Henan, China
Brand Name
TIMAC
Model Number
SM-630
Voltage
As request
Power(W)
3kw
Certification
ISO, CE Standard
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1. Max. plane length 630mm;2. Table size: 630x400mm;
| Specification | Unit | SM-630 | |
| Max. planing length | mm | 630 | |
| Max. distance between ram bottom and worktable surface | mm | 385 | |
| Max. horizontal travel distance of worktable | mm | 630 | |
| Max. vertical travel distance of worktable | mm | 360 | |
| Worktable size | mm | 630x400 | |
| Travel of tool head | mm | 120 | |
| Number of ram strokes/min | mm | 14, 20, 28, 40, 56, 80 | |
| Range of table power speed | Horizontal | mm | 0.2-2.5 12steps |
| Vertical | mm | 0.08-1.00 12steps | |
| T-slot width | mm | 18 | |
| Main motor power | kw | 3 | |
| N.W/G.W | kg | 1750/1950 | |
Features:
1. The main cutting motion of the machine is linear motion being converted from circular motion of gears by link block mechanism.
2. With smooth transmission, short over run and less consume of power, the machine is easy to start and stop.
3. If being provided with a tool lifter, the machine table can obtain rapid motion in vertical and horizontal direction.
4. The machine, with pleasing appearance and stable accuracy, can be operated and maintained conveniently.
