Help CenterShaping Machine SM-700
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
TIMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Henan, China
Brand Name
TIMAC
Model Number
SM-700
Voltage
As Buyer's Request
Power(W)
4KW
Dimension(L*W*H)
2480x1400x1780
Weight
3300kg
Certification
ISO, CE
Warranty
12 months
After-sales Service Provided
Overseas third-party support available
Specifications
1. Shaping Machine;2. Max. plane length 700mm;
3. Table size: 700x420mm;

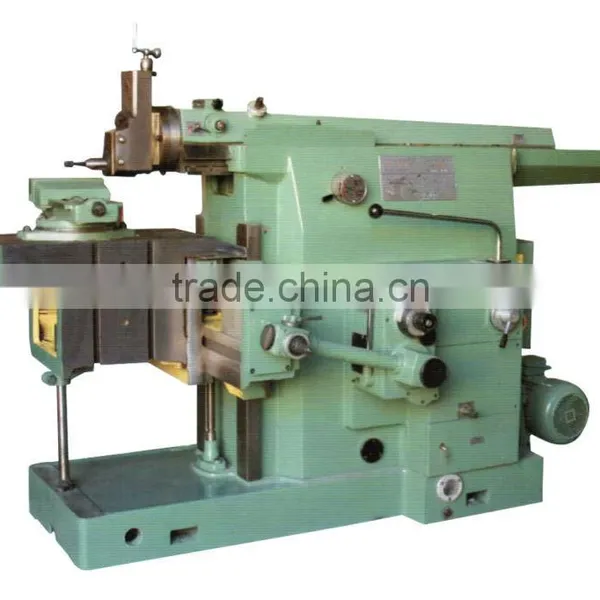

SHAPPING MACHINE SM-700
Features:
1. This machine is designed for shaping plane and formed surfaces.
2. High productivity can be obtained for shaping plane surfaces, T-slots and dovetail slots, etc. on narrow and long workpieces.
3. The ram mechanism of this machine adopts the guide unit with torsion-spring internally fixed. During the ram movement, the cutting tool can be adjusted to an arbitrary position.
4. The total closed cam-ratchet unit is employed in the feed mechanism and rapid travel mechanism of the table featuring change of feed amount without stopping the machine during cutting. A disk-type overload safety unit is used.
5. Owing to the adoption of swivel device with cam-curve groove, different speeds can be selected arbitrarily.
| Specification | SM-700 | |
| Max. Shaping length | 700 mm | |
| Max. distance from lower edge of ram to table | 420 mm | |
| Max. travel of table | Horizontal | 630 mm |
| Vertical | 320 mm | |
| Rapid travel of table | Horizontal | 0.75 m/min |
| Vertical | 0.34 m/min | |
| Max. vertical travel of tool head | 125 mm | |
| Frequency of ram stroke | 11, 20, 38, 52, 72, 100 times/min | |
| Table feed per ram stroke | ||
| Pawl riding over 1 ratchet tooth | Vertical | 0.07 mm |
| Horizontal | 0.15 mm | |
| Pawl riding over 10 ratchet teeth | Vertical | 0.68 mm |
| Horizontal | 1.5 mm | |
| Tool head(down) | 0-0.4 mm | |
| Tool lifting(linear speed) | <20m/min | |
| Motor | 4 kw, 960 r/min | |
| Vice measurements (Width x Depth x Max. Opening) | 240x64x215 mm | |
| Overall dimensions (LXWXH) | 2480x1400x1780 mm | |
| Packing size (LXWXH) | 2620x1620x1720 mm | |
| Net weight | 2700 kg | |
| Gross weight | 3300 kg | |
