Help CenterHigh Speed Shaping Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
B6050
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Brand Name
TIMAC
Model Number
B6050
Specifications

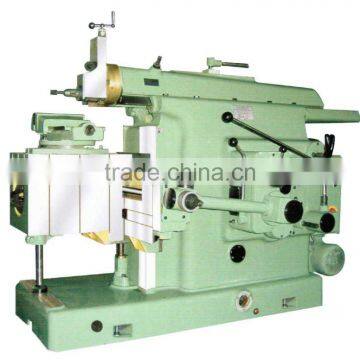

High speed shaping machineHigh Speed Shaping Machine
This mahine is designed for shaping plane and formed surfaces.
If used for shaping plane surfaces, T-slots and dovetail slots, etc.
On narrow and long workpieces, the machine will obtain much higher productivety.
With the equipment of a special vice or a dividing head, the machine can be send for processing the end surfaces and slots with equal distance on cylindrical or rectangular workpieces.
| Model | B6050 | |
| Max. Shaping length | 500 mm | |
| Max. distance from lower edge of ram to table | 370 mm | |
| Max. travel of table | Horizontal | 500 mm |
| Vertical | 300 mm | |
| Max. swivel angle of table | Without vice | ±90° |
| With vice | ±50° | |
| Max. vertical travel of tool head | 110 mm | |
| Frequency of ram stroke | 15, 24, 37, 51, 64, 80, 102, 126, 158 times/min | |
| Table feed per ram stroke | ||
| Pawl riding over 1 ratchet tooth | Vertical | 0.0845 mm |
| Horizontal | 0.133 mm | |
| Pawl riding over 10 ratchet teeth | Vertical | 0.845 mm |
| Horizontal | 1.33 mm | |
| Motor | 3 kw, 1420 r/min | |
| Vice measurements (Width xDepth xMax. Opening) | 240x64x215 mm | |
| Overall dimensions (LXWXH) | 1943x1160x1533 mm | |
| Packing size (LXWXH) | 2150x1340x1470 mm | |
| Net weight | 1800 kg | |
| Gross weight | 2100 kg | |
