Specifications
The machine is designed for cutting flat and fomed surfaces on various kinds of small or medium sized workpiece.Specifications
Shaping machine B6050
Used for shaping plan and formed surfaces,
shaping plane surface, T-slot and dovetail slot

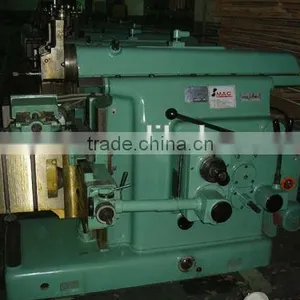

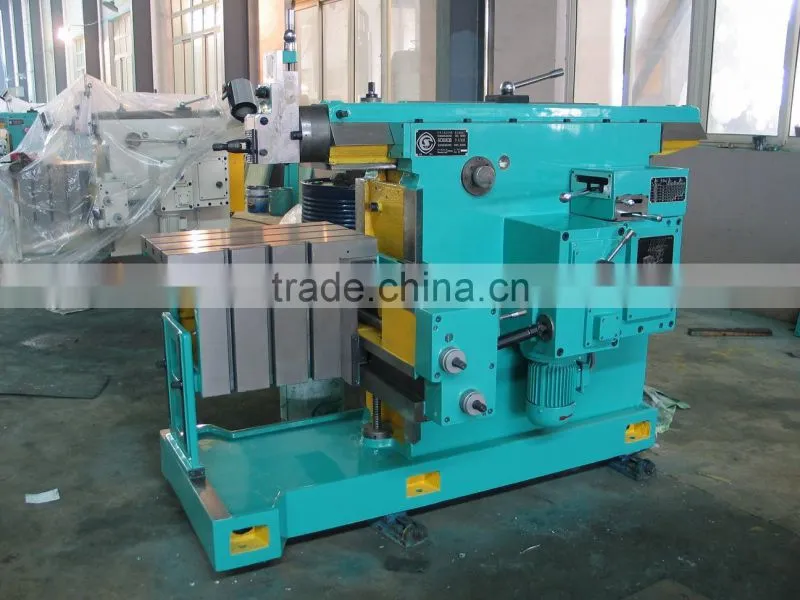

SHAPING MACHINE B6050
Designed for shaping planes and formed surfaces, If used for shaping plane surface, T-slot and dovetail slots on narrow and long workpieces, the machine will obtain much higher productivity. With special equipment of vice or deviding head, Machine can also produce end surfaces and slots with equal distance on cylindrical or rectangular surfaces.
Model |
|
B6050 |
Max. shaping length |
|
500 mm |
Max. distance from lower edge of ram to table |
|
370 mm |
Max. travel of table |
Horiazontal |
500 mm |
Vertical |
300 mm |
|
Max. swivel angle of table |
Without vice |
±90° |
With vice |
±50° |
|
Max. vertical travel of tool head |
|
110 mm |
Frequency of ram strokes |
|
15,24,37,51,64,80, |
Table feed per ram stroke |
|
|
Pawl riding over 1 ratchet tooth |
Horiazontal |
0.0845 mm |
Vertical |
0.133 mm |
|
Pawl riding over 10 ratchet tooth |
Horiazontal |
0.845 mm |
Vertical |
1.33 mm |
|
Motor |
|
3kW1420 r/min |
Vice measurements (L* W* Max. opening) |
|
240*64*215 mm |
Overall dimensions(L*W*H) |
|
1943*1160*1533 mm |
