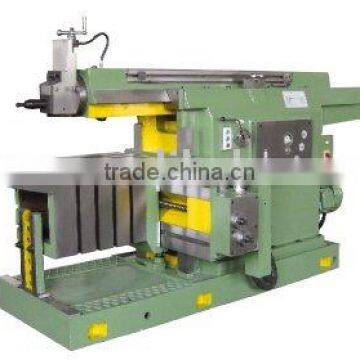

Hydraulic shaping mahineHydraulic shaping mahine
The machine is used in planing a variety of plane & forming plane, and it is suitable for single and small batch production.
Heat treatment technics such as tempering, vibration aging, induction quenching and so on adopted on key parts like bed enable more stable accuracy and longer working life.
Main cutting movement and feeding movement are realised hydraulically, which is infinitely variable, and is with hydraulic overload protection device. So advantages as smooth turning, little overrun, flexible & reliable start/stop, high rigidity, strong cutting force, high reversion precision, low oil temperature, little thermal deformation and stable precision could apply to continuous strong cutting work.
The table moves rapidly in both horizontal and vertical direction, the tool post is with auto tool lifter, the handles collect, so the machine is with easy operation & advanced automation.
| Model | SM-650H | SM-800H | SM-1000HC | SM-1250H |
| Max.shaping length | 650 mm | 800 mm | 1000 mm | 1250 mm |
| Cutting speed of ram(stepless) | 2-24 m/min | 2-24 m/min | 3-44 m/min | 3-44 m/min |
| Distance from lower edge of ram to upper surface of table | 350 mm | 350 mm | 80-400 mm | 80-400 mm |
| Max.cutting force | 15000N | 15000N | 28000N | 28000N |
| Max.travel of tool post | 160 mm | 150 mm | 160 mm | 160 mm |
| Max.sectional area of tool(W x H) | 22 x 30 mm | 22 x 30 mm | 30 x 45 mm | 30 x 45 mm |
| Upper working surface of table(L x W) | 650 x 400 mm | 800 x 400 mm | 1000 x 500 mm | 1250 x 500 mm |
| T-slot width of upper table surface | 18 mm | 18 mm | 22 mm | 22 mm |
| Max.horizontal travel of table | 600 mm | 600 mm | 800 mm | 800 mm |
| Horizontal table feed (per reciorocating stroke of ram, stepless) | 0.25-3 mm | 0.25-3 mm | 0.25-5 mm | 0.25-5 mm |
| Main motor | 4 kw | 4 kw | 7.5 kw | 7.5 kw |
| Motor for rapid table movement | 0.75 kw | 0.75 kw | 0.75 kw | 0.75 kw |
| Overall dimensions(L x W x H) | 2470 x 1350 x 1500 mm | 2770 x 1350 x 1500 mm | 3615 x 1574 x 1760 mm | 3615 x 1574 x 1760 mm |
| Net weight(approx.) | 2500 kg | 2600 kg | 4200 kg | 5000 kg |
