High-speed shaping machineSuitable for shaping plane and formed surfaces

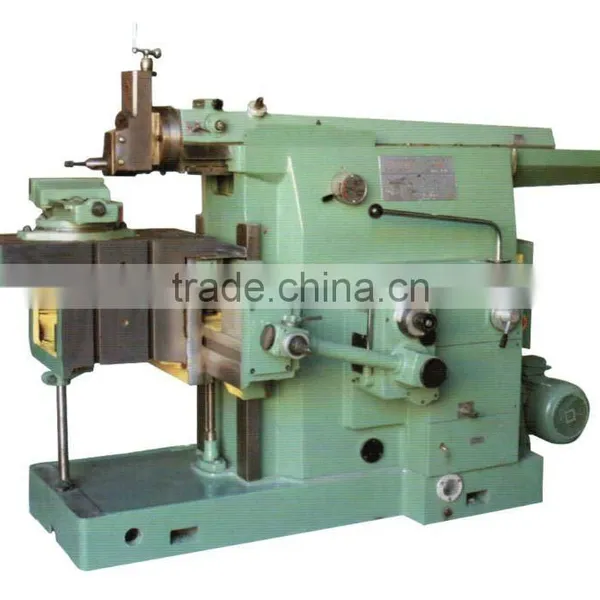

High-speed Shaping Machine
This High-speed Shaping Machine is suitable for shaping plane and formed surfaces.
High productivity can be obtained for shaping plane surface, T-slot and dovetail slots, etc, on narrow and long workpieces.
The ram mechanism of this machine adopts the guide unit with torsion-spring internally fixed. During the ram movement the cutting tool can adjusted to an arbitrary position.
The total closed cam-ratchet unit is employed in the feed mechanism and rapid travel mechanism of the table featuring change of feed amounts without stopping the machine during cutting. A disk-type overload safety unit is used.
Owing to the adoption of swivel device with cam-curve groove different speeds can be selected arbitrarily.
| Model | B6070 | |
| Max. Shaping length | 700 mm | |
| Max. distance from lower edge of ram to table | 420 mm | |
| Max. travel of table | Horizontal | 630 mm |
| Vertical | 320 mm | |
| Rapid travel of table | Horizontal | 0.75 m/min |
| Vertical | 0.34 m/min | |
| Max. vertical travel of tool head | 125 mm | |
| Frequency of ram stroke | 11, 20, 38, 52, 72, 100 times/min | |
| Table feed per ram stroke | ||
| Table:Pawl riding over 1 ratchet tooth | Vertical | 0.07 mm |
| Horizontal | 0.15 mm | |
| Pawl riding over 10 ratchet teeth | Vertical | 0.68 mm |
| Horizontal | 1.5 mm | |
| Tool head (down) | 0-0.4 mm | |
| Tool lifting (linear speed) | <20 m/min | |
| Motor | 4 kw, 960 r/min | |
| Vice measurements (Width xDepth xMax. Opening) | 240x64x215 mm | |
| Overall dimensions (LXWXH) | 2480x1400x1780 mm | |
| Packing size (LXWXH) | 2620x1620x1720 mm | |
| Net weight | 2700 kg | |
| Gross weight | 3300 kg | |
