Horizontal Moving Head Hydraulic Shaping Machine

Name: Horizontal Moving Head Hydraulic Shaping Machine
Brand: TIMAC
SKU: 140797910
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 10,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

SMY-1220

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number SMY-1220

Voltage 380V/50HZ

Power(W) 7.5kw(main motor)

Dimension(L*W*H) 3605*3400*2605mm

Weight 8400kg

Certification CE ISO9001

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

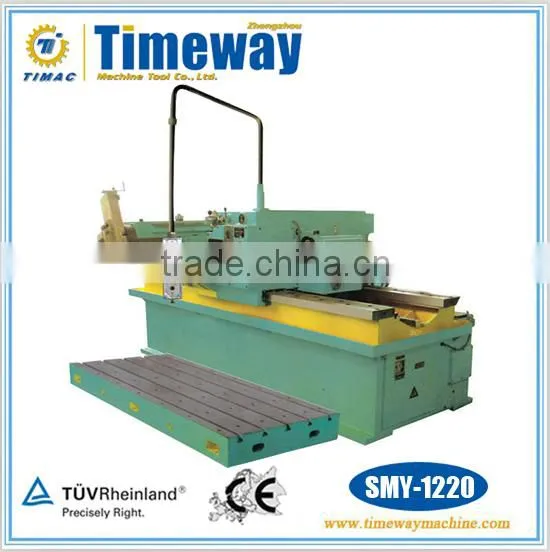

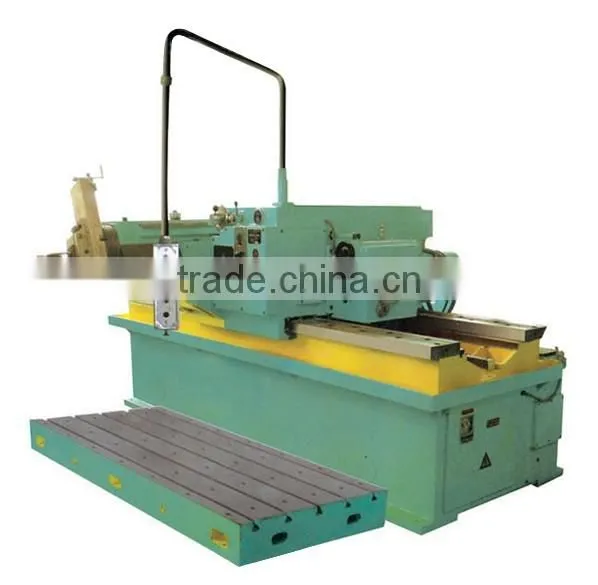

Horizontal Moving Head Hydraulic Shaping Machine

SMY-1015 SMY-1020 SMY-1220

Main Outlook

Product Description

Functions and Features

Being designed for machining various flat surface formed surface or groove surface on gaint or heavy workpiece, and it is suitable for machinery and metallurgy in single-piece or batch production.
The principal cutting movement and the feed movement of the machine are driven by hydraulic power, so they work smoothly and their speed can be adjusted steplessly. A safety device against overload is provided in the hydraulic system with low oil temperature. The machine with high rigidity is characterized by big cutting force, less hot deformation, and stable-machining accuracy.
Automatic horizontal-feeding and rapid motion can be obtained by the slide carriage of the machine.
With a tool lifter and a feeding device on the tool support, the machine is operated easily.

Specifications List

Technical Parameters

Specifications	Units	SMY-10(15~20)	SMY-12(15~20)
Max. shaping length *Width	mm	1000*1500-2000	1250*1500-2000
Stroke length of ram	mm	80-1000	80-1250
Distance from lower edge of ram to surface of table	mm	1200	1200
Max. travel of tool head	mm	160	160
Max. section of tool(W*H)	mm	30*45	30*45
Max. swiveling angle of tool support	°	±60°	±60°
Upper working surface of table(L*W)	mm	1000*2000	1250*2000
Width of middle T-slot on the upper surface of table	mm	28	28
Horizontal feed os slide carriage per reciprocating stroke of ram(stepless)	mm	0.25-3	0.25-3
Main motor power	kw	7.5	7.5
Motor for rapid motion of slide carriage	kw	1.5	1.5
Overall dimensions(LWH)	mm	360531752605	360534002605
Net weight	kg	8000	8400

Working Accuracy

Parallelism of machined surface on one side to that on the other side of tested workpiece	mm	0.06/500*200
Flatness of machined surfaces on tested workpiece	mm	0.03/500*200
Surface roughness	um	Ra0.3-3.2
