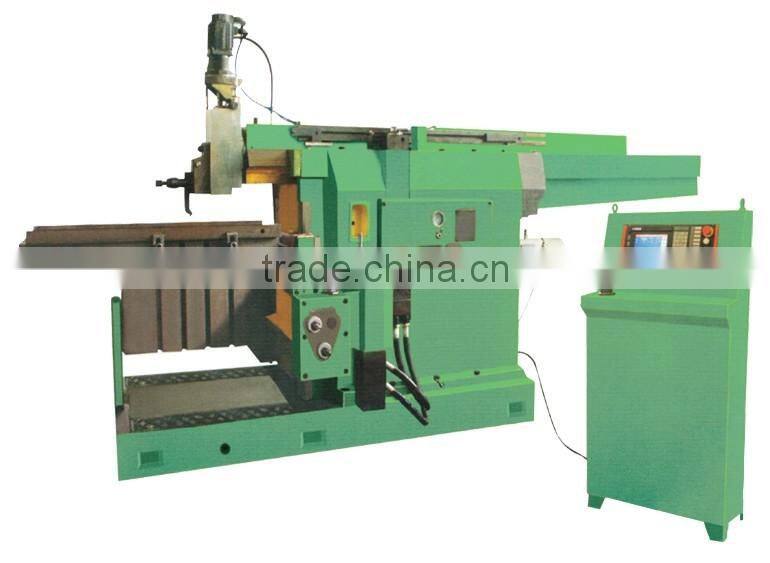

Large -type CNC Hydraulic Profile Shaping Machine

Name: Large -type CNC Hydraulic Profile Shaping Machine
Brand: TIMAC
SKU: 140797908
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 10,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

SMK-1000A

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number SMK-1000A

Voltage 380V/50HZ

Power(W) 7.5kw(main motor)

Dimension(L*W*H) 3615*1574*1760mm

Weight 5000kg

Certification CE ISO9001

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

Large-type CNC Hydraulic Profile Shaping Machine

SMK-1000A SMK-1250A

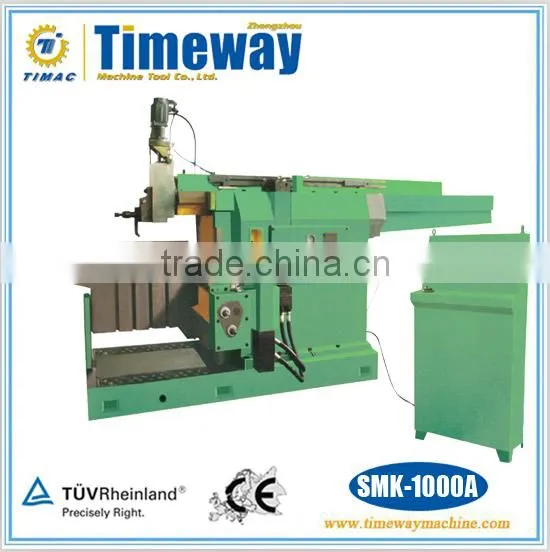

Main Outlook

Product Description

Functions and Features

The NC machine's mainbody is hydraulic shaping machine which is our factory's famous production. The hydraulic and mechanical transmission system were treated elitely, adopted rolling screw, seted NC system making it become a new and precision NC shaping machine. With the advent of the machine, advanced planing craft's development. It is able to shaping special formed surface workpiece. For example, crystal ware's curve of steel works, impeller's curve of air blower, etc. The machine is suitable for batch processing.
The machine has some advantages: operating conveniece, high rigidity, big cutting force, high efficiency, structure briefness of planer tool, low cost, insteading workpiece easily, etc. It exceeded NC milling machine and machine centres at some way.

Specifications List

Technical Parameters

Specifications	Units	SMK-1000A	SMK-1250A
Max. cutting force	KN	22	22
Max. shaping length	mm	1000	1250
Max. length of curved surface shaped	mm	1000	1250
Min. shaping length	mm	200	200
Cutting speed of ram	m/min	3-25	3-25
Max. travel of tool head	mm	160	160
Max. swiveling angle of tool support	°	±60	±60
Max. cross travel of table	mm	800	800
Max. vertical travel of table	mm	320	320
Max. section of tool(W*H)	mm	30*45	30*45
Upper working surface of table(L*W)	mm	1000*500	1250*500
Oil quantity of oil pump	L/min	40/40	40/40
Rated operation pressure	Mpa	5	5
Main motor power	Kw	7.5	7.5
Motor power for quickly traverse	Kw	1.1	1.1
Torque of AC servo motor	N/m	8.34	8.34
Overall dimensions(LWH)	mm	361515741760	386515741760
Net weight	kg	5000	5600
Working Accuracy
Flatness of machined surface on tested workpiece	mm	0.04	0.04
Surface roughness of workpiece	um	Ra6.3-1.6	Ra6.3-1.6
