Horizontal Hydraulic Planer and Shaping Machine

Name: Horizontal Hydraulic Planer and Shaping Machine
Brand: TIMAC
SKU: 140797906
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 5,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

SMH-900

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number SMH-900

Voltage 380V/50HZ

Power(W) 7.5kw(main motor)

Dimension(L*W*H) 3315*1445*1740mm

Weight 3600kg

Certification CE ISO9001

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

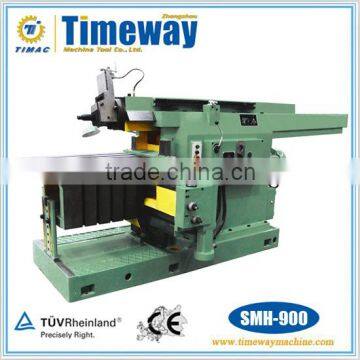

Hydraulic-Drive Horizontal Shaping Machine

SMH-650 SMH-900 SMH-1000 SMH-1250 SMH-1500

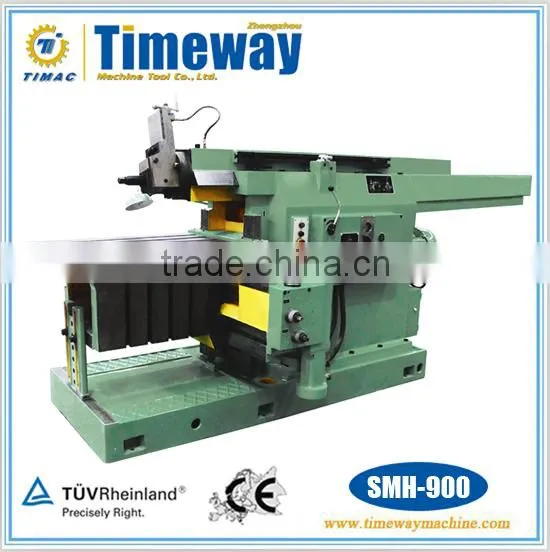

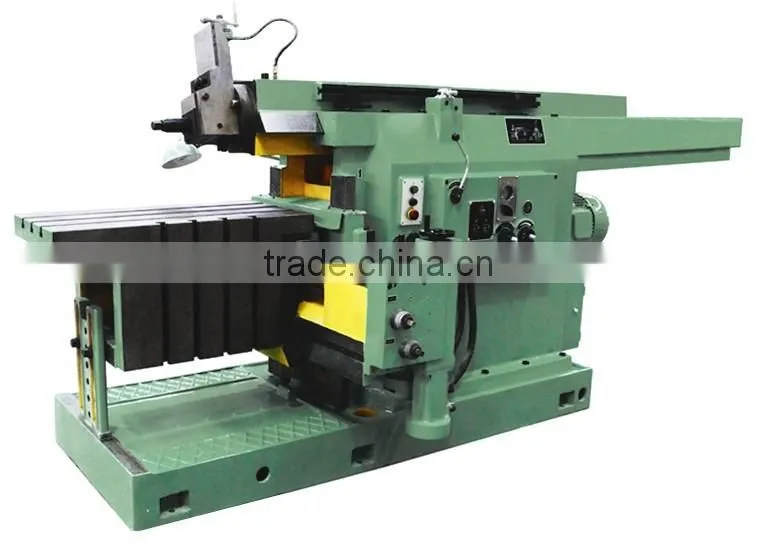

Main Outlook

Product Description

Functions and Features

Being designed for cutting various plane and formed surfaces, the machine is suitable for sign piece and small batch production.
The feeding and main cutting motion of the machine are driven by hydraulic power with smooth transmission and their speed can be adjusted steplessly. Provided with a safety device against overload, the machine is easy to start and stop with short over-range. And it can also suit the needs of heavy-duty and continuous cutting with the characters of high rigidity, big cutting force, high precision of conversion, low oil temperature, less thermo-deformation and stable machining accuracy.
The table of the machine can travel either vertically or horizontally and the tool head is equipped with a lifter device. The machine is convenient to operate with the handles being centralized.

Specifications List

Technical Parameters

Specifications	Units	SMH-650	SMH-900	SMH-1000	SMH-1250	SMH-1500
Max. shaping length	mm	650	900	1000	1250	1500
Cutting speed of ram(stepless)	m/min	2-24	3-37	3-44	3-44	3-44
Distance from lower edge of ram to upper surface of table	mm	80-350	80-400	80-400	80-400	80-400
Max. cutting force	N	28000	28000	28000	28000	28000
Max. travel of tool head	mm	150	160	160	160	160
Max. section of tool(W*H)	mm	22*30	30*45	30*45	30*45	30*45
Upper working surface of table(L*W)	mm	650*400	900*450	1000*500	1250*500	1250*500
Width of T-slot on upper surface of table	mm	18	18	22	22	22
Max. horizontal travel of table	mm	600	750	800	800	800
Horizontal feed of table per reciorocating stroke of ram(stepless)	mm	0.25-3	0.25-5	0.25-5	0.25-5	0.25-5
Main motor power	Kw	4	7.5	7.5	7.5	7.5
Motor for rapid motion of table	Kw	0.75	0.75	0.75	0.75	0.75
Overall dimensions(LWH)	mm	26001350 1500	33151445 1740	36151574 1760	38651574 1760	41151574 1760
Net weight	kg	3000	3600	4200	5000	5600

Working Accuracy

Flatness of Machined surface on tested workpiece	mm	0.03/500*200
Parallelism of machined surface on tested workpiece to base	mm	0.04/500*200
Parallelism of machined surface on one side to that on the other side on tested workpiece	mm	0.06/500*200
Verticality of machined surface on the side on tested workpiece against base	mm	0.03/100
Surface roughness	um	Ra6.3
