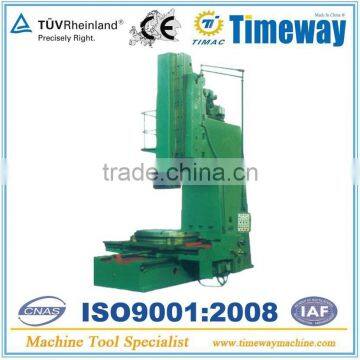

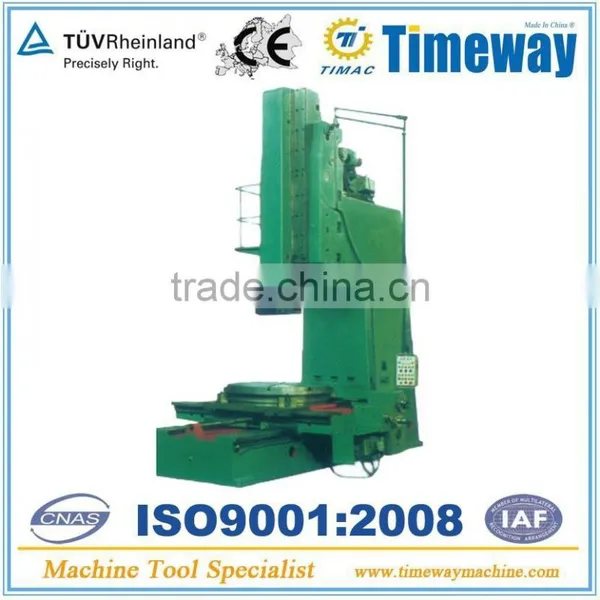

Large Slotting Machine BC-1250
Features:
1. This slotting machine is suitable for slotting various kinds of large or medium sized machine parts.
2. The ram reciprocating movement can be adjusted during in the working time.
3. The ram, worktable, and coolant pump are all drived by their individual motor.
4. The slotting speed can adjusted stepless.
5. The machine is equipped with an electric magnetic cutter lifting tool holder and arbor. The tool holder is used for outer slotting and the tool arbor for inner slotting and for slotting the keyway.
Specification | BC-1250 |
Max.siotting(1000mm for internal slotting) | 1250mm |
Cutting stroke speed | 4-30m/min |
Return stroke speed | 7-35mm/min |
Max.weight of the workpiese for slotting | 4500kg |
Power of main drive motor | 37kw |
Max. table cutting force (withinran traverse speed of 10-20m/min) | 24500N |
Table diameter | 1400 mm |
Max. table travel | Longitudinal: 1400mm |
Cross: 1120mm | |
Rotary: 360° | |
Distance between tool holding surface and column fornt | 1600mm |
Rang of feed Longitudinal | 0.2-3mm/double stroke |
Cross | 0.2-3mm/double stroke |
Circular(along dia.700 Circular) | 0.1-5mm/double stroke |
Distance between worktable and lower side of slide | 1650mm |
Ttable rapid traverse speed: longitudinal or cross | 500m/min |
Overall dimension(L*W*H) | 4600*3200*6760mm |
Total weight of machine(including electrical equipment) | 26ton |
