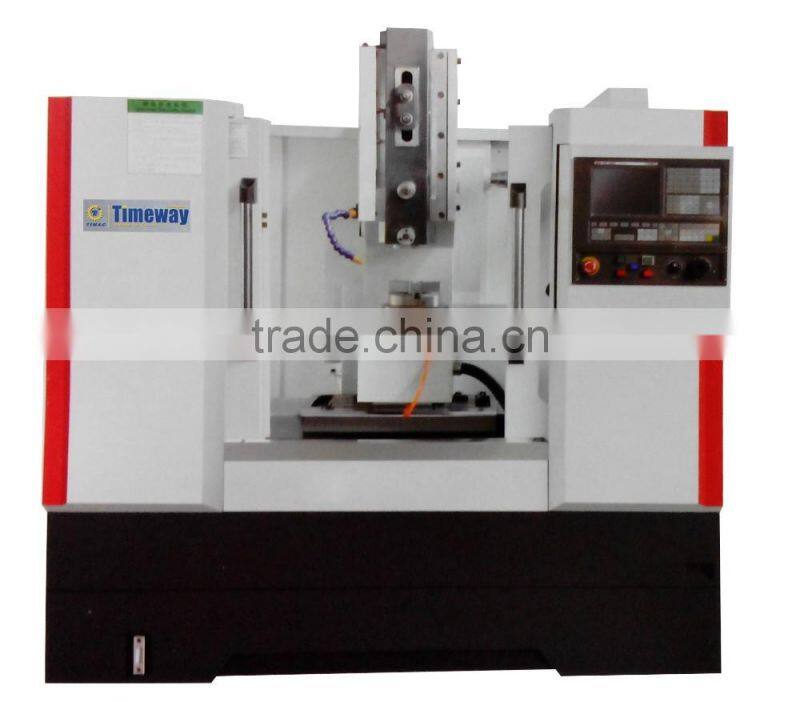

Small Type CNC Vertical Slotting Machine (CNC Vertical Slotter)

Name: Small Type CNC Vertical Slotting Machine (CNC Vertical Slotter)
Brand: TIMAC
SKU: 140797868
Availability: InStock

US$ 10,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

BK-180

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number BK-180

Voltage 380V/50HZ

Power(W) 1.5/2/2.2kw(main motor)

Dimension(L*W*H) 2150*2150*2200mm

Weight 1500kg

Certification CE ISO9001

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

Small Type CNC Vertical Slotting Machine (CNC Vertical Slotter)

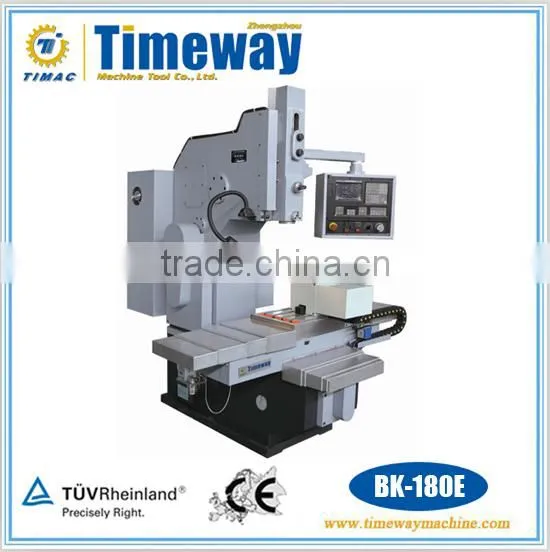

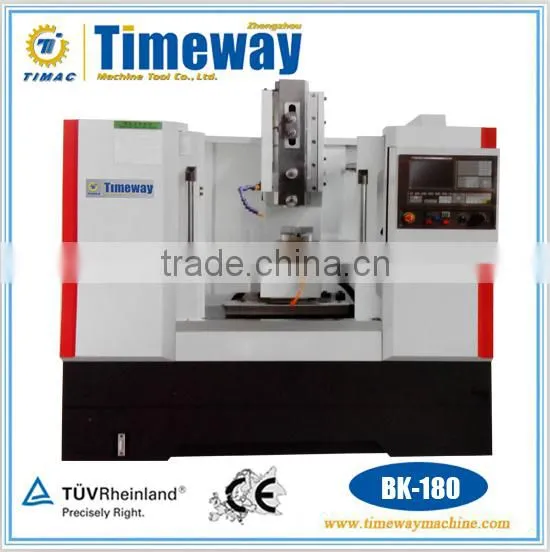

BK-180 BK-180E

Main Outlook

Product Description

Standard Configuration
KND 1000M CNC system
Semi-protection

Optional Configuration
HNC-18i/21MD CNC system
GSK-983M CNC system
FK15110 CNC dividing head
Full protection

Specifications List

Technical Parameter

Specification	Unit	BK-180(BK-180E)
Max. slotting length of ram	mm	180
Ram stroke adjustment	mm	80
Ram movement times per minute	times	45/60/90
Worktable size	mm	600*320
Worktable travel(X/Y)	mm	460*320
Distance from tool head supporting hole axis to column surface	mm	400
Distance from tool head supporting hole end to worktable surface	mm	480
X-axis motor torque	N.m	6
Y-axis motor torque	N.m	6
Rapid feed speed	m/min	5
X-axis ball screw		FFZD3205-3/P4
Y-axis ball screw		FFZD3205-3/P4
The main motor power	kw	1.5/2/2.2
Machine weight	kg	1500
Overall dimensions(LWH)	mm	215021502200
