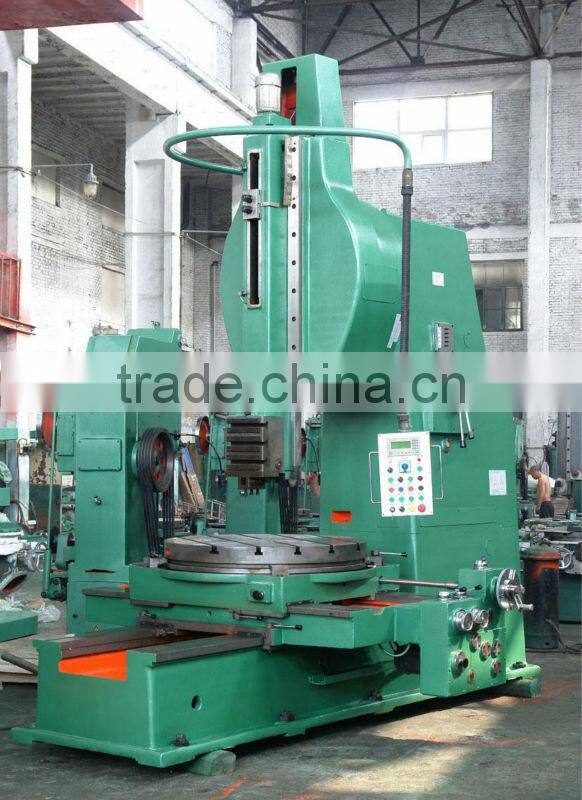

Planing Length 630mm Vertical Slotting Machine
Negotiable
/ Set
1 Set(Min.Order)
- China Port
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | TIMAC | Model Number | BC-630 | |
| Voltage | As Customers' Request | Power(W) | 7.5kw | |
| Dimension(L*W*H) | 3580x2390x3660mm | Weight | 11ton | |
| Certification | ISO, CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

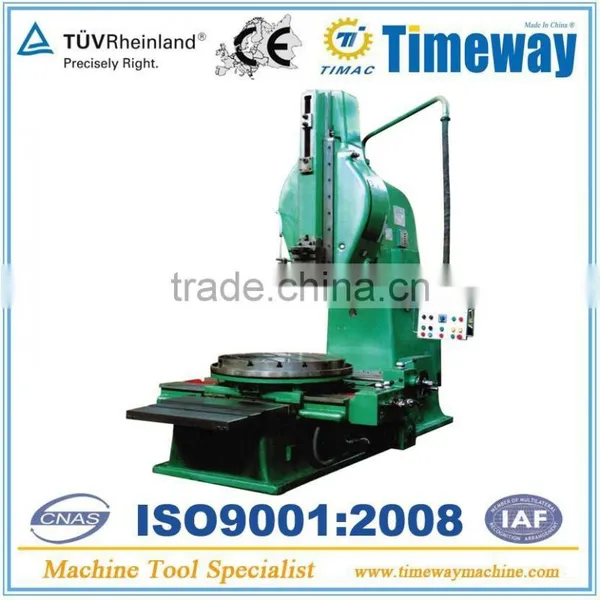

Vertical Planing / Slotting Machine (PLC control)
Features:
1.This vertical planning active surfaces of parts and notch etc.
2.The machine runs smoothly owing to it adopts double crank mechanism.
3.The length of ram stroke can be adjusted by power.
4.The machine operates easily because motion of the working table is driven by PLC system and rotary feeds of servo motor system.
5.It has a pump for lubrication and cooling cutting tool and workpiece.
| Specification | Unit | BC-630 |
| Max. Slotting Length of ram | mm | 630 |
| Number of ram strokes(per min) | r.p.m | 8,12,20,30 |
| Indication of ram head | deg | ±10 |
| Distance between tool holding surface and column front | mm | 1120 |
| Collect for slotting tool with sidth of Table | mm | 22H11 |
| Distance between workable and the lower side of slide | mm | 800 |
| Max .longitudinal travel of table | mm | 1000 |
| Max. transverse travel of table | mm | 700 |
| Range of table longitudinal and transverse feeds ram stroke | mm/per | 0.10,0.20,0.32,0.54,0.80,1.30 |
| Rang of table rotary feed deg per ram stroke | deg/per | 3`,6`,9`36``,16`12``,24`,39` |
| Diameter of the worktable | mm | 1120 |
| Max. weight of the worktable | kg | 2000 |
| Width of main drive motor | mm | 22H11 |
| Power of main drive motor | kw | 10 |
| Feed servo motor | kw | 4 |
| Ram adjustment motor | kw | 0.55, 1400rpm |
| Max Cutting force | N | 2000 |
| Machine net weight(approx) | kg | 11000 |
| Overall dimension(L×W×H) | mm | 3580×2390×3660 |
