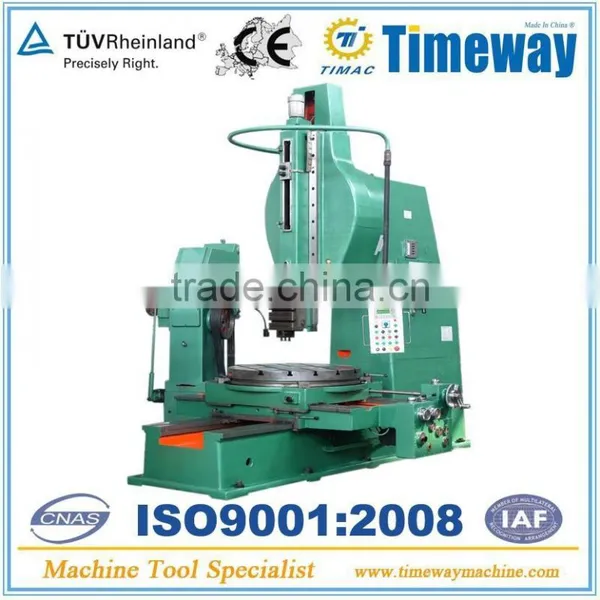

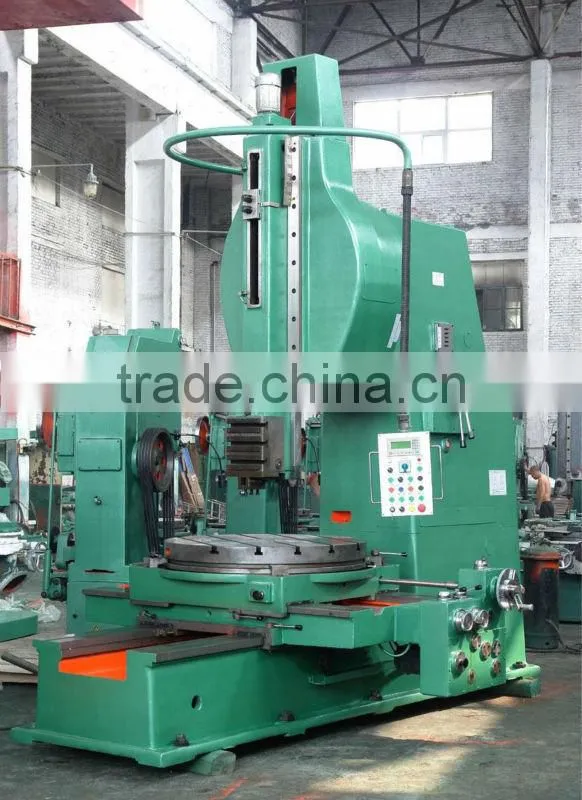

PL Control Vertical Slotting Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
TIMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Planing Length 630mm Vertical Slotting MachineNegotiableMOQ: 1 Set -
Small Type CNC Vertical Slotting Machine (CNC Vertical Slotter)US$ 10,000 - 100,000MOQ: 1 Set
-
Enocomic Type CNC Automatic Bed-type Vertical SlotterUS$ 10,000 - 100,000MOQ: 1 Set
-
CNC Keyseating Machine or Shaping Machine or Slotting MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
Hydraulic Slotting Machine 400mm Metal PlanerNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Henan, China
Brand Name
TIMAC
Model Number
BC-500
Voltage
As Customers' Request
Power(W)
7.5kw
Dimension(L*W*H)
3400x2850x3307mm
Weight
10.3ton
Certification
ISO, CE
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
Slotting Machine (PLC control)
Features:
1. This vertical slotting machine is suitable for vertical planning active surfaces and grooves of parts etc.
2. The machine runs smoothly owing to it adopts double crank mechanism.
3. It operates easily because the worktable motion is driven by PLC System and Rotary Feeds of Servo Motor System.
4. The working table can make rotary positioning mechanically, which is convenient for planning multikeyway.
It can feed stepless continuously, and also the feeding parameter is displayed in the indicator.
5. The mechanical system is turning for long time, the control system make the error compensation and ensure the processing precision.
| Specification | Unit | BC-500 |
| Max. slotting length | mm | 500 |
| Table diameter | mm | 1000 |
| Cross traverse of worktable | mm | 660 |
| Longitudinal traverse of table | mm | 1000 |
| Max. weight of worktable | kg | 2100 |
| Distance between tool holding surface and column front | mm | 990 |
| Range of ram adjustment | mm | 430 |
| Distance between worktable and the lower side of slide | mm | 740 |
| Inclination of ram head (left or right direction) | ±10 degree | |
| Number of ram strokes (per min.) | 9, 12, 5, 18, 25, 36, 50 | |
| Longitudinal and cross feeds of worktable (mm per ram stroke) | mm | 0.1-1.2-5 |
| Rotary feeds of table (min per ram stroke) | 3' 6' 9' 12' 18' 36' | |
| Max. cutting force | N | 16000 |
| Rapid traverse motor | kw | 1.5, 1440rpm |
| Main motor power | kw | 7.5, 1440rpm |
| Coolant pump motor | kw | 0.125, 2800rpm |
| Net weight of machine (approx.) | kg | 10300 |
| Overall machine dimensions (LxWxH) | mm | 3400x2850x3307 |
