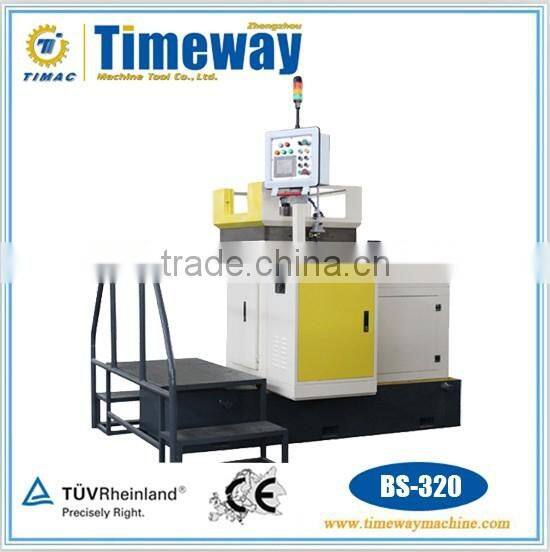

CNC Keyseating Machine or Shaping Machine or Slotting Machine

FOB Price

USD $10,000 - $100,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Brand Name:	TIMAC	Model Number:	BS-320
Voltage:	380V/50HZ	Power(W):	As actual situation	Dimension(LWH):	As actual situation
Weight:	5000kg	Certification:	CE ISO9001	Warranty:	One Year
After-sales Service Provided:	Engineers available to service machinery overseas

CNC Keyseating Machine or Slotter and Shaper

BS-320 BS-500

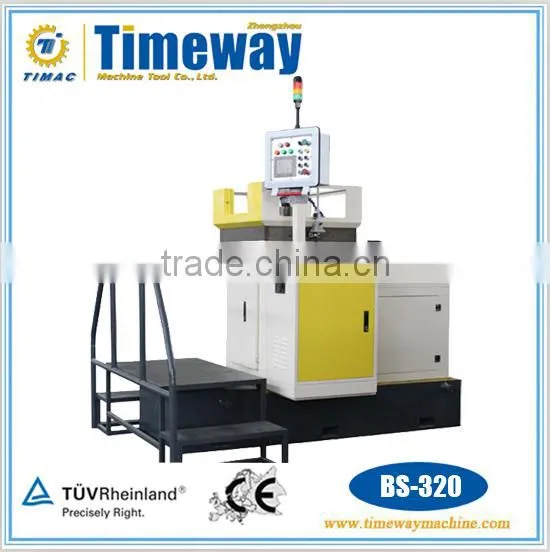

Main Outlook

Product Description

Performance and Features

The machine mainly is suitable for machining keyseat, spline and all kinds of groove type holes of workpiece internal holes.
The machine adopts open the workbench, applicable to the machining of complex and large type parts, using range more wide.
Low cost of tools, the machine tool NC programming simple, easy to operate, has high efficiency and practicability, is applicable to many varieties, small batch production.
When equipped rotary worktable, functions more widely, such as fixed angle type surface in the keyway, grooves, such as processing, etc.
Main movement of the machine adopts hydraulic driven, feed and feed depth and NC rotary table indexing are controlled by servo NC.

Specifications List

Technical Parameter

Specifications	Units	BS-320	BS-500
Rated cutting force	KN	16	16
Max. length of working stroke	mm	320	500
Hole diameter of workpiece	mm	15-350	15-350
Width of machined keyway	mm	4-50	4-50
Speed of working stroke(stepless)	m/min	2-12	2-12
Speed of teturning stroke(stepless)	m/min	2-20	2-20
Amount of feeding	mm	0.01-0.25	0.01-0.25
Centre bore diameter of worktable	mm	Φ100H7	Φ100H7
Distance from lifting board to surface table of lathe	mm	1100	1100
Dimension of worktable surface	mm	1000*800	1000*800
Load of machine	kg	4000	4000
Power of hydraulic motor	Kw	3.75	3.75
Power of coolant pump	Kw	0.37	0.37
Net weight of machine	kg	5000	5000

Zhengzhou Timeway Machine Tool Co., Ltd.: Contact nameDavid Cheung; Phone86-371-60308992; Address4-1702, 32# NORTH JINGSAN ROAD, ZHENGZHOU, HENAN,CHINA Zhengzhou,Henan
