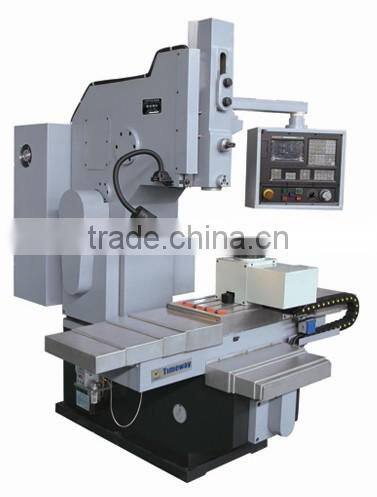

Enocomic Type CNC Automatic Bed-type Vertical slotter

FOB Price

USD $10,000 - $100,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Brand Name:	TIMAC	Model Number:	BK-180E
Voltage:	380V/50HZ	Power(W):	1.5/2/2.2kw(main motor)	Dimension(LWH):	215021502200mm
Weight:	1500kg	Certification:	CE ISO9001	Warranty:	One Year
After-sales Service Provided:	Engineers available to service machinery overseas

Economic CNC Automatic Bed-type Vertical Slotter

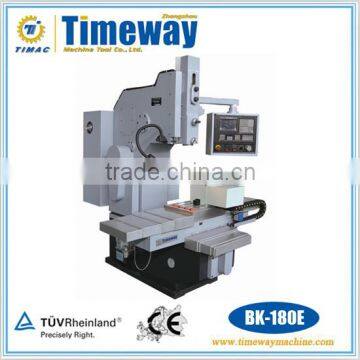

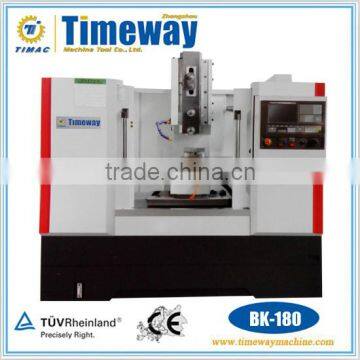

BK-180 BK-180E

Main Outlook

Product Description

Standard Configuration
KND 1000M CNC system
Semi-protection

Optional Configuration
HNC-18i/21MD CNC system
GSK-983M CNC system
FK15110 CNC dividing head
Full protection

Specifications List

Technical Parameter

Specification	Unit	BK-180E(BK-180)
Max. slotting length of ram	mm	180
Ram stroke adjustment	mm	80
Ram movement times per minute	times	45/60/90
Worktable size	mm	600*320
Worktable travel(X/Y)	mm	460*320
Distance from tool head supporting hole axis to column surface	mm	400
Distance from tool head supporting hole end to worktable surface	mm	480
X-axis motor torque	N.m	6
Y-axis motor torque	N.m	6
Rapid feed speed	m/min	5
X-axis ball screw		FFZD3205-3/P4
Y-axis ball screw		FFZD3205-3/P4
The main motor power	kw	1.5/2/2.2
Machine weight	kg	1500
Overall dimensions(LWH)	mm	215021502200

Zhengzhou Timeway Machine Tool Co., Ltd.: Contact nameDavid Cheung; Phone86-371-60308992; Address4-1702, 32# NORTH JINGSAN ROAD, ZHENGZHOU, HENAN,CHINA Zhengzhou,Henan
