2014 new portable tig welding machine price TIG-200G
- 2000 Set / Sets per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- AITOP 5000A/8000A Li ion 18650 32650 Battery 5000A 8000A Mini Pneumatic Aluminum Laser Point Spot Welder Welding Machine For Lithium Cell
- Miller MigMatic S400i Synergic MIG Welder 415V Engine Welder
- DX450 Diesel Engine Welder
- Drill stabilizer hardbanding machine
- Movavle hardbanding machine
- Hardbanding welding machine
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | Andeli |
Model Number: | TIG-200G | Arc Current: | 26 | Pulse Frequency: | 50/60 |
Pilot Arc Current: | 20-190 | Rated Duty Cycle: | 60 | Motor Type: | DC Motor |
Dimensions: | 335*120*220 | Usage: | tig welding machine | Voltage: | 220 |
Power(W): | 5.7 | Certification: | CE CCC ROHS | Warranty: | 1year |
Product Description
Specifications
tig welding machine2. small splashing
3. OEM
4. 2 years warranty
5. CCC CE ROHS
2014 new portable tig welding machine price TIG-200G
1. support TIG/MMA welding
2. compact and portable, easy and simple to operate
3. start arc easily, stable welding arc, deep weld pool and beautiful welding shape
4. suitable for welding with different kings of acid or basic electrode
5. plastic box with complete accessoriesis optional: electrode holder, earth clamp,cable joint,
grounding cable, welding mask, brush and QQ 150A TIG torch
Specifications:
Portable TIG/MMA Welding Machine | |||
Model | TIG-180G | TIG-200G | TIG-250G |
Type | IGBT Chip | ||
Rated input voltage (V) | single phase AC220 ±15% | three phase AC380 ±15% | |
Rated frequency (Hz) | 50/60 | 50/60 | |
Rated input power (KVA) | 5 | 5.7 | 8 |
Rated input current (A) | 23 | 26 | 12 |
Rated output | 155A/26.2V | 170A/26.8V | 220A/28.8V |
Output current (A) | TIG: 20-175 MMA: 20-155 | TIG: 20-190 MMA: 20-170 | TIG: 20-220 MMA: 20-220 |
No-load voltage (V) | 56±5 | 62±5 | 62±5 |
Rated duty cycle (%) | 60 | 60 | 60 |
Efficiency (%) | 80 | 80 | 80 |
Power factor | 0.7 | 0.7 | 0.7 |
Protection grade | IP21 | IP21 | IP21 |
Insulation grade | F | F | F |
Net weight (KG) | 5.5 | 6.4 | 20 |
Gross weight (KG) | 8.4 | 9.3 | 22 |
Housing of machine | iron | iron | |
Dimension of machine (mm) | 335×120×200 | 480×200×375 | |
Dimension of packing 1V1 (mm) | 428×228×226 | 472×237×336 | |
Dimension of packing 4V1 (mm) | 475×445×485 | — | |
including accessories: earth clamp×1pcs, cable joint×2pcs, inner hexagon spanner×1pcs, grounding cable×3meters, TIG torch×1set (QQ150A for TIG-180G/200G, WP-26 for TIG-250G) | |||
plastic box with complete accessories is optional |
Details:
01. 100% seamless, full-chip technology of the control panel,greatly increase the reliability of welding machine, at the same time Andeli exclusively using over-current protection system on the control panel , prevent large current shock, prevent the welder secondary damage, even Fried tube.
02. Andeli is the only stick with the most advanced of the amorphous structure transformer 200G models in China, the machine efficiency is over 32%, compared to "ferrite" is extended more than twice the life.
03. Recent wind blowing straight type design, welding machine can work in the high temperature of 60C , load rate of 100%.
04. From Germany's Siemens technology imported from IGBT single pipe, quality guaranteed.
05. Cooperate with industry leading capacitor production enterprises, 4470uf, high quality, to ensure the high-efficiency and stable output of the electric welding machine.
06. Super-size capacity of the radiator, to improve welding efficiency by more than 26%.
07. Interlayer duct patent technology, completely prevent dust into the upper and lower plate, and cause a short circuit to improve the service life of welding machine; All lines adopt insulation layer leather processing, Andeli want to manufacturing the best welding.
08. Andeli welding machine production in line with international safety standards, each welder has a grounding design.
Accessories:
Packing:

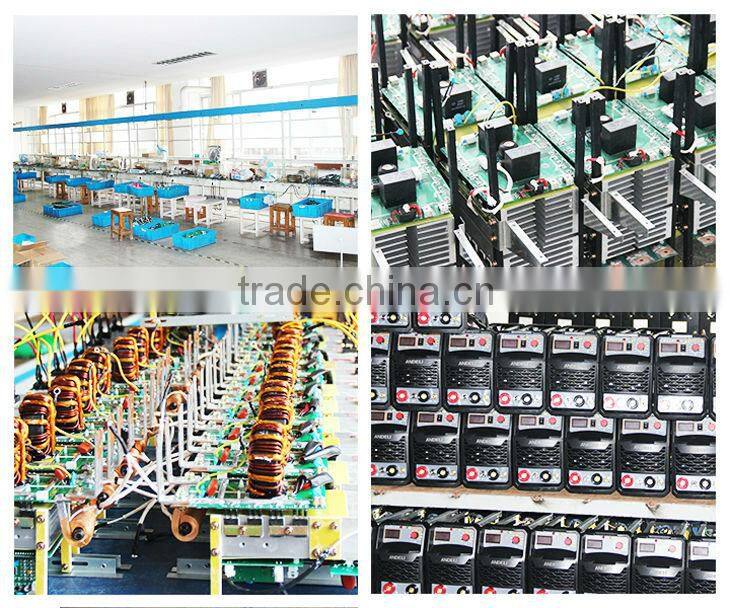

Production Line:
Application and Projects:
Certificates:
For More Info, pls contact me:
Attn.: Ms. Aolin Liu Skype: summerlin8023 Tel: 0086-0577-61722823 Email: andeli312 at
Your emails and inquiries would be dealt within 24 hrs, despite of weekends
