Wholesale/Retails Telwin TIG/MMA Welding Machine 160,200

Specifications

Tig/mma Welding machine
Rated input current(A) :15 20 28 32 Efficiency(%) :85 Duty cycle(%):40,60 Power factor:0.93 No-load vol





Wholesale/Retails Telwin TIG/MMA Welding Machine 160,200





Why choose us?



1. 20 years - Andeli Group Co.,Ltd is founded in 1993. 2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE. 3. 300 cooperating companies - We have over 300 cooperating companies. 4. 3000 workers - We have over 3000 workers. 5. USD150,000,000 - The total assets is USD150,000,000. 6. 235,000 square meters - The area of Andeli is 235,000 square meters. 7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA……







1.Application
Support TIG & MMA two kinds of welding.
Icompact and portable, easy and simple to operate.
Start arc easily, stable welding arc, deep weld pool and beatiful welding shape.
Suitable for welding with different kinds of acid or basic electrode.
Plastic box with complete accessories is optional: electrode holder, earth clamp, cable joint,TIG-180 grounding cable,welding mask, brush and QQ150A TIG torch

2.Specification



Model	TIG-180G	TIG-200G	TIG-250G
Type	IGBT Chip
Rated input voltage (V)	single phase AC220 ±15%		three phase AC380 ±15%
Rated frequency (Hz)	50/60		50/60
Rated input power (KVA)	5	5.7	8
Rated input current (A)	23	26	12
Rated output	155A/26.2V	170A/26.8V	220A/28.8V
Output current (A)	TIG:20-175 MMA:20-155	TIG:20-190 MMA:20-170	TIG:20-220 MMA:20-220
No-load voltage (V)	56±5	62±5	62±5
Rated duty cycle (%)	60	60	60
Efficiency (%)	80	80	80
Power factor	0.7	0.7	0.7
Protection grade	IP21	IP21	IP21
Insulation grade	F	F	F
Net weight (KG)	5.5	6	20
Gross weight (KG)	6.5	7	22
Housing of machine	iron	iron	iron
Dimension of machine (mm)	335×120×200	335×120×200	480×200×375
Dimension of packing 1V1 (mm)	428×228×226	428×228×226	472×237×336
Dimension of packing 4V1 (mm)	475×445×485	475×445×485	-



Including accessories:earth clamp×1pcs,cable joint×2pcs,inner hexagon spanner×1pcs,grounding cable×3meters,TIG torch×1set (QQ150A for TIG-180G/200G, WP-26 for TIG-250G)
Plastic box with complete accessories is optional
*two options: iron panel and plastic panel





Product Detils :





01.  100% seamless, full-chip technology of the control panel,greatly increase the reliability of welding machine, at the same time Saip exclusive using over-current protection system on the control panel , prevent large current shock, prevent the welder secondary damage, even Fried tube.





02.  ANDELI is the only stick with the most advanced   of the amorphous structure transformer  200G models in China, the machine efficiency is over 32%, compared to "ferrite" is extended more than twice the life.





03.  Recent wind blowing straight type design, welding machine can work in the high temperature of 60C , load rate of 100%.





04.  From Germany's Siemens technology imported from IGBT single pipe, quality guaranteed.





05.  Cooperate with industry leading capacitor production enterprises, 4470uf, high quality, to ensure the high-efficiency and stable output of the electric welding machine.





06.  Super-size capacity of the radiator,to improve welding efficiency by more than 26%.





07.  Interlayer duct patent technology, completely prevent dust into the upper and lower plate, and cause a short circuit to improve the service life of welding machine; All lines adopt insulation layer leather processing, saip want to manufacturing the best welding.





08.   ANDELI electric welding machine production in line with international safety standards, each welder has a grounding design.





More Display :





Main Components of Different (our welding machine and the other):

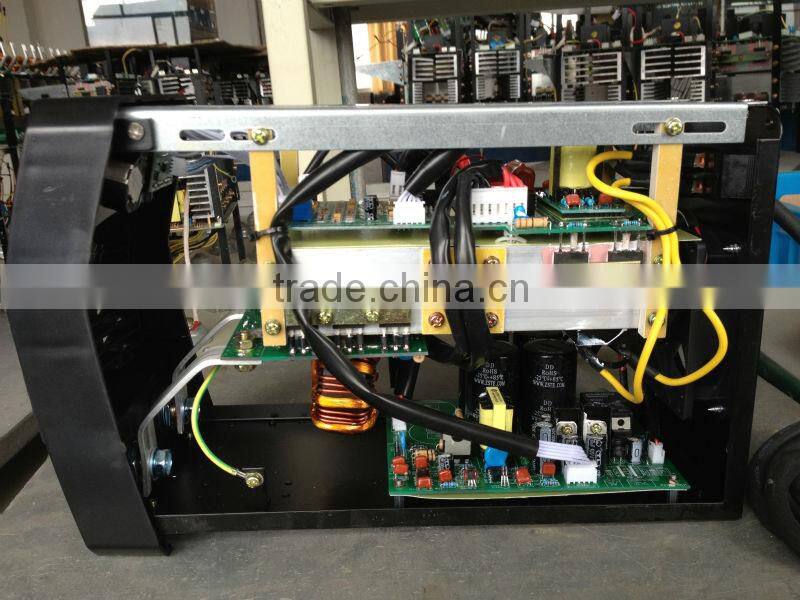

Machine Inside View:





Accessorie:



* BUY WITH CONFIDENCE.

* QUALITY MACHINES MANUFACTURED BY ANDELI.

* FULL SERVICE AND PARTS BACK UP.

* 24 MONTHS WARRANTY.



The data in the above table is only for reference. Please subject to the nameplate on the device..
