RF wireless remote touching control pwm rgb led strip Light controller
Introduction:
LED controller is a universal RGB controller for entire color changing, which adopted high-performance single-chip and the most advanced PWM (Pulse-Width-Modulation) controlling technology. It can control all 4-pin 3-loop LED RGB full color lights such as LED module, LED strip, LED SMD tape, and high power LED projector, wall-washer, flood light, underwater lamp etc. Adopt Flame retardant PC ABS casing, touch function button and exquisite appearance.
Product parameter:
Model |
BC-390RF remote |
Input Voltage |
DC12V-DC24V |
Max Current Load |
8A/CH×3 |
Max Output Power |
290W(12V)/580W(24V) |
Scale Levels |
4096 LEVEL /CH×3 |
Working Temperature |
-30°C-55°C |

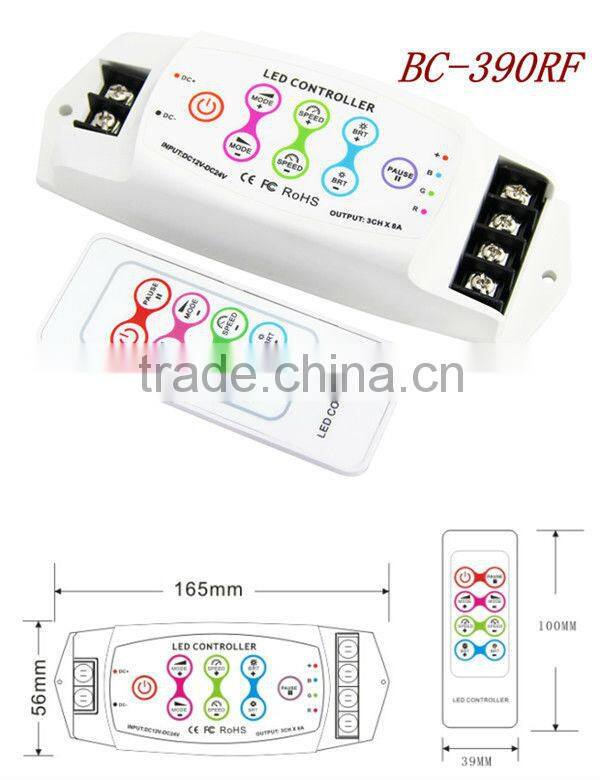

Product Dimension |
L165xW56xH36(mm) |
Package Dimension |
L180×W65×H53 (mm) |
Weight (G.W) |
210g |
Remote Control Distance |
30m with block; 60m without block |
Control Type |
Common anode |
Feature function:
1.Automatically adapt to LED light which works from DC5V-24V or DC12V-24V.
2.4096 levels of grey scale per RGB even & smooth for color gradual changes, without any flashes.
3.36 fantastic modes such as color smooth, color skipping, horse race, strobe, etc.
4.Can choose a changing speed and brightness in a certain mode independently.
5.Can stop at static single color, speed & brightness adjustable at pause status.
6.Working with power repeater to expand power output unlimitedly.
Typical Wiring Schematics:

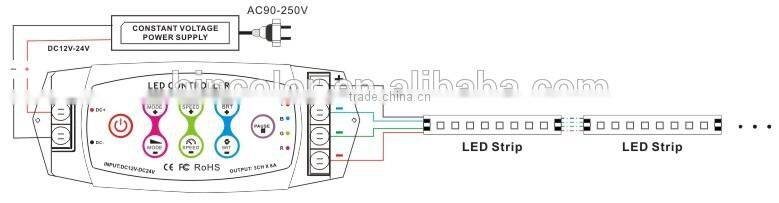

1. RGB controller BC-390RF and RGB LED strips.
2.tary RGB controller BC-390RF, LED power repeater BC-960 and RGB LED strips.
After inspection the goods are packed in white inner box and then carefully packed in cartons.
1. Professional advice according to your needs.
2. Instant response to your inquiries.
3. Short lead-time, quick delivery.
4. Three years warranty for all of our products.
5. Samples orders, OEM/ODM orders are also welcomed.
We are leading Manufacturer of LED controllers in Zhuhai, Guangdong province, China.
We are small, flexible and loyal. Ideal partner of your customize order.
We are strong in developing OEM and ODM projects, and customer's rights are the first things we consider about.
We are very competitive in price , well reputed for quality product and prompt delivery.
Welcome to discuss more in details.
Any question, welcome to contact me, all question will be answered within 24 hours or immediately on instant contact!
