Zhuhai Bincolor 1 channel wall led dimmer switch 24v
Introduction:
This is an intelligent dimmer specially designed for LED lighting, it adopted the most advanced PWM (pulse-width-modulation) digital brightness-adjusting technology that enables you adjust the brightness with the infinite. It is suitable for installation of commercial and household 86-style socket, you can install it visibly outside the wall, it can meet different brightness requirements at different time with the dimmer, also it can extend the LED service life and save energy, suitable to dim hi-power or low-power LED lamps.
.
Product parameter:
Model |
Constant Voltage BC-321 |
Input power |
DC12V~DC24V |
Output signal |
Constant voltage PWM |
Max load current |
10A |
Output power |
120W/240W(12V/24V) |
Dimming range |
0-100% |
Grey step |
4096 levels |
Switch size |
L87×W87(mm) |
Package size |
L96×W91×H61(mm) |
Gross weight |
150g |
Feature function:
1.Standard 86-style socket, easy to install.
2.Infinite knob style dimming, easy to operate.
3.Real 0~100% brightness adjust, 4096 scale levels. Comfort to human eye visual characteristic.
Lamplight soft and stable, without flickers, welcome to compare.
4.Automatically adapt to 12-24V working voltage.
5.Can be equipped with power repeater to expand power.
6. Power loss memory function.

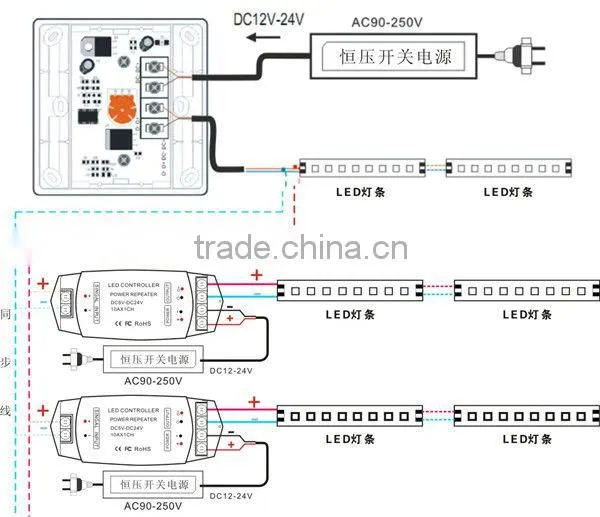

Typical Wiring Schematics:
1. LED dimmer BC-321LED strips.
2.Led dimmer BC- 321 , LED power repeater BC-960 and RGB LED strips.
1. Packaging:
After inspection the goods are packed in inner box and then carefully packed in cartons.
2. Shipping:
We will deliver goods by EMS/DHL/FEDEX/UPS and so on, it will takes around 5-7 working days to
arrived.
1. Our products meet international standards. OEM and ODM orders are welcome.
2. For first coopertion, welcome to buy sample to test quality, and we don't require MOQ for
sample, any quantity is available.
3. All products have 3 years warranty.
