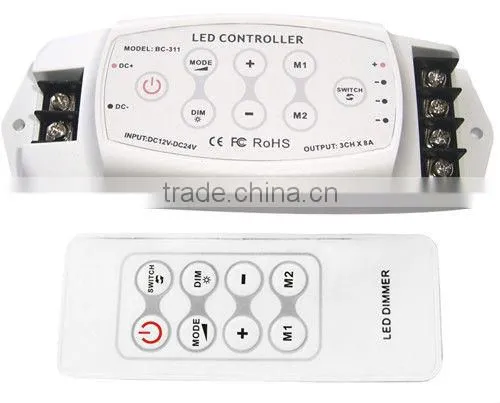

3 channels constant voltage 12v dc dimmer controller with CE rohs
Introduction:

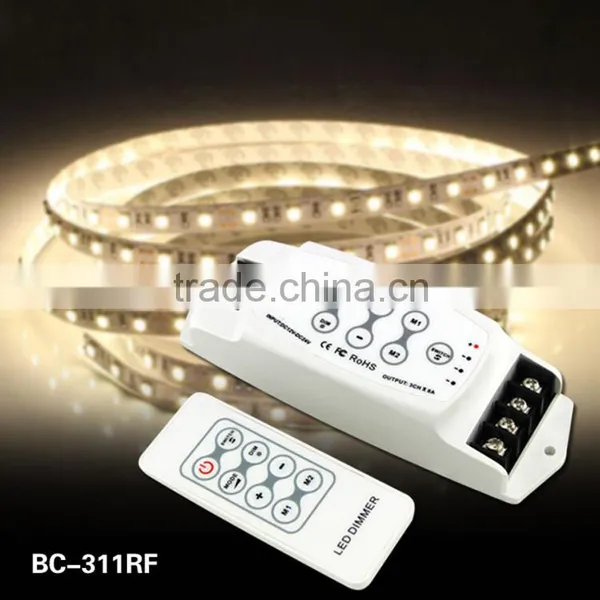

BC-311RF LED Dimming controller is dedicated to control single color changes (common anode), adopted the most advanced PWM (Pulse-Width Modulation) digital brightness-adjusting technology at present. Extensively used in all kinds of LED lighting decoration. It can be used together with our power repeater to achieve unlimited output power.
Feature :
1. Automatically adapts to the LED lights which works between DC12-24V.
2. Real 0~100% brightness adjust, 4096 grey scales. Lamplight soft and stable, no strobe flash.
3. 3-Channel output control, maximum output 8A per Channel, 24A in total.
6. Power loss memory function.
4. 8 modes, Brightness can be adjusted in static mode; speed can be adjusted in dynamic mode.
5. sustain to full-load working, can be equipped with power repeater to expand power.
Specification :
|
Input voltage
|
DC12V-DC24V |
|
Output current
|
8A/CH x 3 |
|
Output power
|
290w(12v)580w(24v) |
|
Scale level
|
4096 levels |
|
Dimension
|
L 165 x W56 x H36 (mm) |

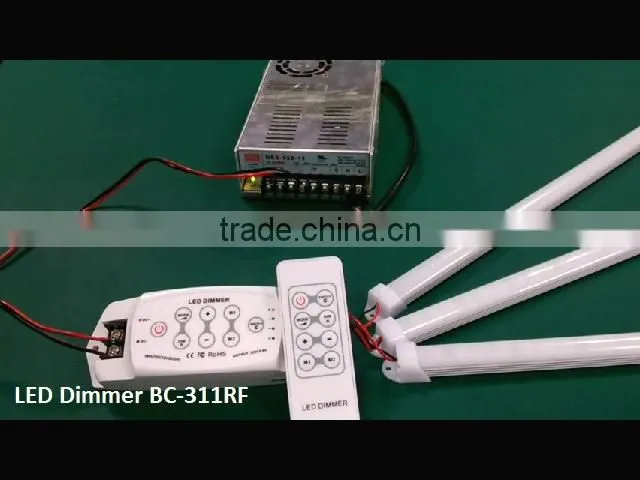

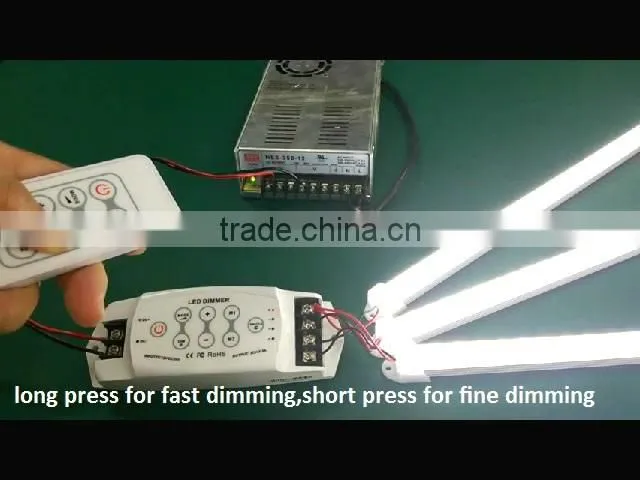

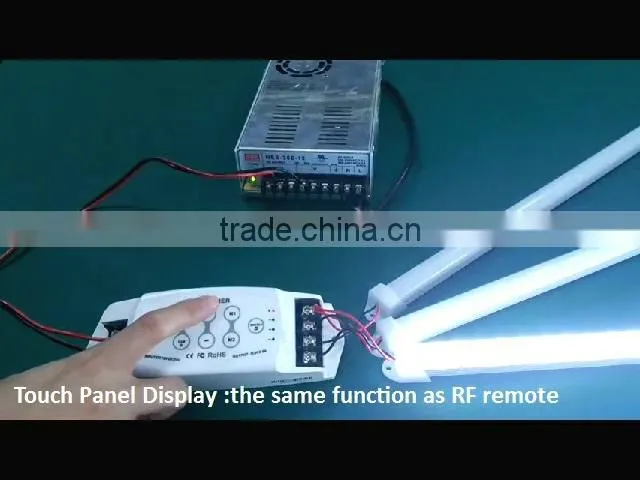

Product show :
Application :
1. Connect with led strip :

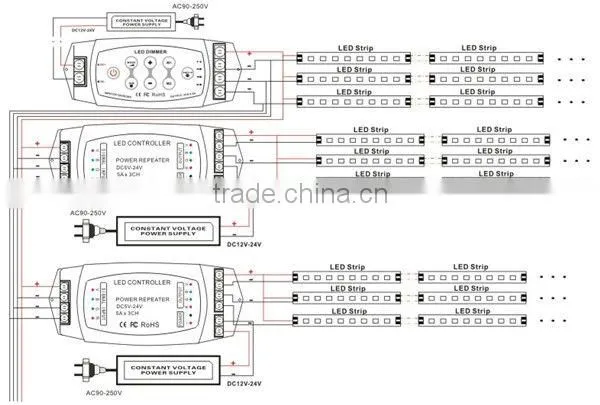

2. Connect with power repeater :
