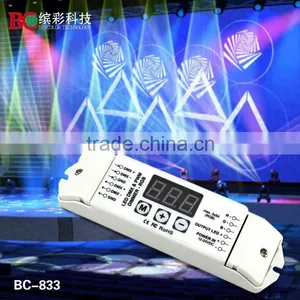

DC12-24V 3 Channels DMX 512 Decoder - DMX Driver Controller for LED Lights thumbnail-1
DC12-24V 3 Channels DMX 512 Decoder - DMX Driver Controller for LED Lights photo-1
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Bincolor
Model Number:
BC-833
Contact Supplier Request Quote Chat Now
Zhuhai Bincolor Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
zhuahi
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Bincolor
Model Number BC-833





       DC12-24V 3 Channels DMX 512 Decoder - DMX Driver Controller for LED Lights





   DC12-24V 3 Channels DMX 512 Decoder - DMX Driver Controller for LED Lights





Introduction:





BC-833 dmx512 decoder/driver, it features Terminal Block DMX ports. This unit transfer DMX512 signal to



constant voltage pwm signal. Simply connect the DMX input on this unit and connect the red,green and blue



wires on your LED fixture.Within minutes, you'll be controlling your LED fixtures via DMX decoder.





Feature:





1.Installer-friendly: easy to install, mount and configure





2.Support master mode and slave mode



3. 3-digital-display shows DMX address code





4.4096 grey scales control and full color control





5. Can be used with a single channel for brightness control only

6.Wrong wiring protection at DMX port. Over current protection and short circuit protection.





7.power loss memory function,remember the last mode after turn off/ or cut off

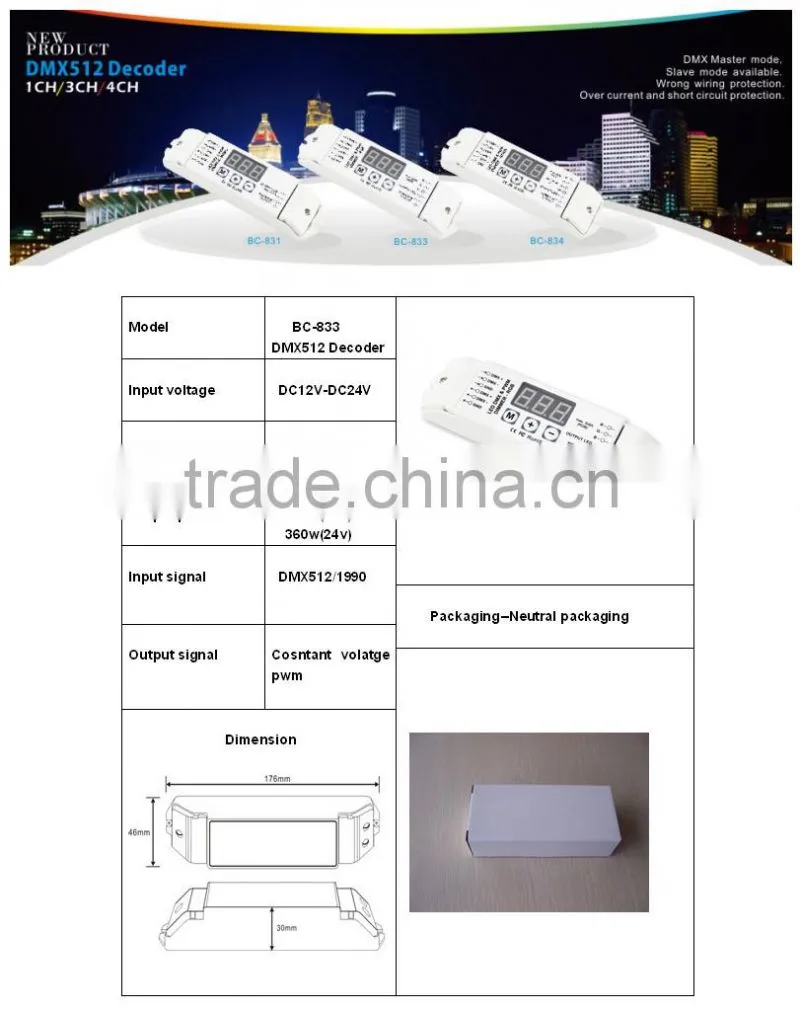

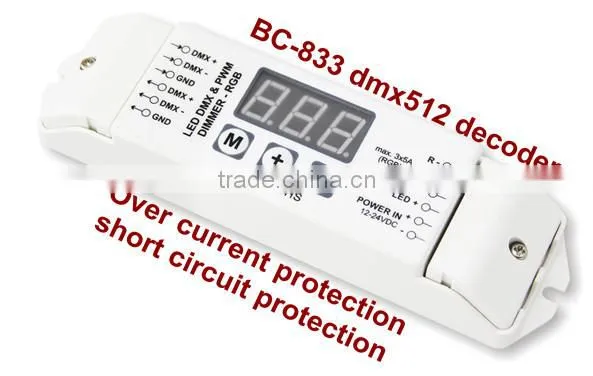

Product show:





                  DC12-24V 3 Channels DMX 512 Decoder - DMX Driver Controller for LED Lights









                       DC12-24V 3 Channels DMX 512 Decoder - DMX Driver Controller for LED Lights







                      DC12-24V 3 Channels DMX 512 Decoder - DMX Driver Controller for LED Lights



Wiring Dragram :

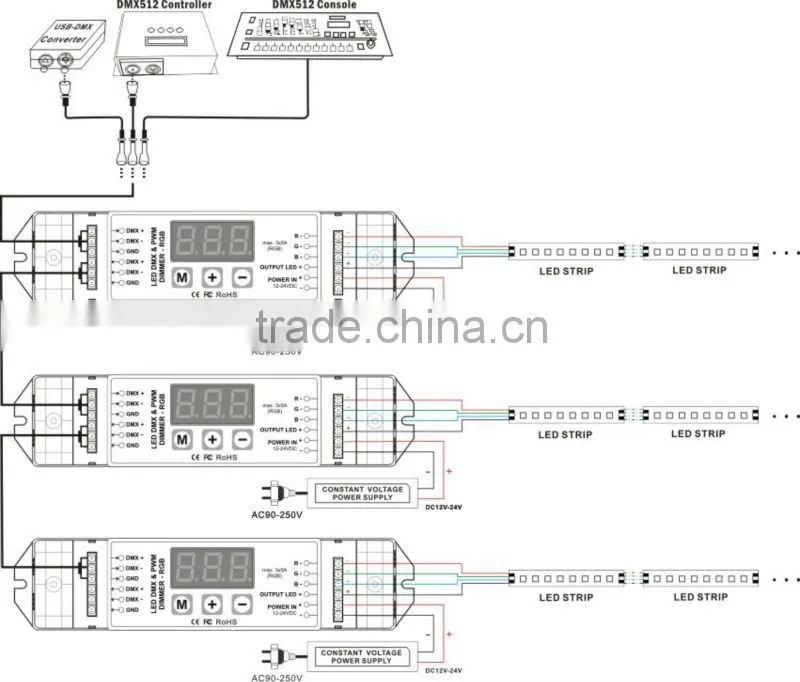

1.  Work as Master Mode:(Only one decoder is allowed to work as a master)





   DC12-24V 3 Channels DMX 512 Decoder - DMX Driver Controller for LED Lights

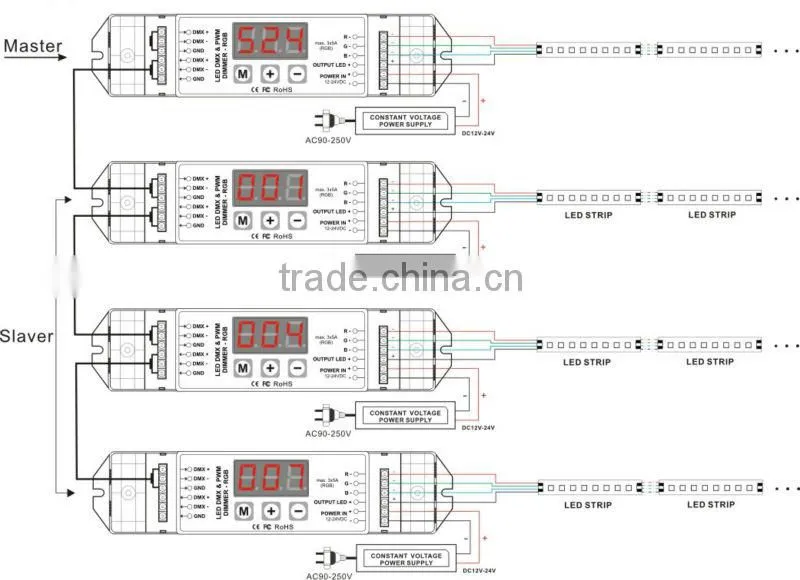

2. Work as slave mode:





    DC12-24V 3 Channels DMX 512 Decoder - DMX Driver Controller for LED Lights







  DC12-24V 3 Channels DMX 512 Decoder - DMX Driver Controller for LED Lights
