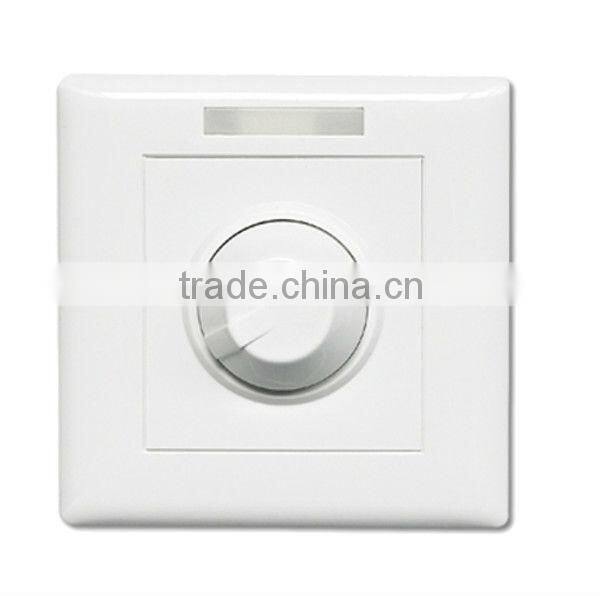

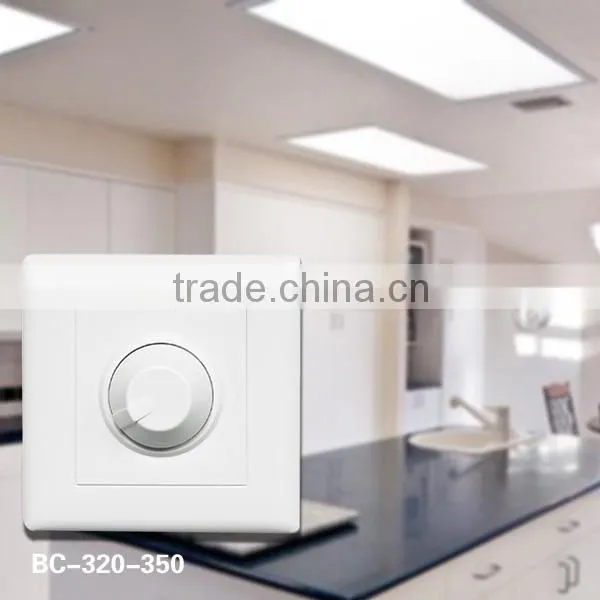

dc 12c-24v IR remote control light 350ma dimmer
Introduction:
An intelligent dimmer dedicated to adjust the brightness of LED light, adopted the most advanced PWM (Pulse-Width Modulation) digital brightness-adjusting technology at present, users can either turn around the knob manually or use the IR wireless remote control panel to control the brightness infinitely; Suitable for installation of commercial and household 86-style socket; can install the socket visibly outside the wall or inside the wall invisibly; it is suitable for dimming hi-power 1W/3W LED lamps and it’s energy-saving.
Product parameter:
Mdoel |
Constant current BC-320-350 |
Input voltage |
DC12V-DC48V |
Max load current |
350MA |
Driving LEDs |
12V: 1-3pcs 1W LED 24V: 1-6pcs 1W LED 36V: 1-9pcs 1W LED 48V: 1-12pcs 1W LED |
Output signal |
Constant current PWM |
Dimming range |
0-100% |
Scale levels |
4096 levels |
Switch Dimension |
L87*W87(mm) |
Weight (G.W) |
170g |
Feature function:
1.Standard 86-style socket, easy to install.
2.Infinite knob style dimming and wireless IR remote dimming, easy to operate.
3.Real 0~100% brightness adjust, 4096 scale levels. Comfort to human eye visual characteristic.
Lamplight soft and stable, without flickers, welcome to compare.
4.Delay OFF button, fluorescent indicator, users friendly.
5.25%,50%,75%,100% , 4 brightness shortcuts.
6.Automatically adapt to DC12V-48V working voltage.
7.Can be equipped with power repeater to expand power.
8. Power loss memory function.

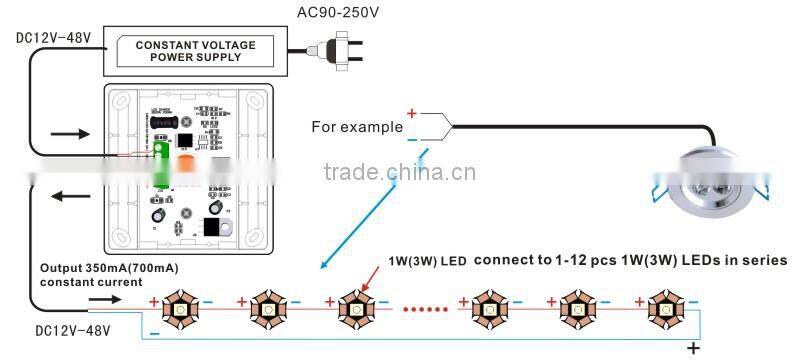

Typical Wiring Schematics:
1. LED dimmer BC-320-350 LED strips.

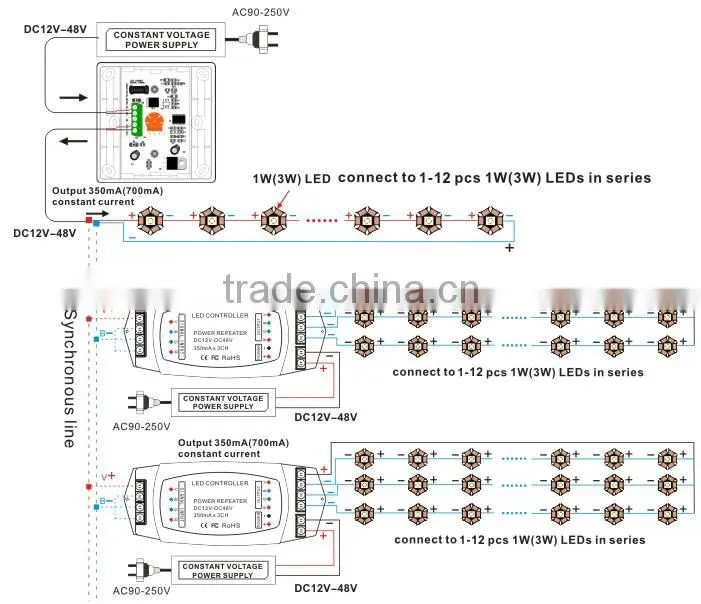

2.Led dimmer BC-20-350 LED power repeater BC-960 and RGB LED strips.
1. Packaging:
After inspection the goods are packed in inner box and then carefully packed in cartons.
2. Shipping:
We will deliver goods by EMS/DHL/FEDEX/UPS and so on, it will takes around 5-7 working days to
arrived.
1. Our products meet international standards. OEM and ODM orders are welcome.
2. For first coopertion, welcome to buy sample to test quality, and we don't require MOQ for
sample, any quantity is available.
3. All products have 3 years warranty.
