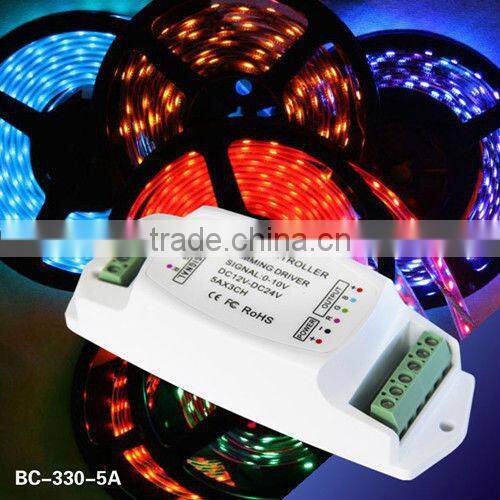

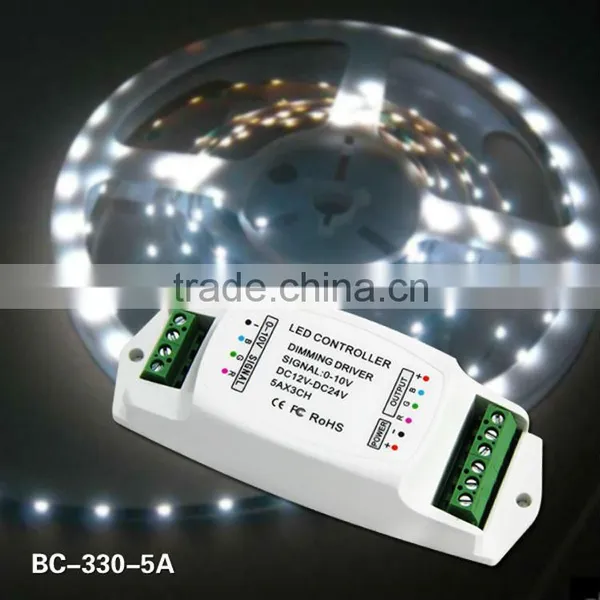

3 channels DC12V-24V 0-10v to pwm dimming driver
Brief Introduction:
As LED and fluorescent lights are becoming more and more popular in the same project, but the dimming
principles of LED and traditional fluorescent lights are different, so we developed a new 0-10V
dimming controller which has solved the compatible problem of fluorescent dimming controller and
LED illumination; this controller can dim both fluorescent and LED lamps at the same time.
Product Specifications:
Model |
BC-330-5A |
Input Voltage |
DC12V-DC24V |
Input Signal |
0-10V analog dimming signal |
Max Load Current |
5A/CH×3CH |
Max output power |
180W(12V) / 360W(24V) |
Output Signal |
Constant voltage PWM |
Product Dimension |
L121×W39×H39(mm) |
Package Size |
L123×W42×H42(mm) |
Gross Weight |
100g |
Product Features:
1. 0-10V to PWM dimming signal conversion.
2. Optical isolation protection for input & output;
3. Compatible with many brand dimming systems.
4. Working voltage from DC12V~DC24V
5. Model: 3 output channels, 5A per channel, 15A totally;
6. Multi units can be worked together or use our power repeaters to control more lamps.
7. Power loss memory function.
Application:
Diagram:

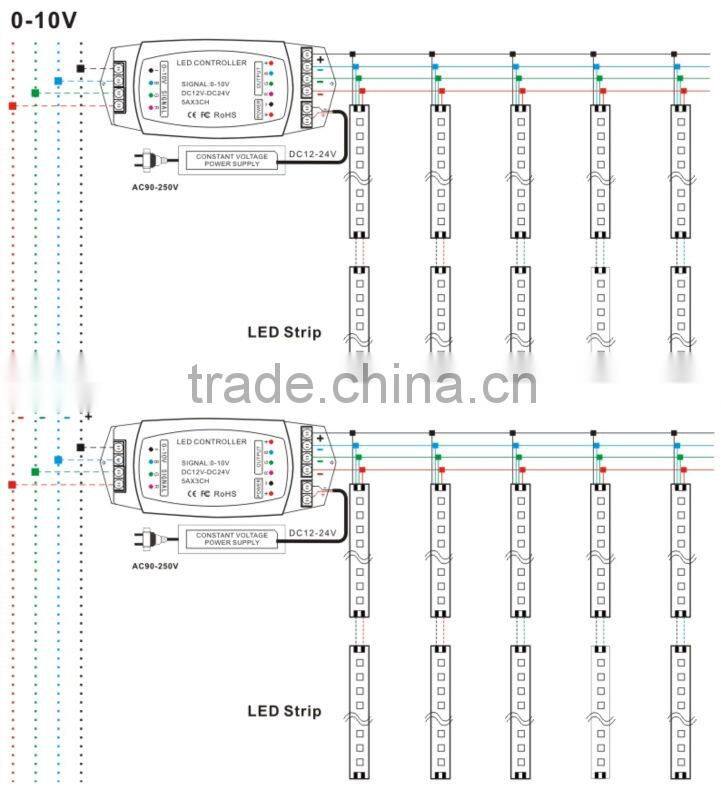

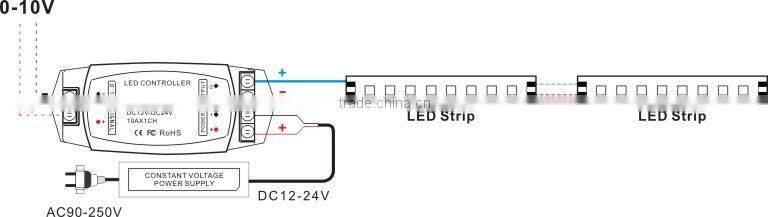

1. Connecting with led strip as sample:
2. Connecting with led power repeater as sample :
Samples orders, OEM/ODM orders are also welcomed.
We have professional R&D team to make new designs according to your needs.
Important Reminder:
For all of our LED controllers and LED dimmers, no matter constant current type or constant voltage type, please always use constant voltage power supply to connect them.
Due to the efficient output of most power supplies are only 80% of the total power, please make sure that the total output power of the power supply is 20% higher than the total power of LED lights.
