3 years warranty constant voltage 4 channels led power amplifier
Introduction:
BC-964 series four channel RGBW amplifier. RGB channel : Maximum 3 Amps per channel/ White channel : 9
Amp /total. Increases the load capability and extends the constant voltage pwm signal. Required if exceeding
the maximum load capability of any universal 4 channels RGBW controller and rgbw dmx512
power decoder. 5~24VDC operation.
Feature :
1.Sustain high frequency common anode PWM input signal.
2.Work with 4 channels led controller for synchronous control
3.Power loss memory function
4.Over current protection and short circuit protection.
Specificatrion:
|
Input voltage |
DC5V-DC24
|
|
Max Load Current
|
RGB: 3A×3CH W: 9A×1CH |
|
Output signal
|
Constant voltage PWM |
|
output power |
RGB:36W×3CH W:108W(12V)
RGB:72W×3CH W:216W(24V)
|
Product show :
Dimension:

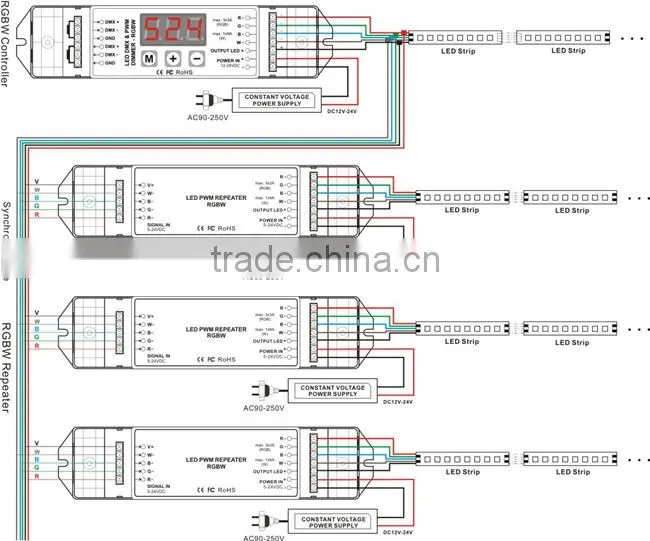

wiring diagram:
1. BC-964 repeater connect to rgbw dmx512 power decoder :
