DC12V-24V DMX PWM Decoder LCD 4-channel
Introduction :

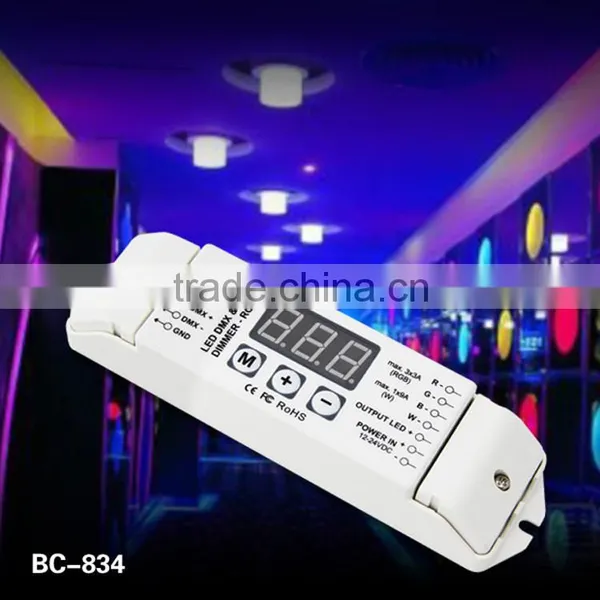

BC-834 dmx512 decoder/driver, it features Terminal Block DMX ports. This unit transfer DMX512 signal to
constant voltage pwm signal.user can choose 1~4 output channels, 4096 Grey Scales. It can be used as
DMX512 master or as DMX decoder.
Feature:
1. Input standard DMX512 signal; 3-digital-display shows DMX address code.
2. 4 channels output; 4096 grey scales each; logarithmic dimming;lamplight soft & stable without strobe flash.
3. DMX Master mode, Slave mode available.
4. 8 color changing modes and 10 speed scales in master mode .
5. Indicator of the DMX512 signal receiving status.
6. Wrong wiring protection at DMX port. Over current protection and short circuit protection.
7. Power loss memory function.
Specification:
Input voltage
| DC12V-DC24V |
Max load current
| RGB: 3A×3CH W: 9A×1CH |
Max Output Power
| RGB:36W/CH W :108W (12V)/RGB:72W/CH W:216W (24V) |
Grey Scale
| 4096 levels 4 |
Input Signal
| DMX512/1990 |
Output Signal
| Constant Voltage PWM |

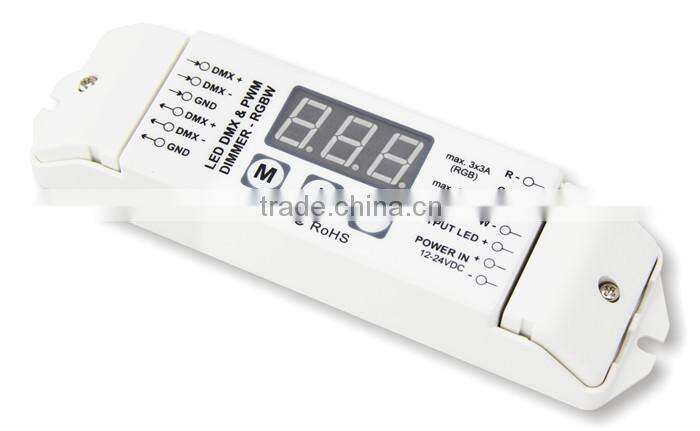

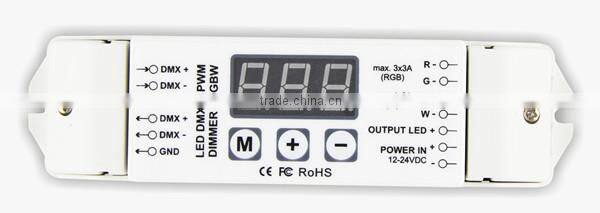

product show :
Wiring diagram:

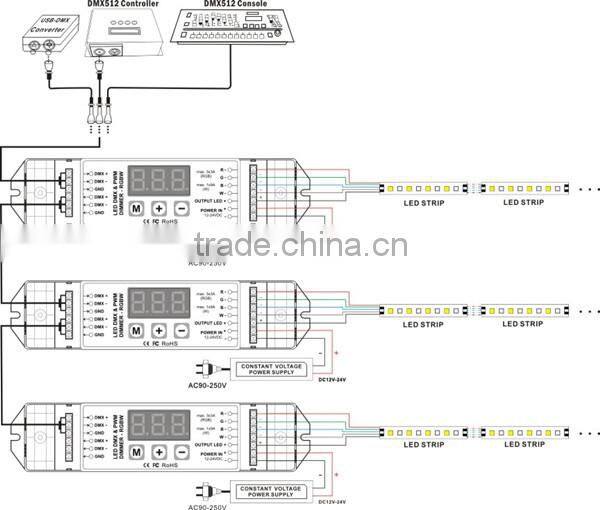

1. Works as master mode: ( Only one decoder is allowed to work as a master)

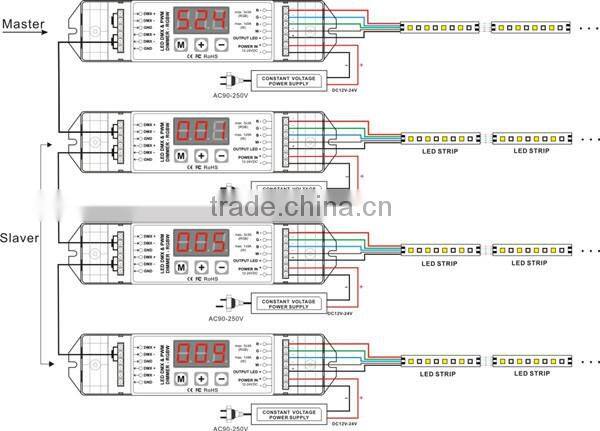

2. Work as slave mode :
