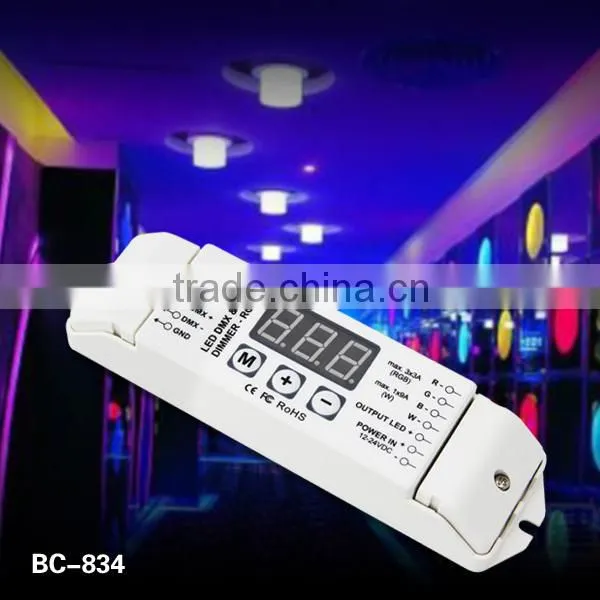

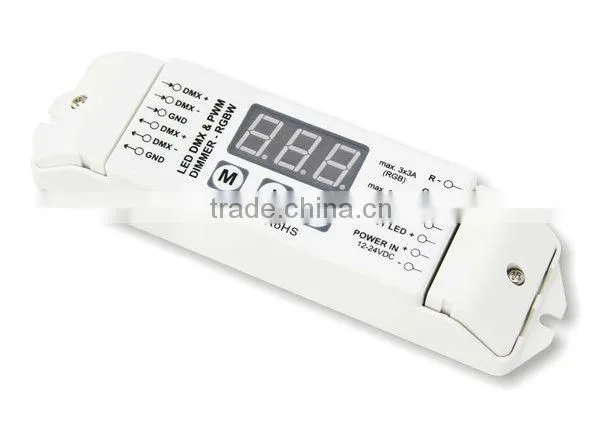

Dc 12v-24v dmx decoder 4ch 512 dmx controller rgbw
Introduction:
Welcome to use the DMX512 Constant Voltage Decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. user can choose 1~4 output channels, 4096 Grey Scales. It can be used as DMX512 master or as DMX decoder to connect computerized digital output consol with analog silicon case and controls LED lamps of architecture and lighting.
Product parameter:
Model |
BC-834 |
Input voltage |
DC12V-DC24V |
Max load current |
RGB: 3A×3CH W: 9A×1CH |
Max Output Power |
RGB:36W×3CH W:108W(12V) / RGB:72W×3CH W:216W(24V) |
Grey Scale |
4096 levels×4 |
Input Signal |
DMX512/1990 |
Output Signal |
Constant Voltage PWMX4 |
Decode Channel |
4CH |
DMX512 socket |
Terminal Block |
Dimension |
L176×W46×H30(mm) |
Weight (G.W) |
172g |
Feature function:
1.Automatically adapts input voltage DC12V-24V.
2. Input standard DMX512 signal; 3-digital-display shows DMX address code..
3.4 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.
4.DMX Master mode, Slave mode available.
5.8 color changing modes and 10 speed scales in master mode .
6.Indicator of the DMX512 signal receiving status.
7.Wrong wiring protection at DMX input port.Over current protection and short circuit protection.
8. Power loss memory function.
Typical Wiring Schematics:
1. RGB controller BC-834 and RGB LED strips.
2.tary RGB controller BC-834 LED power repeater BC-960 and RGB LED strips.
1. Packaging:
After inspection the goods are packed in inner box and then carefully packed in cartons.
2. Shipping:
We will deliver goods by EMS/DHL/FEDEX/UPS and so on, it will takes around 5-7 working days to
arrived.
1. Our products meet international standards. OEM and ODM orders are welcome.
2. For first coopertion, welcome to buy sample to test quality, and we don't require MOQ for
sample, any quantity is available.
3. All products have 3 years warranty.
