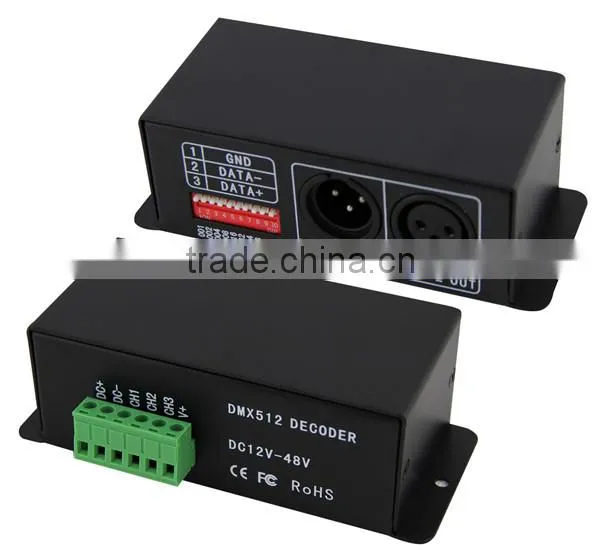

DMX Constant Current Decoder 12-48VDC In, 350/700mA*3CH Out

Name: DMX Constant Current Decoder 12-48VDC In, 350/700mA*3CH Out
Brand: Bincolor
SKU: 131600899
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Bincolor

Model Number:

BC-809

Zhuhai Bincolor Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

zhuhai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Bincolor

Model Number BC-809

DMX Constant Current Decoder 12-48VDC in, 350/700mA*3CH out

Introduction:

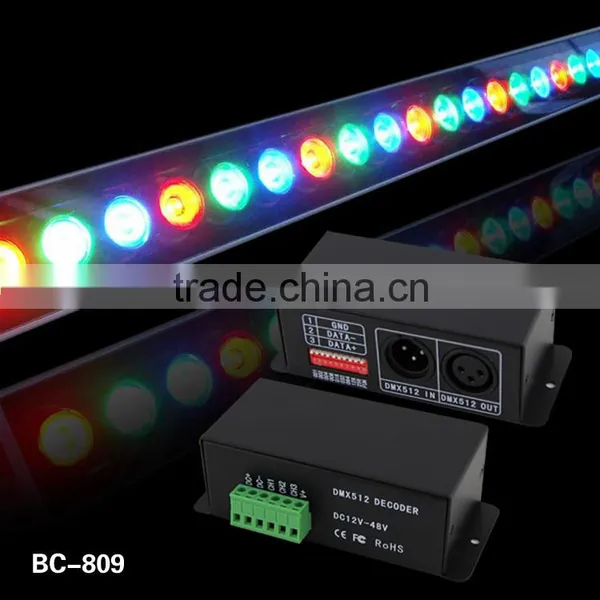

BC-809 constant current rgb dmx512 decoder is specially designed for high power LED lamps. Decoder has 3

output channels, outputs 350mA/700mA constant current PWM driving signal; each channel can realize 256

level grey control. Use DMX512 constant current decoder to directly control high power single/RGB color LED

lamps without constant current IC, which do not need any extra circuit component, it could be connected with

high power LED lamps in series.

Feature:

1.3 Output Channels, connect single/RGB color LED lamps.

2.0-100% brightness adjusting, 256 levels of grey scale per channel.

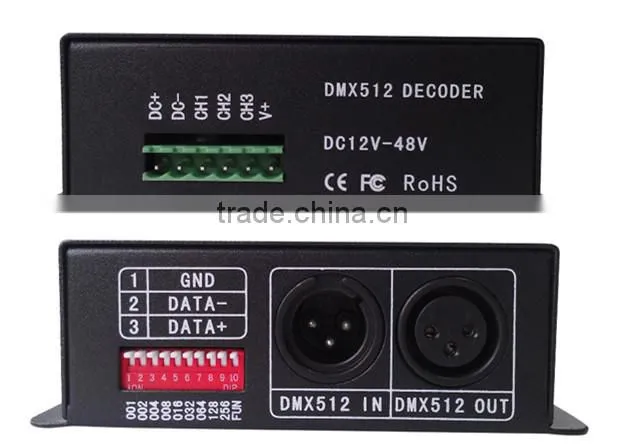

3.Standard DMX512 input protocol, set address with dip-switch.

4.Wide voltage input: DC12V-48V.

5.10 testing modes, 8 levels of changing speed.

6.2 Models: 350mA / 700mA constant current output.

7.Power loss memory function.

Specification :

Input voltage	DC12V-48V	DC12V-48V
Max load current	350MA/CH*3	700MA/CH*3

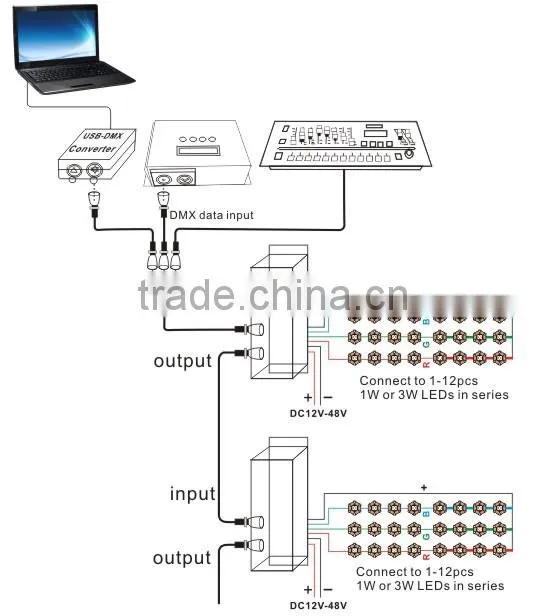

Driving LEDs	12V: 1-3pcs 1W LED 24V: 1-6pcs 1W LED 36V: 1-9pcs 1W LED 48V: 1-12pcs 1W LED	12V: 1-3pcs 3W LED 24V: 1-6pcs 3W LED 36V: 1-9pcs 3W LED 48V: 1-12pcs 3W LED
Grey Scale	256 levels/CH*3	256 levels/CH*3
Input signal	DMX512/1990	DMX512/1990
Output signal	3 Channels CC PWM	3 Channels CC PWM
DMX512 socket:	StandardXLR-3R	StandardXLR-3R
Decoder channels	3Ch or 4Ch (4th CH is shutter strobe)	3Ch or 4Ch (4th CH is shutter strobe)
