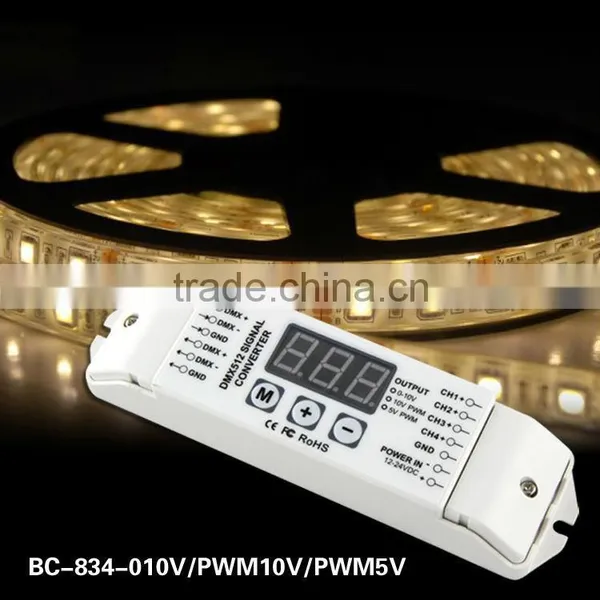

12v 24v dc 4ch converter dmx to 5v pwm
Introduction:
Welcome to use the DMX512 to 0-10V converter, which adopted advanced micro-computer control technology to transfer DMX512/1990 signal to 0-10V signal or PWM 10V,5V signal. User can choose 1~4 output channels; each channel can dim with signal separate.
Product parameter:
Model |
BC-834-PWM 5v |
Input voltage |
DC12V-DC24V |
Input signal |
DMX512/1990 |
Output signal |
4CH PWM 5V |
Max output power |
20mA |
DMX512 socket |
Terminal block |
Product Dimension |
L176×W46×H30(mm) |
Gross Weight |
175g |
Feature function:
1. Automatically adapts input voltage DC12V-24V.
2. Input standard DMX512 signal; 3-digital-display shows DMX address code.
3. 4 isolate output channels.
4. Indicator of the DMX512 signal receiving status..
5. Wrong wiring protection at DMX port.
6. Power loss memory function.
1. Packaging:
After inspection the goods are packed in inner box and then carefully packed in cartons.
2. Shipping:
We will deliver goods by EMS/DHL/FEDEX/UPS and so on, it will takes around 5-7 working days to
arrived.
1. Our products meet international standards. OEM and ODM orders are welcome.
2. For first coopertion, welcome to buy sample to test quality, and we don't require MOQ for
sample, any quantity is available.
3. All products have 3 years warranty.
