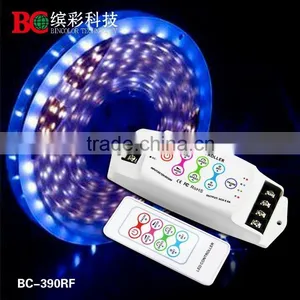

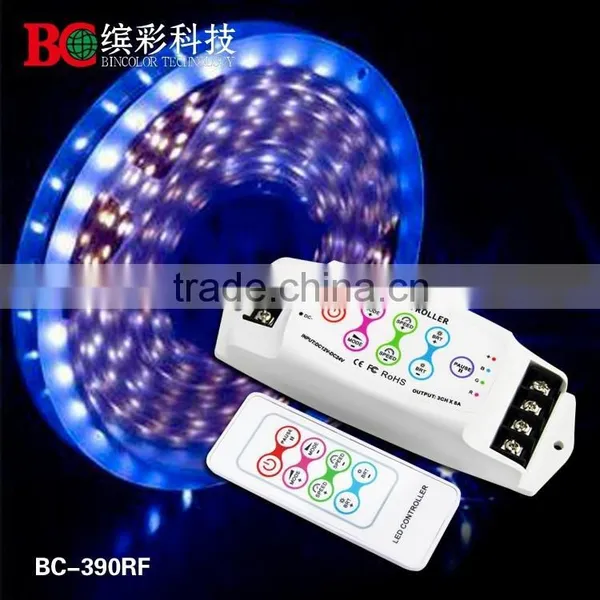

5v - 24v rf wireless remote led lights rgb controller
Introduction:
LED controller is a universal RGB controller for entire color changing, which adopted high-performance single-chip and the most advanced PWM (Pulse-Width-Modulation) controlling technology. It can control all 4-pin 3-loop LED RGB full color lights such as LED module, LED strip, LED SMD tape, and high power LED projector, wall-washer, flood light, underwater lamp etc. Adopt Flame retardant PC ABS casing, touch function button and exquisite appearance.
Product parameter:
Model |
BC-390RF remote |
Input Voltage |
DC12V-DC24V |
Max Current Load |
8A/CH×3 |
Max Output Power |
290W(12V)/580W(24V) |
Scale Levels |
4096 LEVEL /CH×3 |
Working Temperature |
-30°C-55°C |
Product Dimension |
L165xW56xH36(mm) |
Package Dimension |
L180×W65×H53 (mm) |
Weight (G.W) |
210g |
Remote Control Distance |
30m with block; 60m without block |
Control Type |
Common anode |
Feature function:
1.Automatically adapt to LED light which works from DC5V-24V or DC12V-24V.
2.4096 levels of grey scale per RGB even & smooth for color gradual changes, without any flashes.
3.36 fantastic modes such as color smooth, color skipping, horse race, strobe, etc.
4.Can choose a changing speed and brightness in a certain mode independently.
5.Can stop at static single color, speed & brightness adjustable at pause status.
6.Working with power repeater to expand power output unlimitedly.
Typical Wiring Schematics:
1. RGB controller BC-390RF and RGB LED strips.
2.tary RGB controller BC-390RF, LED power repeater BC-960 and RGB LED strips.
1. Packaging:
After inspection the goods are packed in inner box and then carefully packed in cartons.
2. Shipping:
We will deliver goods by EMS/DHL/FEDEX/UPS and so on, it will takes around 5-7 working days to
arrived.
1. Our products meet international standards. OEM and ODM orders are welcome.
2. For first coopertion, welcome to buy sample to test quality, and we don't require MOQ for
sample, any quantity is available.
3. All products have 3 years warranty.
