                             24CH Channel 8 group LED DMX512 Decoder DC12V-24V DMX512 RGB Controller Max 72A





Introduction :





BC-824 24CH RGB DMX decoding driver works to convert universal DMX512/1990 digital signal to PWM signal,



which controlled by DMX512 console, with 256 levels grey scale output per channel. Adopting unique



programming technology, Creating exclamatory, perfect color fade & smooth effect, simultaneously let LED



color more affluent.







Feature :





1.24 output channels, 3A per channel which can connect RGB full-color lights.


2.0-100% smooth brightness adjusting, 256 grey steps per channel.


3.Universal standard DMX512 input protocol; addresses can be set up by DIP switch.


4.Working voltage from DC12V-DC24V.


5.10 self-changing modes, 8 speed levels.



6. Power loss memory function.







Specification :







Model

BC-824

Input voltage

DC12V-24V

Max load current

3A/CH×24

Max output power

860W/1720W(12V/24V )

Output Scale level

256 levels

Input signal

DMX512/1990

Output DMX Channel

24Ch CV PWM

working temperature

-30°C-65°C

Dimension

L260×W110×H40(mm)

Package Size

L270×W130×H45(mm)

Weight (G.W)

920g

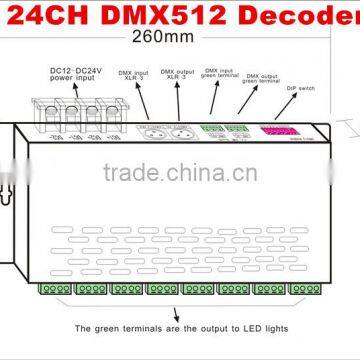

Product show :







      24CH Channel 8 group LED DMX512 Decoder DC12V-24V DMX512 RGB Controller Max 72A







Wiring diagram :







            24CH Channel 8 group LED DMX512 Decoder DC12V-24V DMX512 RGB Controller Max 72A









   24CH Channel 8 group LED DMX512 Decoder DC12V-24V DMX512 RGB Controller Max 72A
