Four-System Satellite signal indoor coverage solution GNSSRK-1

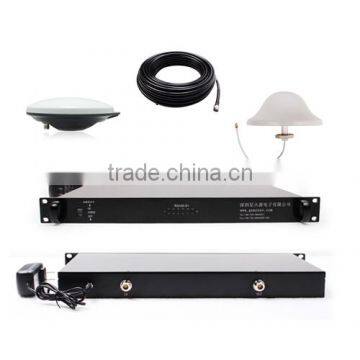

Standard Configurations

◇ Step Adjustable Amplifier:RGA30‐SV ,1 ea;

◇ Receiving Antenna: S440,1 ea;

◇ Cable Assembly:RG8,30M, 1ea;

◇ Cable Assembly:KSR240,10M,1 ea;

◇ Sending Antenna:GRA10,1 ea.
◇ Ligting‐protector:1 ea;

Functional Description

GNSSRK‐1 is a repeater operates by receiving GPS/GLONASS/Beidou2/Galileo satellite signals with an antenna located outside the building and re‐radiating the signals into the indoor area or covered space where satellite signal cannot reach.

GNSSRK‐1 is a single point GPS/GLONASS/Beidou2/Galileo repeater, one transmitting antenna transmit  GPS/GLONASS/Beidou2/Galileo signal. This solution offer adjustable test signal to receiver.

If need extend the system, you can add assemblies and sending antennas, so as to cover satellite signal indoor large area and more rooms or buildings.

Typical Application

☆ For GPS/Beidou2/Glonass /Galileo products testing

     For testing the cell‐ phone with GPS/Beidou2/Glonass/Galileo , PND, car navigators, tracker, survey          products, etc.

☆ For the purpose of GPS/ Beidou2/Glonass/Galileo signal covering

     Car parks, lab, aviation manufacturing hangar, trade shows, Emergency‐, safety vehicles, public                   transportation etc.
