10dB 8 Way Splitter GPS Splitters

The RGS108 GPS Splitter is a one-input, eight-output GPS device. This product typically finds application where an input from an active GPS roof antenna is split evenly between four receiving GPS units. In this scenario, the RGS108 can be configured to pass DC from an RF output (J1) to the antenna input port in order to power an active GPS antenna on that port. The others outputs would feature a 200 Ohm DC load to simulate an antenna DC current draw for any receiver connected to those ports.

Design For Wireless Infrastructure Applications

Gain :   0dB,10dB (can be specified)

Response For

  GPS:L1,L2,L2C,L5;

  Glonass:G1,G2;
  Galileo:L1,E1,E2,E5(E5a,E5b),E6;
  Beidou2:B1,B2,B3;
  IRNSS L1,L5;

  OmniStar

  High Isolations >30dB

Electrical Specifications, Operating Temperature -40 to 85°c

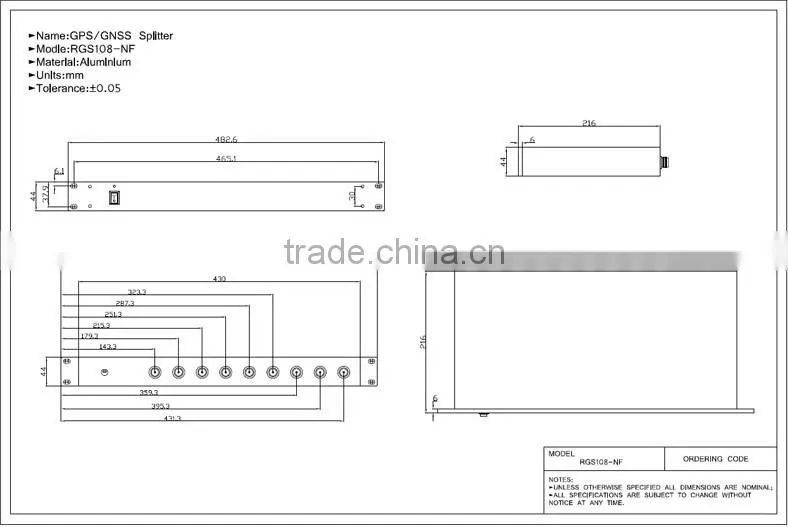

[Product details]

[Product Specifications]

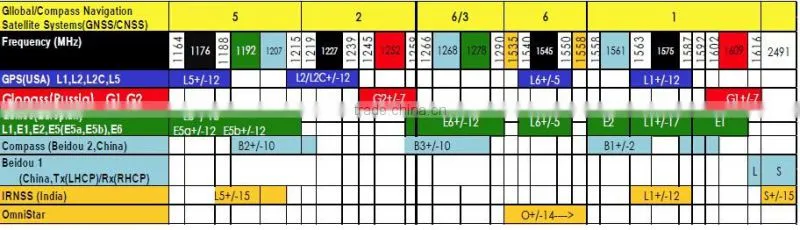

Frequency reference table:

Warranty:
1. 1years warranty for the products.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead
