Product Description



  • 16 Ways outputs;
  • Pass DC or Block DC on All Ports;
  • Response For
    •   GPS:L1,L2,L2C,L5;
    •   Glonass:G1,G2;
    •   Galileo:L1,E1,E2,E5(E5a,E5b),E6;
    •   Beidou2:B1,B2,B3;
    •   IRNSS L1,L5;
    •   OmniStar
  • Connectors: SMA female (N Female, BNC Female optional)



    The RGS116 GPS Splitter is a one-input, sixteen-output GPS device. This product typically finds application where an input from an active GPS roof antenna is split evenly between sixteen receiving GPS units. In this scenario, the RGS116 can be configured to pass DC from an RF output (J1) to the antenna input port in order to power an active GPS antenna on that port. Output ports(J2-J16) would feature a 200 Ohm DC load to simulate an antenna DC current draw for any receiver connected to those ports.

Applications

   Design For Wireless Infrastructure Applications;

    Gain :   0dB,10dB ,31dB(can be specified);

   Response For:

           GPS:L1,L2,L2C,L5;

           Glonass:G1,G2;
           Galileo:L1,E1,E2,E5(E5a,E5b),E6;
           Beidou2:B1,B2,B3;
           IRNSS L1,L5;

          OmniStar

          High Isolations >30dB



Specifications

Electrical Specifications, Operating Temperature -40 to 85°c



Parameter Conditions Min Typ Max Units
Freq.Range Ant-Any Port 1.1   1.7 GHz
In&Out Imped In,all output ports   50   Ω

Gain

0dB

10dB

 In-Output ports,Unused Ports-50Ω -1 0 1 dB
9 10 11
Input SWR All Ports-50Ω     2.0:1 -
Output SWR All Ports-50Ω     2.0:1 -

Nois Figure

(Amplified)

 Ant-Any Port,Unused Ports-50Ω     3 dB

Gain Flatness

(Amplified)

 |L1-L2|,Ant-Any Port,Unused Ports-50Ω     3 dB

Amp.Balance

 |J1-J2|,Ant-Any Port,Unused Ports-50Ω     0.5 dB

Phase Balance

 Phase(J1-J2),Ant-Any Port,Unused Ports-50Ω     1.0 deg

Group Delay Flatness

       1 ns

Isolation Amplified



             Gain:10dB

 Adjacent Ports:In-50Ω 28     dB
Opposite Ports:In-50Ω 34
Adjacent Ports:In-50Ω 28
Opposite Ports:In-50Ω 34

AC IN

 Wall Mount transformer   230   VAC
DC IN DC Block, All ports with a 200Ω Load     14 VDC
PASS DC, Amplified 3   16
PASS DC, Passive     16
Powered(9V) 5 9 16
Powered(-48V) -60 -48 -40 Optional
Device Current       48 mA
Current Pass DC,No powered configuration,DC input on J1     250 mA
Powered,to be specified       mA

Max RF Input

(Amplified)

 Max RF input without damage     0 dBm



 [ Performance Data]

16 way GPS GNSS Splitter Rackmount GPS splitters

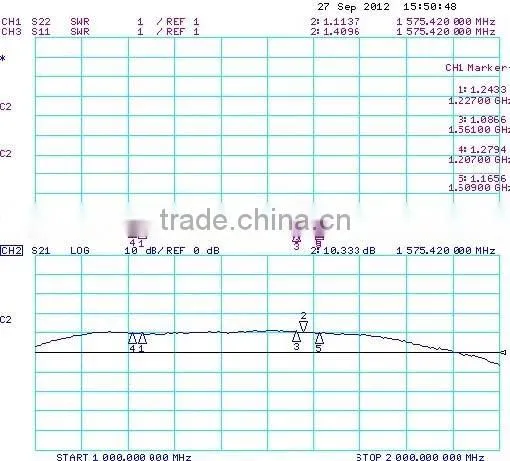

                                                10dB Gain and SWR Specifications

16 way GPS GNSS Splitter Rackmount GPS splitters

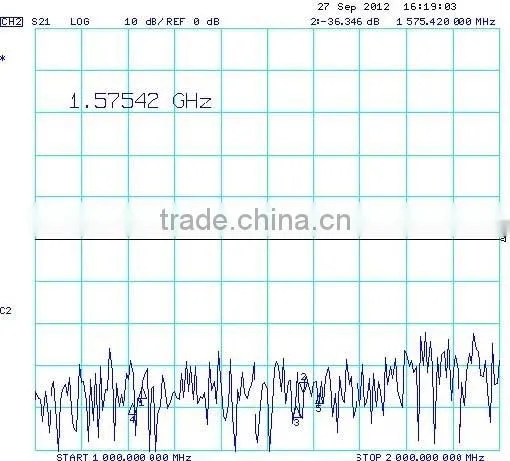

                Isolation Specification of 10dB Gain

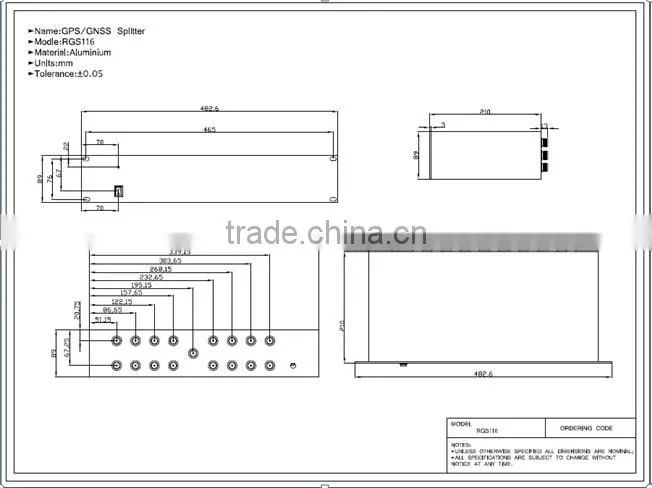

[ Mechanical]



16 way GPS GNSS Splitter Rackmount GPS splitters

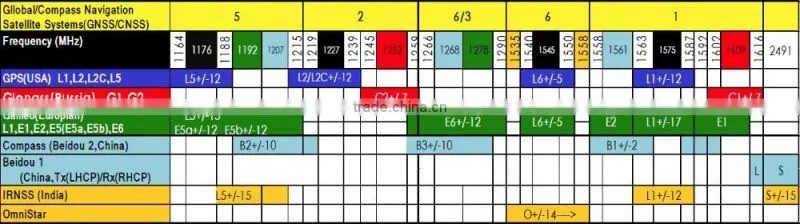

Frequency reference table:

16 way GPS GNSS Splitter Rackmount GPS splitters
