GNSSRK is a repeater operates by receiving GPS/GLONASS/Beidou2… satellite signals with an antenna located outside the building and re-radiating the signals into the indoor area or covered space where satellite signal cannot reach.
GNSSRK is a single point GPS/GLONASS/Beidou2… repeater, one transmitting antenna transmit GPS/GLONASS signal. This solution offer adjustable test signal to receiver.
If need extend the system, you can add assemblies and sending antennas, so as to cover satellite signal indoor large area and more rooms or buildings.
Typical Application:
- For GPS/GNSS products testing
* For testing the cell- phone with GPS, PND, car navigators, tracker, survey products, etc.
- For the purpose of GPS signal covering
* Car parks, lab, aviation manufacturing hangar, trade shows, Emergency-, safety vehicles, public transportation etc.

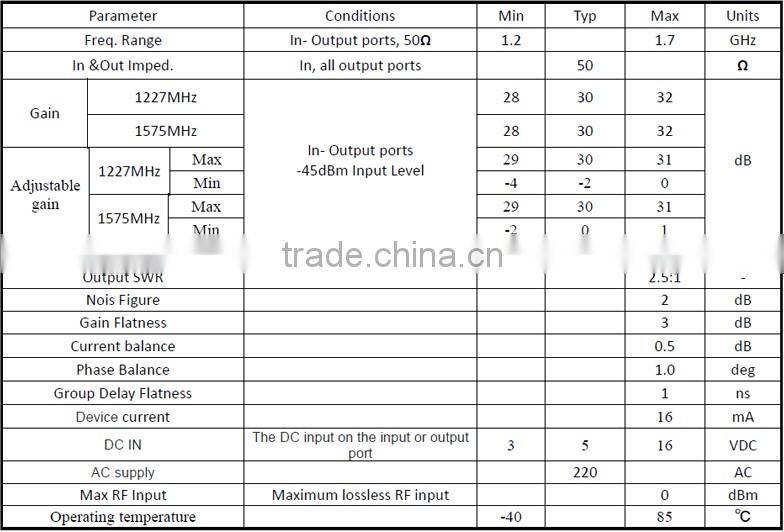

Technical Parameters:
- GPS:L1,L2,L5;
- Glonass:G1,G2;
- Galileo:L1,E1,E2,E5a,E5b;
- Beidou2:B1,B2,B3;

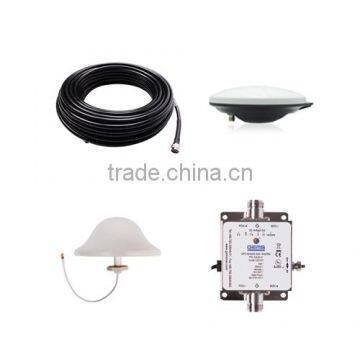

Standard Configurations:
- Gain Controller:GA30-V,1 ea;

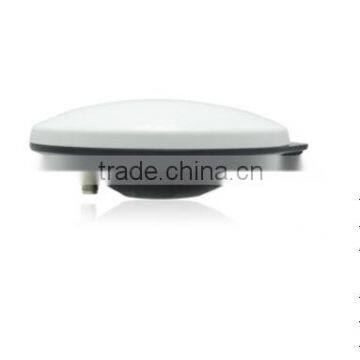

- Receiving Antenna: S440,1 ea;

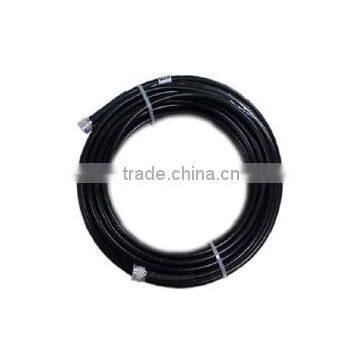

- Cable Assembly:RG8,30M, 1ea;
- Cable Assembly:KSR240,10M,1 ea;

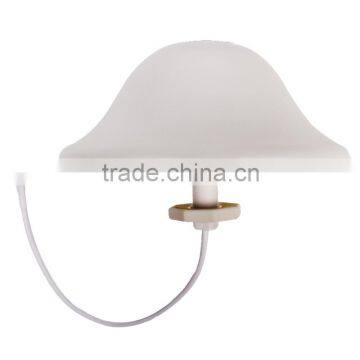

- Sending Antenna: GRA10,1 ea.
- Ligting-protector:1 ea;

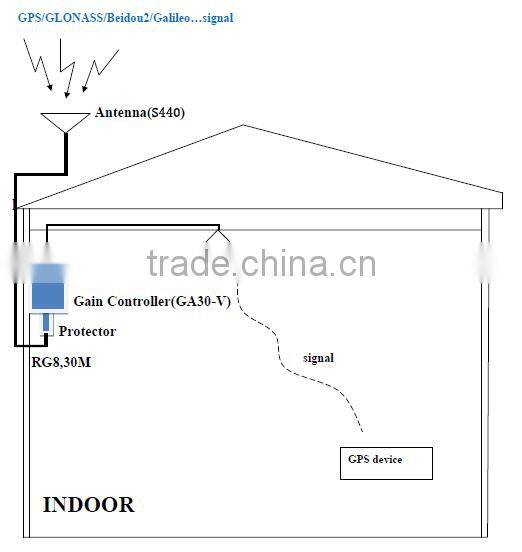

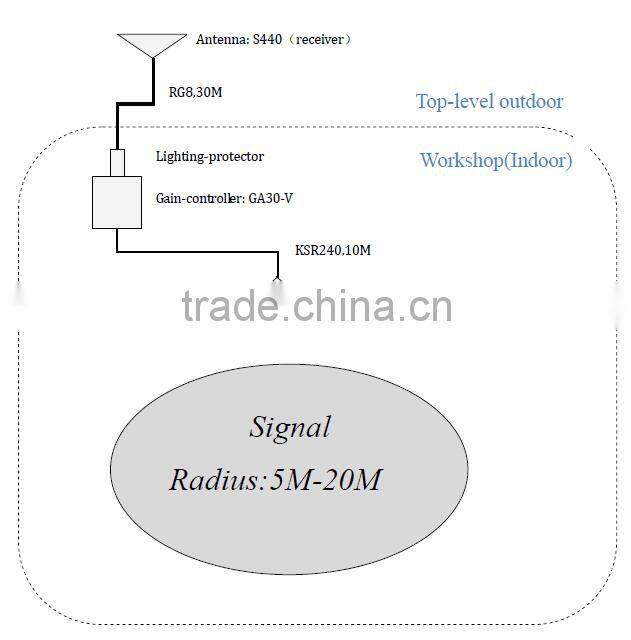

system structure (Under standard configuration)
[System Schematic]
1. GPS/GLONASS/Beidou2…antenna(S440) be installed on roof of the building;
2. Cable assembly RG8 fixed along the out wall, one terminator connects S440,the another to protector at the appropriate place. In some special environment, select PE or PVC material plastic pipe to protect the cable assembly is quite sensible;
3. Protector and Gain controller are fixed on the wall indoor;
4. Cable assembly KSR240 is fixed along the ceiling of the operating place;
5. Antenna S440, be fixed on the ceiling or crossbeam.
According to the actual environment, you can adjust positions of some parts, which can make you the adjust, change and overhaul more easily.
Warranty:
1. 1years warranty for the products.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead
GEMS NAVIGATION was established in 2007, professionally designs, products and sales of coaxial microwave devices and equipment. GPS indoor coverage systems and accessories, high-power coaxial attenuators, high-power coaxial load, we accumulated many years of designing and manufacturing experience, our own designed and product of GPS indoor coverage systems and related GPS power splitter and amplifier, GPS antenna and other products widely used in microwave communications, mobile communications, high-precision measurement, power, research institutions, colleges and universities, manufacturing and other fields.
