The iRGS132 GPS Splitter is a one-input, thirty two-output GPS device. When entering the GNSS signal system management terminal to set the IP, the software can display the power of each port , the number of GPS visible satellites and the value of C / No , the number of Beidou visible satellites and the value of C / No .
The iRGS132 typically finds application where an input from an active GPS roof antenna is split evenly between thirty two receiving GPS units. In this scenario, the iRGS132 can be configured to pass DC from an RF output (J1) to the antenna input port in order to power an active GPS antenna on that port. Output ports(J2-J32) would feature a 200Ohm DC load to simulate an antenna DC current draw for any receiver connected to those ports.
[Technical Parameters]
- Application in large GPS indoor coverage
- Port has control and alarm functions
- Show information of GPS/Beidou2 B1 in time
- Gain 0dB, 10dB (can be specified)
- Response For
* GPS:L1,L2,L2C,L5;
* Glonass:G1,G2;
* Galileo:L1,E1,E2,E5(E5a,E5b),E6;
* Beidou2:B1,B2,B3;*IRNSS:L1,L5;
* OmniStar
- High Isolations >30dB

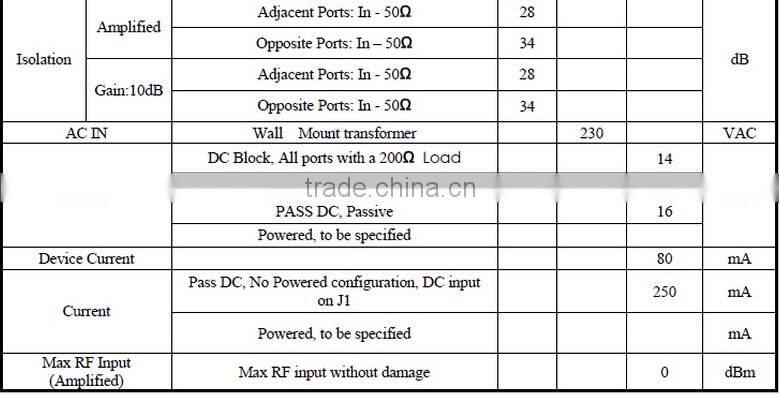

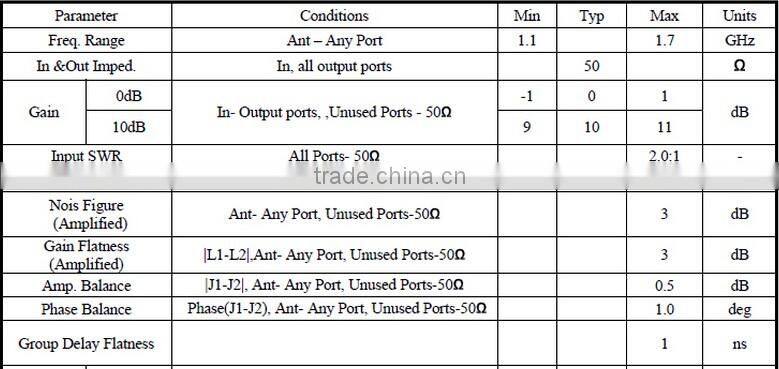

Electrical Specifications, Operating Temperature -40 to 85°c

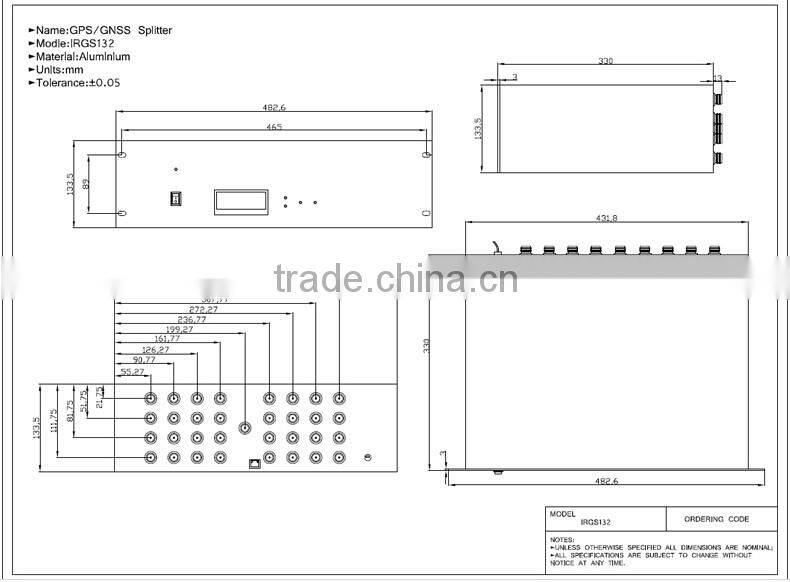

[ Mechanical]

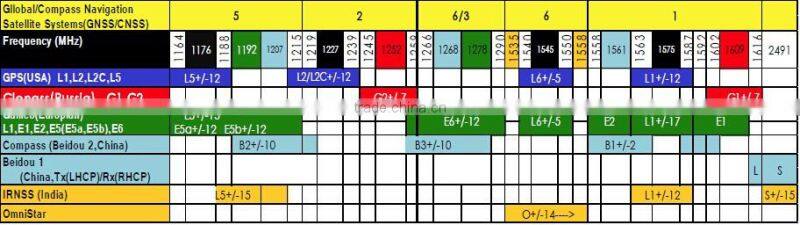

Frequency reference table:
GEMS NAVIGATION was established in 2007, professionally designs, products and sales of coaxial microwave devices and equipment. GPS indoor coverage systems and accessories, high-power coaxial attenuators, high-power coaxial load, we accumulated many years of designing and manufacturing experience, our own designed and product of GPS indoor coverage systems and related GPS power splitter and amplifier, GPS antenna and other products widely used in microwave communications, mobile communications, high-precision measurement, power, research institutions, colleges and universities, manufacturing and other fields.
Tel: +86-755-29644311 Fax: +86-755-29644383
[Our client]
Warranty:
1. 1 years warranty for the products.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
