32 Way Beidou Power Splitter GPS Splitters

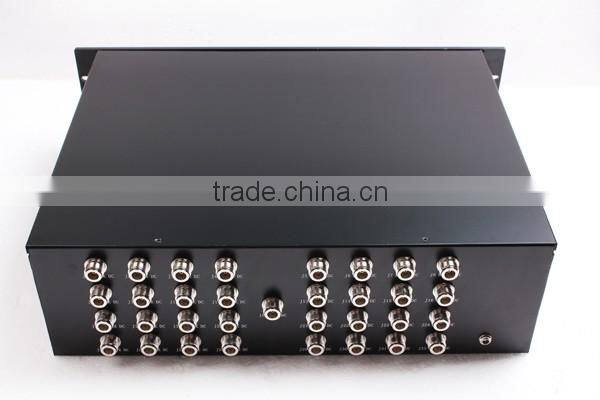

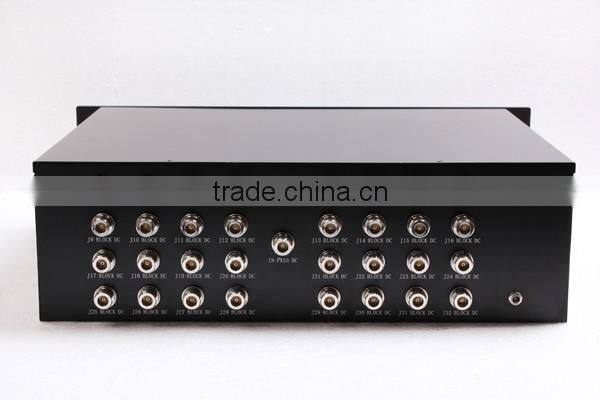

The RGS132 GPS Splitter is a one-input, thirty two-output GPS device. This product typically finds application where an input from an active GPS roof antenna is split evenly between thirty two receiving GPS units. In this scenario, the RGS132 can be configured to pass DC from an RF output (J1) to the antenna input port in order to power an active GPS antenna on that port. Output ports(J2-J32) would feature a 200 Ohm DC load to simulate an antenna DC current draw for any receiver connected to those ports.

Design For Wireless Infrastructure Applications

Gain :   0dB,10dB ,31dB(can be specified)

Response For

  GPS:L1,L2,L2C,L5;

  Glonass:G1,G2;
  Galileo:L1,E1,E2,E5(E5a,E5b),E6;
  Beidou2:B1,B2,B3;
  IRNSS L1,L5;

  OmniStar

  High Isolations >30dB

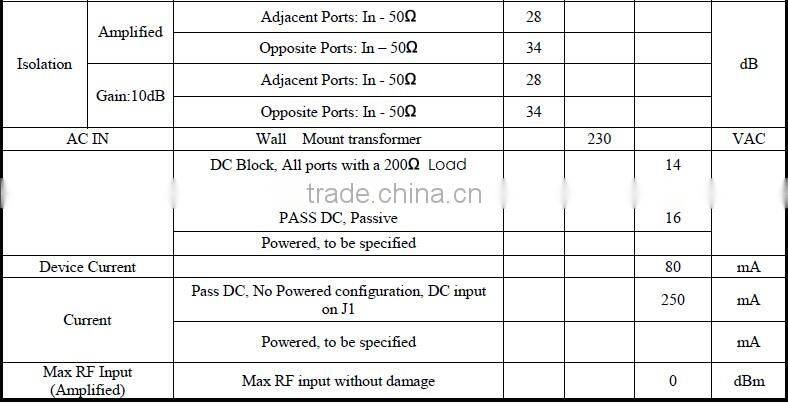

Electrical Specifications, Operating Temperature -40 to 85°c

 [ Performance Data]

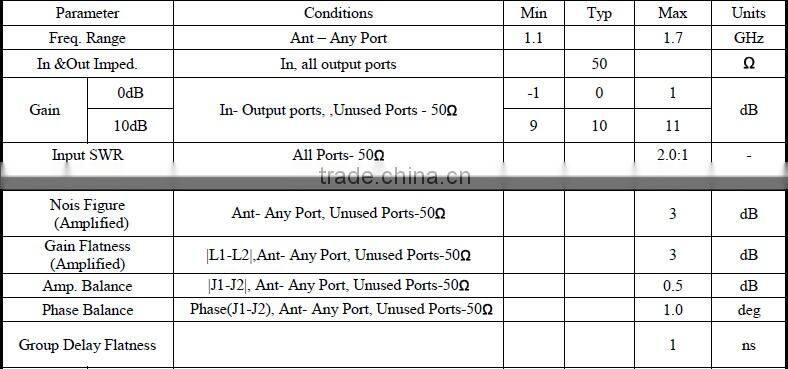

                                                10dB Gain and SWR Specifications

                Isolation Specification of 10dB Gain

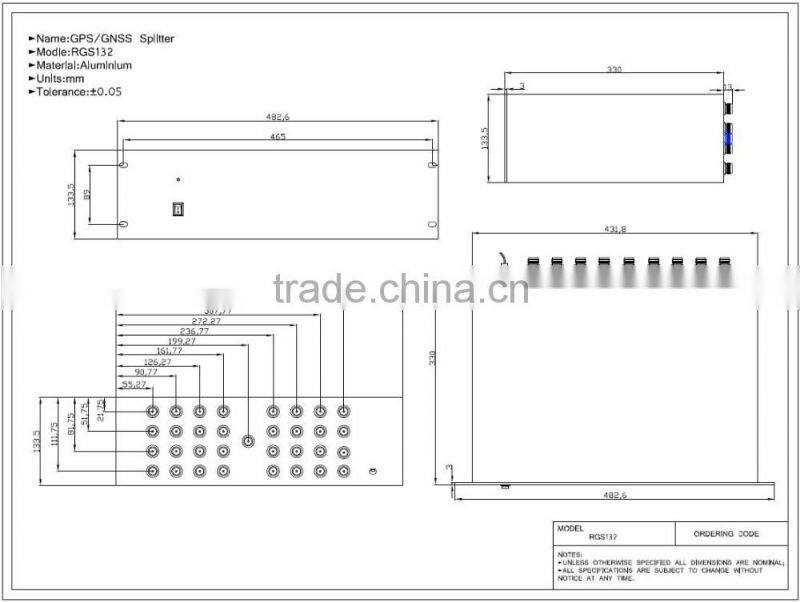

[ Mechanical]

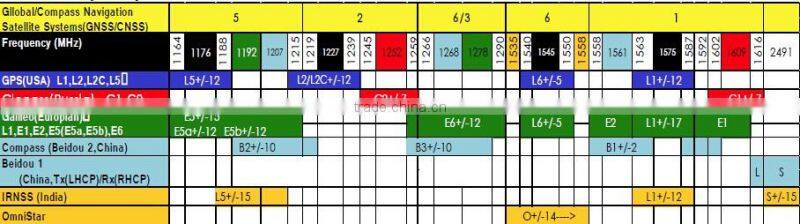

Frequency reference table:

Warranty:
1. 1years warranty for the products.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead
