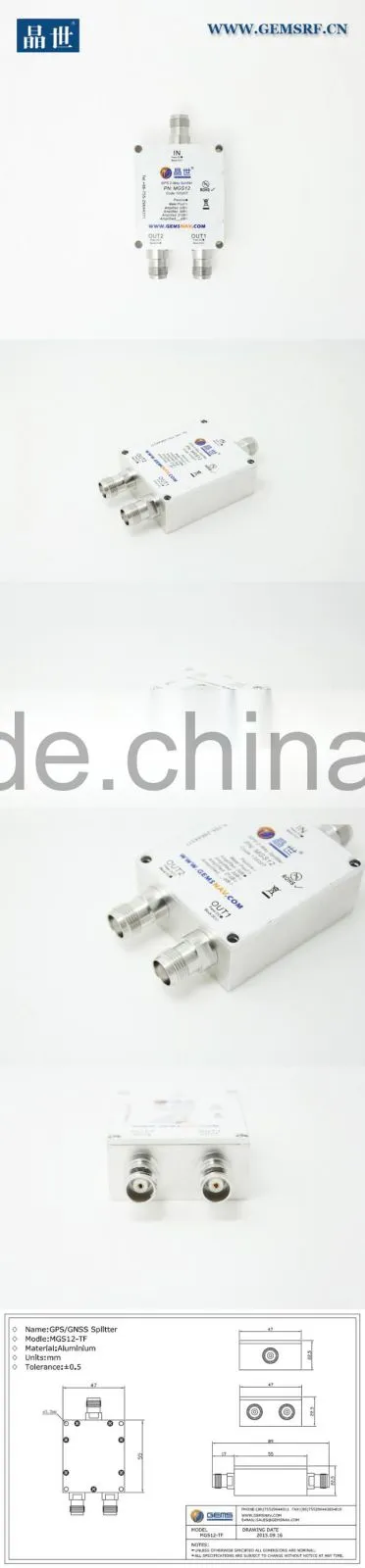

The MGS12 GPS Splitter is a one-input, two-output GPS device. This product typically finds application where an input from an active GPS roof antenna is split evenly between four receiving GPS units. In this scenario, the MGS12 can be configured to pass DC from an RF output (J1) to the antenna input port in order to power an active GPS antenna on that port. The second output (J2) would feature a 200 Ohm DC load to simulate an antenna DC current draw for any receiver connected to those ports.
Design For Wireless Infrastructure Applications;
Gain : 0dB, 21dB And Passive Version Available;
Response For:
GPS:L1,L2,L2C,L5;
Glonass:G1,G2;
Galileo:L1,E1,E2,E5(E5a,E5b),E6;
Beidou2:B1,B2,B3;
IRNSS L1,L5;
OmniStar;
High Isolations > 28dB
Electrical Specifications, Operating Temperature -40 to 85°c
| Parameter | Conditions | Min | Typ | Max | Units |
| Freq.Range | All-Any Port | 1.1 | 1.7 | GHz | |
| In&Out Imped | In, all output ports | 50 | Ω | ||
|
Gain: -0dB -Amplified(Normal) |
In-Output, Unused Ports-50Ω | -1 | 0 | 1 | dB |
| 20 | 21 | 22 | |||
| Loss, Passive | In-Output ports, Unused Ports-50Ω | 3.5 | 4.5 | 5.5 | dB |
| Input SWR | 1.5:1 | - | |||
| Output SWR | 1.5:1 | - | |||
| Nois Figure-Amplified | 3 | dB | |||
|
Gain Flatness -Amplified -Passive |
2 | dB | |||
| 1 | dB | ||||
| Amp.Balance | 0.5 | dB | |||
| Phase Balance | 1.0 | deg | |||
| Group Delay Flatness | 1 | ns | |||
|
Isolation Passive 0~10dB 10~20dB |
Unused Ports-50Ω(GPS L1) | 18 | dB | ||
| Input-50Ω | 28 | ||||
| Input-50Ω | 18 | ||||
| DC IN | DC Black,All out ports with a 200Ω Load | 14 | VDC | ||
| PASS DC,Amplified | 3.5 | 16 | |||
| PASS DC,Passive | 16 | ||||
| Device Current | 16 | ||||
| Current | Pass DC,No Powered configuration,DC input on J1 | 250 | mA | ||
| Powered,to be specified | mA | ||||
|
Max RF Input -Amplified -Passive |
Max RF input without damage | 0 | dBm | ||
| 30 |

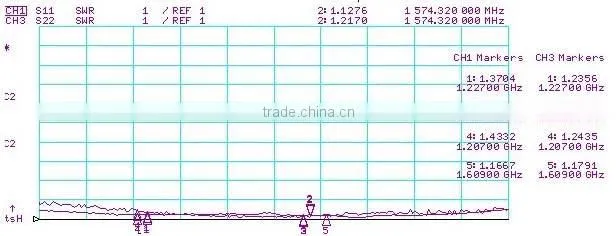

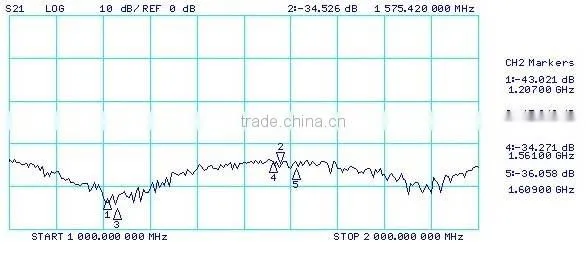

[ Performance Data]

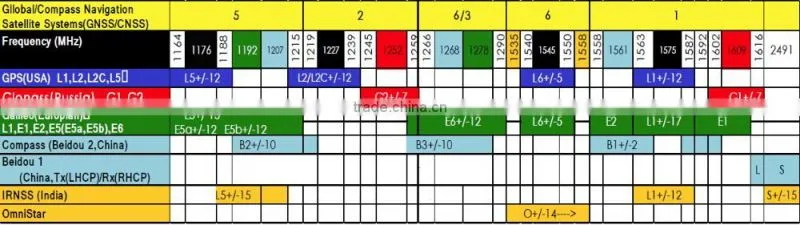

Frequency reference table:
Warranty:
1. 1 years warranty for the products.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
