GNSSRK-8 is a repeater operates by receiving GPS/GLONASS/Beidou2/Galileo satellite signals with an antenna located outside the building and re-radiating the signals into the indoor area or covered space where satellite signal cannot reach.
GNSSRK-8 is a eight point GPS/GLONASS/Beidou2/Galileo repeater, transmitting GPS /GLONASS/Beidou2 /Galileo signal. This solution offer adjustable test signal to receiver.
If need extend the system, you can add assemblies and sending antennas, so as to cover satellite signal indoor large area and more rooms or buildings.
Typical Application:
-
For GPS/Beidou2/Glonass/Galileo products testing
For testing the cell-phone with GPS/Glonass/Beidou2/Galileo products,PND,car navigators,tracter,survey products etc.
-
For the purpose of GPS/Beidou/Glonass/Galileo signal covering
Car parks, lab, aviation manufacturing hangar, trade shows, Emergency, safety vehicles, public transportation etc.

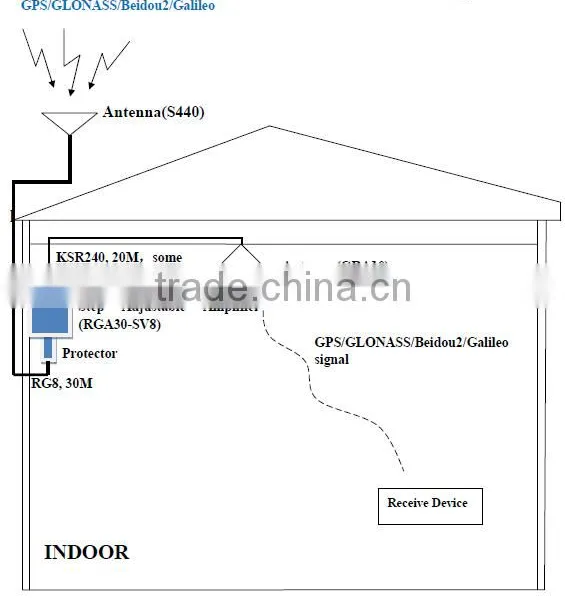

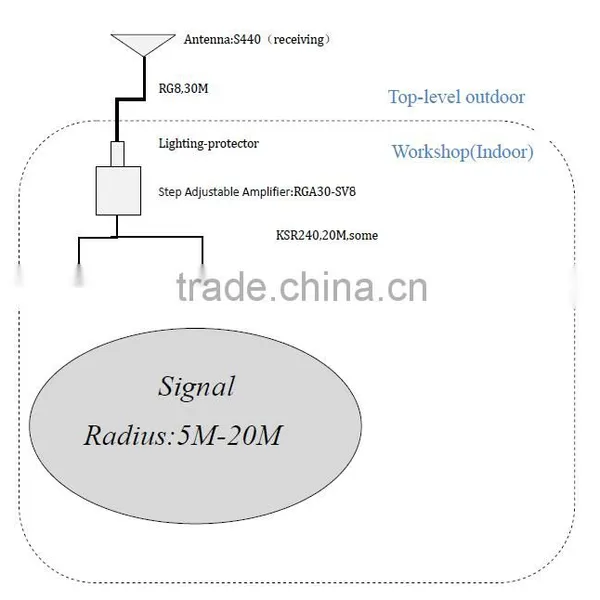

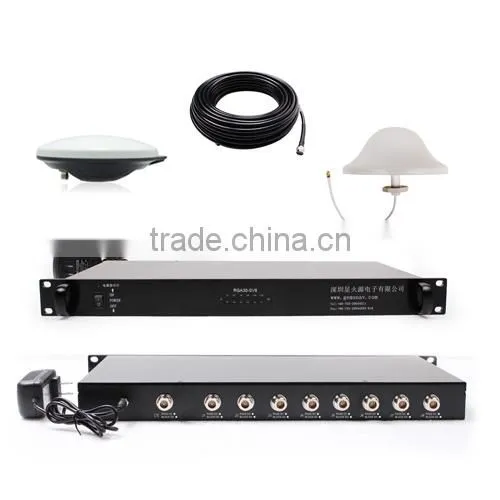

Kits include

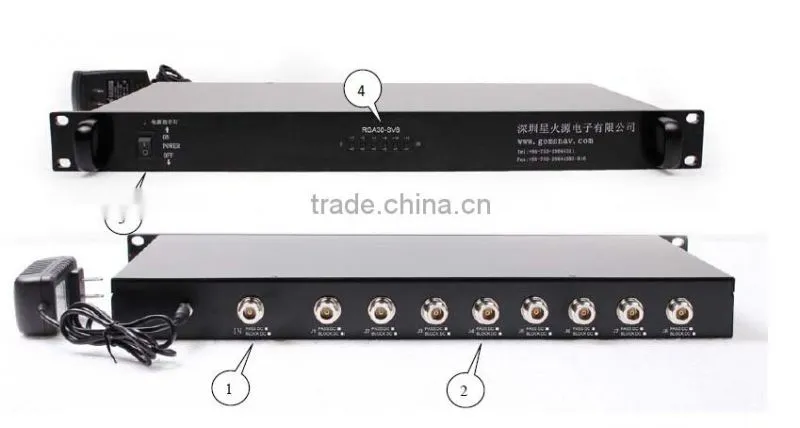

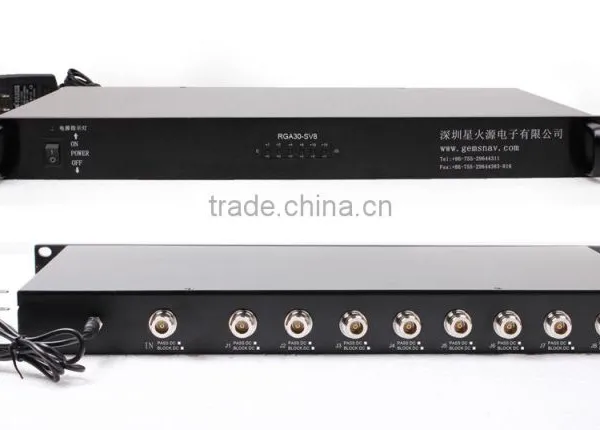

- Step Adjustable Amplifier RGA30-SV8
Used to adjust system gain,0-35 dB adjustable, you can control when needed.
with AC220/9V power adapter, supply power to system and itself.
1 and 2 are input/output, connect to cable assembly, N female(Can be customized).
3 For power control switch. system power-on when allocated to upward, opposite, system stops working.
4 Toggle switch can adjust the gain ; the position(figure) that toggle switch stop represents the total value of gain reduction (on the basis of maximum gain 35dB).
Specification:
Electrical Specifications,Operating Temperature -40 to 85 ℃
| Parameter | Conditions | Min | Typ | Max | Units |
| Freq,Range | In-Output ports, 50 Ω | 1.2 | 1.7 | GHz | |
| In&Out Imped | In,all output ports | 50 | Ω | ||
|
Gain 1270MHz 1227MHz 1561MHz 1575MHz 1609MHz 1527MHz 1651MHz 1375MHz 1661MHz |
In-Output ports -45dBm Input Level |
0~35 | dB | ||
| (0~35)-1.5 | 0~35 | (0~35)+1.5 | |||
| (0~35)-1.5 | 0~35 | (0~35)+1.5 | |||
| (0~35)-1.5 | 0~35 | (0~35)+1.5 | |||
| (0~35)-1 | 0~35 | (0~35)+1 | |||
| (0~35)-1.5 | 0~35 | (0~35)+1.5 | |||
| (0~35)-1.5 | 0~35 | (0~35)+1.5 | |||
| (0~35)-1.5 | 0~35 | (0~35)+1.5 | |||
| (0~35)-1 | 0~35 | (0~35)+1 | |||
| (0~35)-1.5 | 0~35 | (0~35)+1.5 | |||
| Input SWR | 2.5:1 | - | |||
| Output SWR | 2.5:1 | - | |||
| Noise Figure | 3 | dB | |||
| Gain Flatness | 3 | dB | |||
| Phase Balance | 1.0 | deg | |||
| Group Delay Flatness | 1 | ns | |||
| Current | Pass DC, No Power configuration,DC input on Out Port | 250 | mA | ||
| Max RF Input | Max RF input without damage | 0 | dBm |
- GPS antenna(Receiving antenna): S440
Function: Receive satellite signal:
GPS L1,L2,L5;
GLONASS G1,G2;
Beidou2 B1,B2,B3;
Galileo E1,E2,E5a,E5b;
Electrical parameter:
| Frequency [MHz] | 1555~1623/1164~1288 |
| Gain[dBi] | 40±2(LNA included) |
| Polarization | right-hand circular polarized(RHCP) |
| Axial ratio [dB] | ≤3 |
| Elevation Coverage | 360° |
| Input(VSWR) | ≤2.0 |
| Impedance | 50Ω |
Low Noise Amplifier: Specification:
| Gain(dB) | 40±2 |
| Flatness in bandwidth(dB) | ±2 dB |
| Noise Figure(dB) | ≤2 |
| Output (VSWR) | ≤2.0 |
| Input(VSWR) | ≤2.0 |
| DC Voltage(V) | 3.3-12V |
| DC Current(mA) | ≤45 |

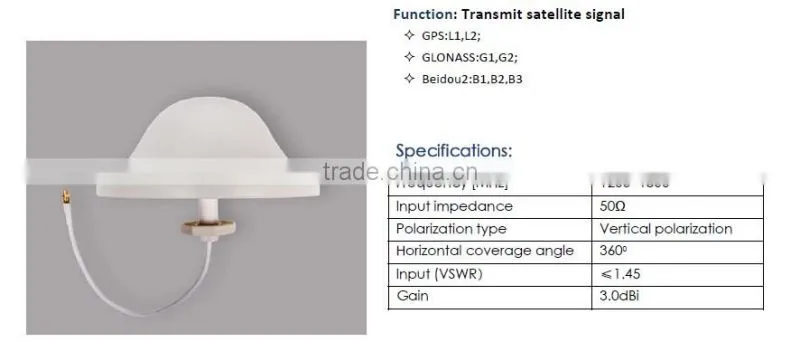

- Transmiting antenna:GRA10
Mechanical Characteristic:
| Dimension | φ 186×85 |
| Weight | 400g |
| Circumstance | Indoor |
| Material | UV-Protected ABS |
| Connector | SMA/N Female |
| Operating temperature | -40~+60℃ |
| Limit Temperature | -55~+70℃ |
| Operating Humidity | 5~95 |
- Cable Assembly
RG8,30M is usually used for connecting Receiver antenna S440 and lighting-protector. You
can calculate the length according to your actual environment, also 60m or 90 be selected.
Connector :N Male-N Male.
The attenuation value is 0.2 dB/m; Thus, you can assess the system, or contact with our sales to select proper configuration.

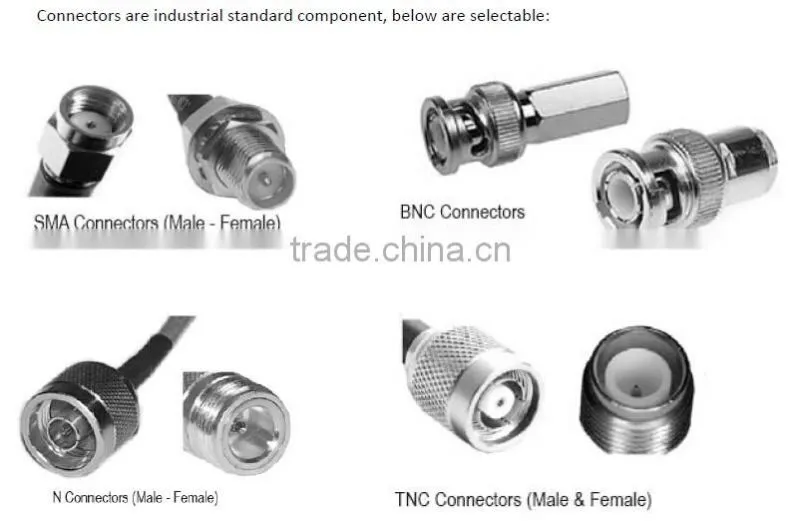

- Select Connector
Warranty:
1. 1 years warranty for the products.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
GPS repeater GNSSRK-8 fault location and remove:
First: Check the adapter of RGA30-SV8, whether it connects to the power supply and power-up to
RGA30-SV8 . You can test the voltage between input axis and shell, if it’s about 5V,power supply was ok,RGA30-SV8 was also works ok. Or else, check the power socket to assure the contact was ok.
Second: If it’s 5V at the input of Gain Controller, you need to check whether the fixing is steady between GRA10 and the cable.
Third: If the below two step were ok, please check the outdoor antenna S440.You can check the voltage between axis of the cable connector and the outer shielding layer to make sure it’s 5V.If no voltage, the circuit has fault, please contact our technical support. If 5V,the antenna S440 can be suspected.(In fact, this case hasn’t appear in our engineering projects.
