GPS Antennas Multi-system Passive Antenna

• Gain

*Passive : 3dBi

• Frequency: 1.15-1.8GHz
• Typical Applications:

*GPS, GLONASS, BEIDOU2 signal indoor coverage, etc

*Passive antenna

[Antenna Specifications]

• Frequency Range [MHz]           1.15-1.8GHz
• Gain 3 dBi
• Polarization                             Vertical polarization
• Input(VSWR)                      ≤1.45
• Intermodulation                      <-110dBm
• Input impendence                   50Ω
• Max power                             50W
• Connector                              N(Female), SMA(Female), TNC (female), etc.

[Mechanical Specifications]

• Lightning Protection                 DC Ground
• Radome material                      UV-Protected ABS
• Dimension [mm]                      Ø186×85
• Weight [g]                             400
• Operating Temperature [℃]     -40~+60
• Limit Temperature [℃]            -55~+70
• Operating Humidity [%]           5~95
• Circumstance                          Indoor

[Installation Tips]

1. Please select the appropriate location on the ceiling drilling, pore size of which about 20MM, then tighten the nut fixing the antenna on the ceiling;
2. The thickness of the ceiling don’t exceed 20MM;
3. The antenna don’t close to the fire .

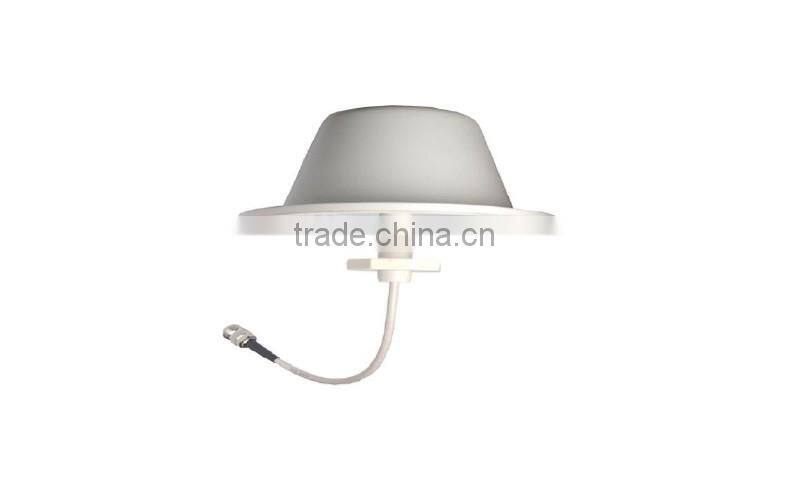

[Product details]

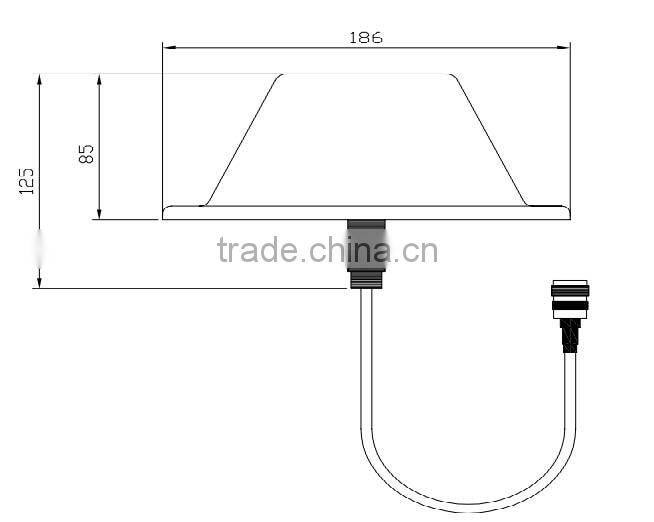

[Product Specifications]

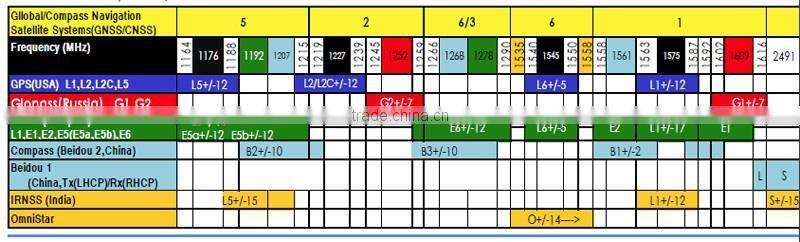

[Frequency reference table]

Warranty:
1. 1years warranty for the products.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead
