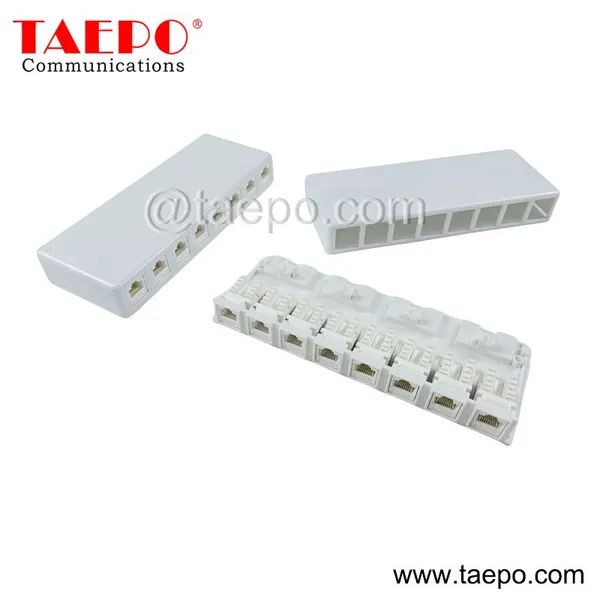

Sample Free CAT5E RJ45 8P8C UTP 8 Port Surface Mount Box Compatible With Both UTP and STP Keystone Jack

    Service & Certificate

    Descriptions

A CAT5E RJ45 8P8C UTP 8 port surface mount box is a type of networking equipment designed to house multiple network connections in a surface-mounted configuration.

Here's a breakdown of compatibility:

CAT5E: This indicates that the box is designed to support CAT5E Ethernet cables, which are commonly used for Ethernet networking up to 1 Gigabit per second (Gbps) speeds.

RJ45 8P8C: This refers to the connector type used for Ethernet connections. RJ45 connectors have 8 positions (8P) and 8 contacts (8C), which is standard for Ethernet connections.

UTP (Unshielded Twisted Pair): The box supports UTP cables, which are the most common type of Ethernet cable. UTP cables use twisted pairs of wires to reduce electromagnetic interference.

8 Port: It provides space for 8 RJ45 ports, allowing multiple Ethernet connections to be terminated and managed from a single surface-mounted box.

Surface Mount Box: This means the box is designed to be mounted directly onto a flat surface, such as a wall or desktop, rather than being recessed into the wall (like the back box discussed earlier).

Compatible with Both UTP and STP Keystone Jack: This indicates that the box can accommodate both UTP (Unshielded Twisted Pair) and STP (Shielded Twisted Pair) keystone jacks. Keystone jacks are modular connectors used to terminate Ethernet cables within the box. UTP and STP jacks differ in terms of shielding: STP provides additional shielding against electromagnetic interference compared to UTP.

    Main Features

• Compatibility: The box can accept either UTP or STP keystone jacks, giving flexibility in the choice of Ethernet cables depending on the installation requirements.

• Application: It is suitable for organizing and connecting multiple Ethernet devices in environments where surface mounting is preferred or necessary.

• Networking Standard: Designed to meet the CAT5E standard, ensuring compatibility with CAT5E Ethernet cables and supporting data transmission speeds up to 1 Gbps

  In summary, a CAT5E RJ45 8P8C UTP 8 port surface mount box with compatibility for both UTP and STP keystone jacks is a versatile solution for organizing and managing Ethernet connections in various networking setups, providing flexibility and ease of installation on surfaces.

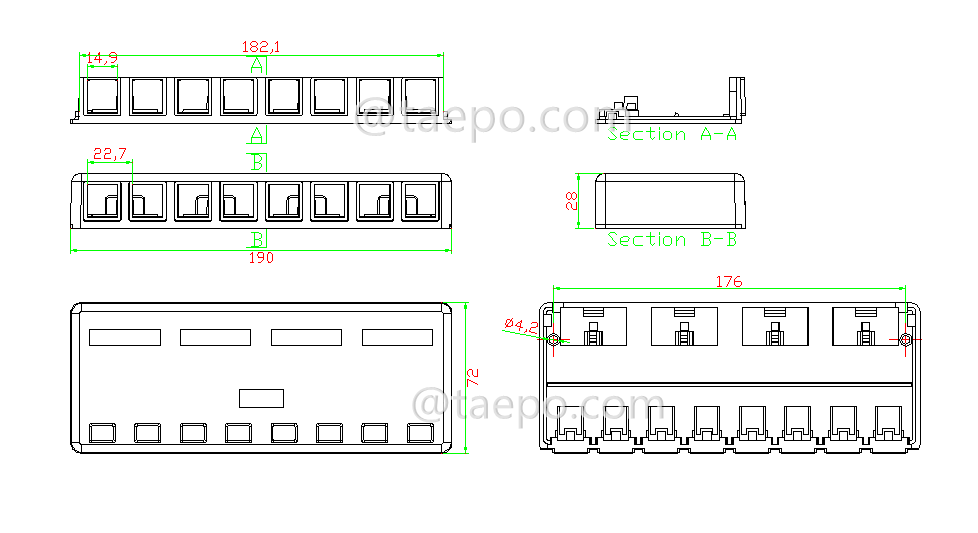

    Schematic Diagrams

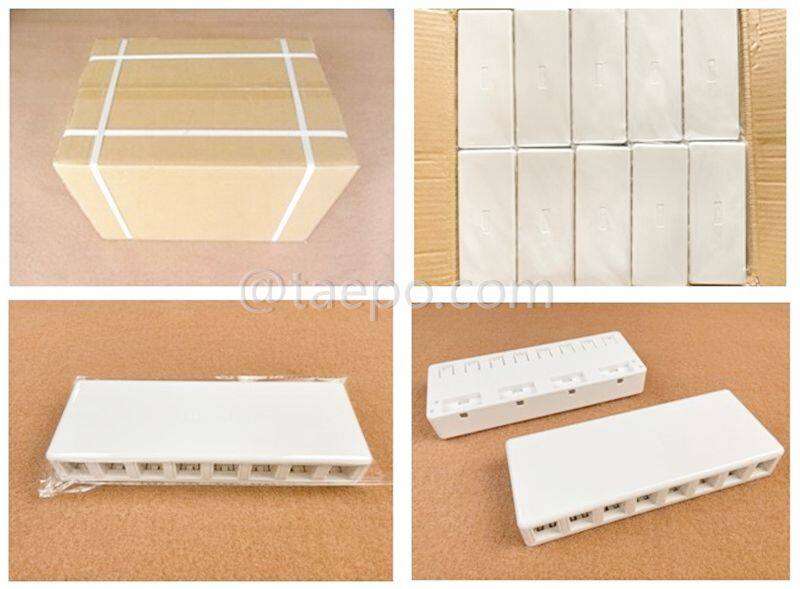

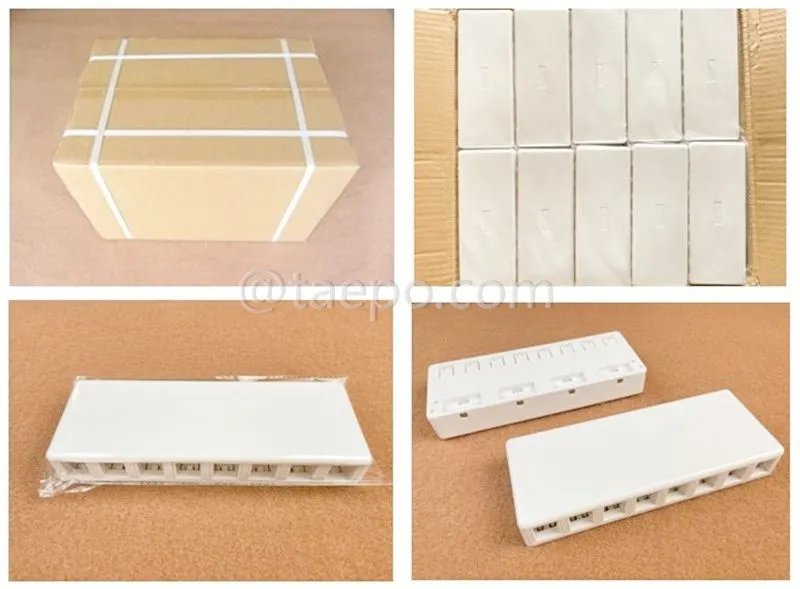

    Packing Pictures

    Order Data
