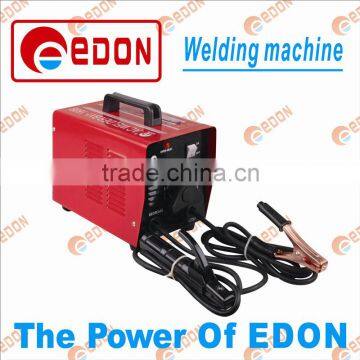

BX1-B Portable AC Arc welding machine
Negotiable
/ Set
10 Sets(Min.Order)
- NINGBO/SHANGHAI
- T/T D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | eDON | Model Number | BX1-80/100/130/160/180/200-B | |
| Motor Type | Other | Voltage | 220V/380V | |
| Certification | CE | Warranty | 12 MONTHS | |
| After-sales Service Provided | No overseas service provided |
Product Description
Specifications
Moving coil type transformer;suitable for 380V/220V AC supply.1. Moving coil type transformer;suitable for 380V/220V AC supply.
2. Compact, light, easy to carry, and suitable for mobile,go out and small-scale construct and busywork
3. Provided with automatic temperature protector and air-cooling unit, and high efficiency and safety.
4. Suitable for welding low carbon steel. Low alloy steel, et.
Model | Rated input voltage(V) | Rated input capacity (KVA) | No-load voltage (V) | Rated welding current(A) | Current adjusting range (A) | Rated duty cycle (%) | Weight(KG) | Dimension(mm) |
BX1-80B | 1 PH 220-240 | 4 | 48 | 80 | 45-80 | 10 | 13 | 360*280*260 |
BX1-100B | 1 PH 220-240 | 5 | 48 | 100 | 45-100 | 10 | 14 | 360*280*260 |
BX1-140B | 1 PH 220-240 | 6.4 | 48 | 140 | 50-140 | 10 | 15 | 455*205*320 |
BX1-160B | 1 PH 220-240 | 8 | 48 | 160 | 50-160 | 10 | 17 | 455*205*320 |
BX1-180B | 3 PH 380V/220 | 9.6 | 50 | 180 | 55-180 | 10 | 18 | 455*220*320 |
BX1-200B | 3 PH 380V/220 | 10.7 | 50 | 200 | 60-200 | 10 | 19 | 455*220*320 |
