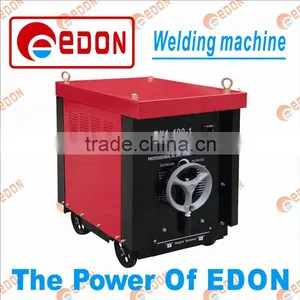

BX1-1 SERIES AC ARC WELDING MACHINE

BX1-1 SERIES AC ARC WELDING MACHINE thumbnail-1
BX1-1 SERIES AC ARC WELDING MACHINE photo-1
US$ 51 - 210 MOQ: 20 Sets
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
EDON
Contact Supplier Request Quote Chat Now
Zhejiang Yidun Mechanical & Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name EDON
Model Number BX1-200/250/315/400/500/630-1
Arc Current 200-630A
Pulse Frequency 50/60HZ
Pilot Arc Current 200-630A
Rated Duty Cycle 30%
Motor Type Other
Dimensions 635*460*725mm
Usage welding
Voltage 380V
Power(W) 12.2-50KVA
Certification CE

1. Single phase moving core type and forced  air cooling structure.

2. Stable arc, less spatter and deep penetration can ensure welding quality well.

3. Simple structure, high efficiency, easy to operate and mantanence.

4. Suitable for welding ferrous metal workpiece with general AC eletrode.



ITEM

BX1-200-1

BX1-250-1

BX1-315-1

BX1-400-1

BX1-500-1

BX1-630-1

Iput voltage(V)

380

380

380

380

380

380

Frequency(hz)

50

50

50

50

50

50

Phase

Single phase

Single phase

Single phase

Single phase

Single phase

Single phase

Current range(A)

50-200

50-250

65-315

80-400

100-500

125-630

Rated input capacity(KVA)

12.2

15.8

23.2

30.3

39.5

50.4

No-load voltage(V)

58

60

70

72

75

76

Duty cycle(%)

35

35

35

35

35

35

Usable electrodes(mm)

2-3.2

2-4

2.5-5

2.5-5.8

3.2-6

3.2-8

Protection class

IP21S

IP21S

IP21S

IP21S

IP21S

IP21S

Insulation class

F

F

F

F

F

F

N.w/G.w(Copper)(KG)

61/70

67/72

75/85

87/97

101/115

121/135

N.w/G.w(AL)(KG)

60/68

65/74

70/80

81/91

92/105

110/123

Carton size(mm)

600*390*595

600*390*595

635*460*725

635*460*725

685*480*730

685*480*730





Company Information

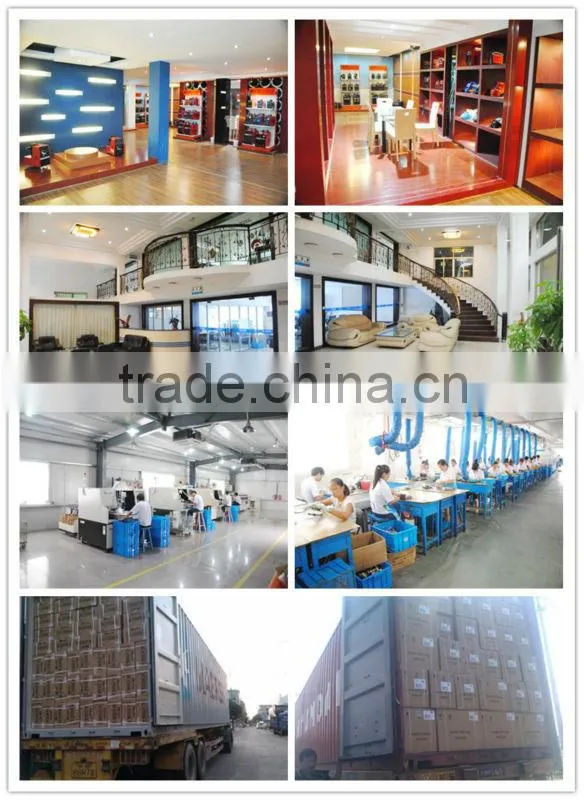

Zhejiang Edon Mechanical & Electrical Co., Ltd., founded in September 2001, is a high-tech enterprise integrating R&D, production, sales and service of electric welders, air compressors and single-phase and three-phase asynchronous motors. The three production bases have a total floor area of 50,000 square meters. There are 200-odd sets of high-precision production and inspection equipment and more than 600 employees including over 20 senior managers, 15 engineers and over 30 technicians. The production capacity of electric welders takes the lead. Our company annually yields more than 400,000 inverter welding machines and DC welders and over 150,000 AC arc welders. There is a complete variety of electric welders including ZX7 manual arc welding machines, TIG argon arc welding machines, CUT plasma cutting machines, WSE AC and DC argon arc welding machines, NBC carbon dioxide gas shielded welding machines and moving-iron and tapped AC arc welding machines. Our products are used by customers in six continents except Antarctica and the independent brand occupies more than 80% market share.
Our company always insists on the policy of “People Foremost, Science and Technology Constitute a Primary Productive Force” and the tenet of “Survival by Quality, Customer by Credit”, and wins favor of customers. The production capacity is doubled year by year. In 2011, our company was awarded Wenling “Key Industrial Enterprise” and “Enterprise with Standard Import and Export Trade”. Through the efforts made in 2011 and the first half of 2012 coupled with the support and cooperation of dealers, our company responds to the national call, and eliminates the backward and high energy-consuming products. The high-efficiency and energy-saving inverter DC welders account for more than 60% of our products. Our company will grasp market trend, keep up with the industry development trend, increase the core competitiveness, carry out the strategies of “standardization”, “systematization” and “internationalization”, promote development and develop into a large modern enterprise with excellent service, the modern enterprise system and harmonious and sustainable development. Guided by the concept of “Concerted Efforts, Success Sharing, Sustainable Operation”, our company serves the welder industry by virtue of superior-quality products and solid technical force. We will become an outstanding enterprise in the industry through the unremitting efforts of all staff. Welcome new and old customers at home and abroad to visit for cooperation and brilliance.
Our company will be your best choice!





Packaging & Shipping

Packaging: carton

Delivery time:35days
